Schneider Electric

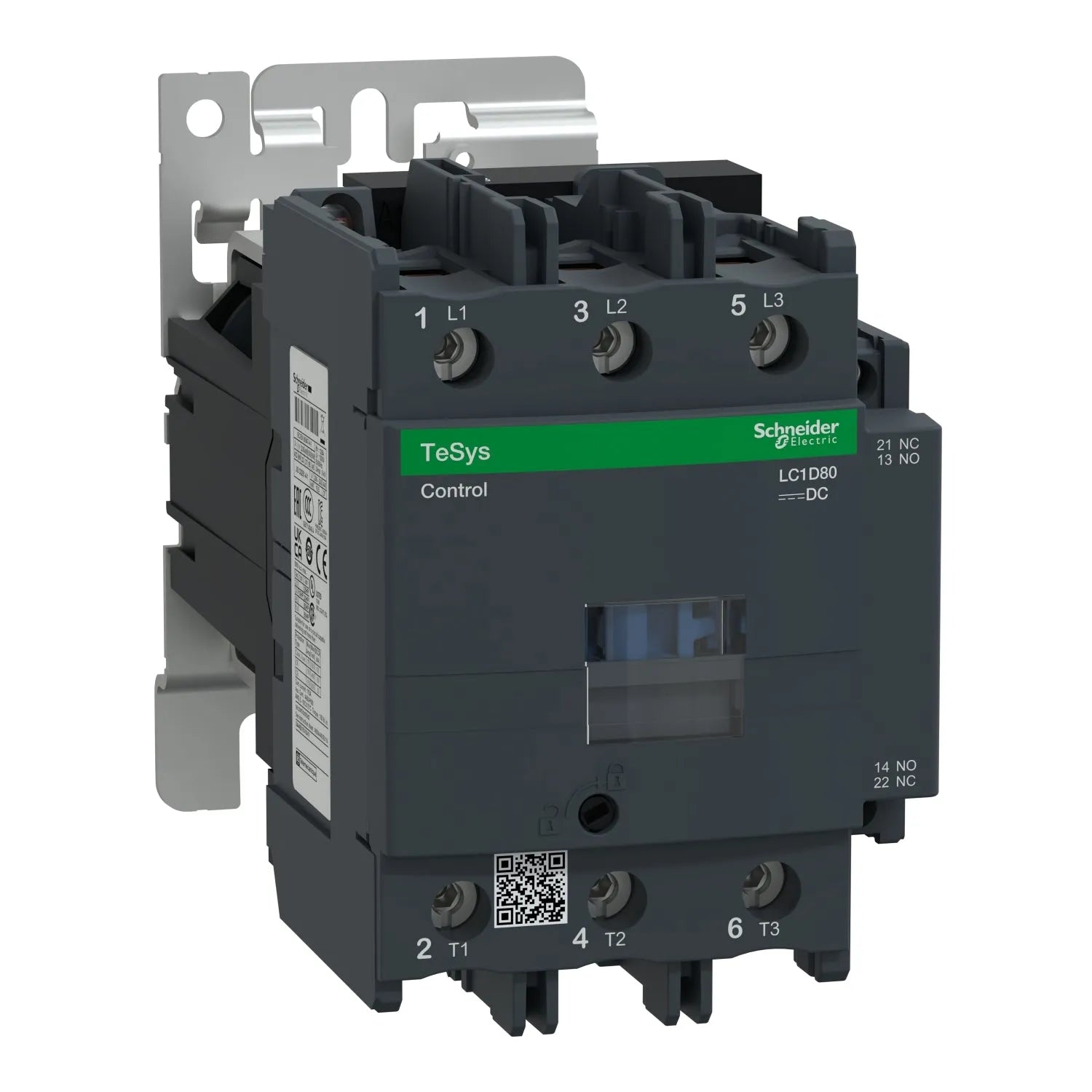

Schneider LC1D80BD TeSys D Contactor, 3P (3 NO) AC-3 80A 24 V DC Coil

Name: Schneider LC1D80BD TeSys D Contactor, 3P (3 NO) AC-3 80A 24 V DC Coil
Brand: Schneider Electric
SKU: LC1D80BD
Price: 120000.0 PKR
Availability: InStock

Product SKU:LC1D80BD

Be the first to review

Rs.120,000.00 PKR

Sale Sold out

people bought this recently

Product variants

About This Product

Key Features

Range: TeSys Deca
Component Type: Contactor
Device short name: LC1D
Poles description: 3 Pole
Net weight: 2.59 kg
Po... Show All Key Features

Product Specifications

Range of product	tesys deca
component type	contactor
device short name	lc1d
contactor application	motor control / resistive load

Product Details

Schneider LC1D80BD 3P 80A Magnetic Contactor price in Pakistan is Rs 120,000/-.

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).v

User Manual

Schneider LC1D80BD TeSys D Contactor, 3P (3 NO) AC-3 80A 24 V DC Coil.pdf

Powerhouse Benefits

Invoice Available
Secure Payments
365 Days Help Desk

Return & Warranty Policy

Upto 3 Days Returnable
Missing Product
Wrong Product
Damaged Product

Schneider LC1D80BD TeSys D Contactor Price in Pakistan

Looking to purchase Schneider LC1D80BD TeSys D Contactor, 3P (3 NO) AC-3 80A 24 V DC Coil in bulk?

Purchase item in bulk quantity
Get at best price for your business

Reviews & Ratings

Update Qty

Related Categories

Automation & process control Industrial automation & circuit protection Industrial contactors Magnetic contractors Schneider electric

Range of product	tesys deca
component type	contactor
device short name	lc1d
contactor application	motor control / resistive load
poles description	3p
net weight	2.59 kg
thermal current ampere	125a
capacity	37 / 50 kw (hp)
rated operational voltage [ue]	power circuit
rated operational current [ie]	125
control circuit voltage [uc]	24 v dc
compatibility code	lc1d
pole contact composition	3 no
contact compatibility	m9
protective cover	with
conventional free air thermal current [ith]	125 a (at 60 °c) for power circuit / 10 a (at 60 °c) for signalling circuit
rated breaking capacity	1100 a at 440 v for power circuit conforming to iec 60947
average impedance	0.8 mohm - ith 125 a 50 hz for power circuit
overvoltage category	iii
pollution degree	3
mechanical durability	4mcycles
control circuit type	dc standard
operating time	42.5...57.5 ms closing / 16...24 ms opening
maximum operating rate	3600 cyc/h 60 °c
auxiliary contact composition	1 no + 1 nc
signalling circuit frequency	25...400 hz
minimum switching voltage	17 v for signalling circuit
minimum switching current	5 ma for signalling circuit
insulation resistance	> 10 mohm for signalling circuit
mounting support	plate / rail
operating altitude	0...3000 m
fire resistance	850 °c conforming to iec 60695-2-1
flame retardance	v1 conforming to ul 94
