Range of product
|
easy tesys control
|
|
component type
|
contactor
|
|
device short name
|
lc1e
|
|
contactor application
|
resistive load / motor control
|

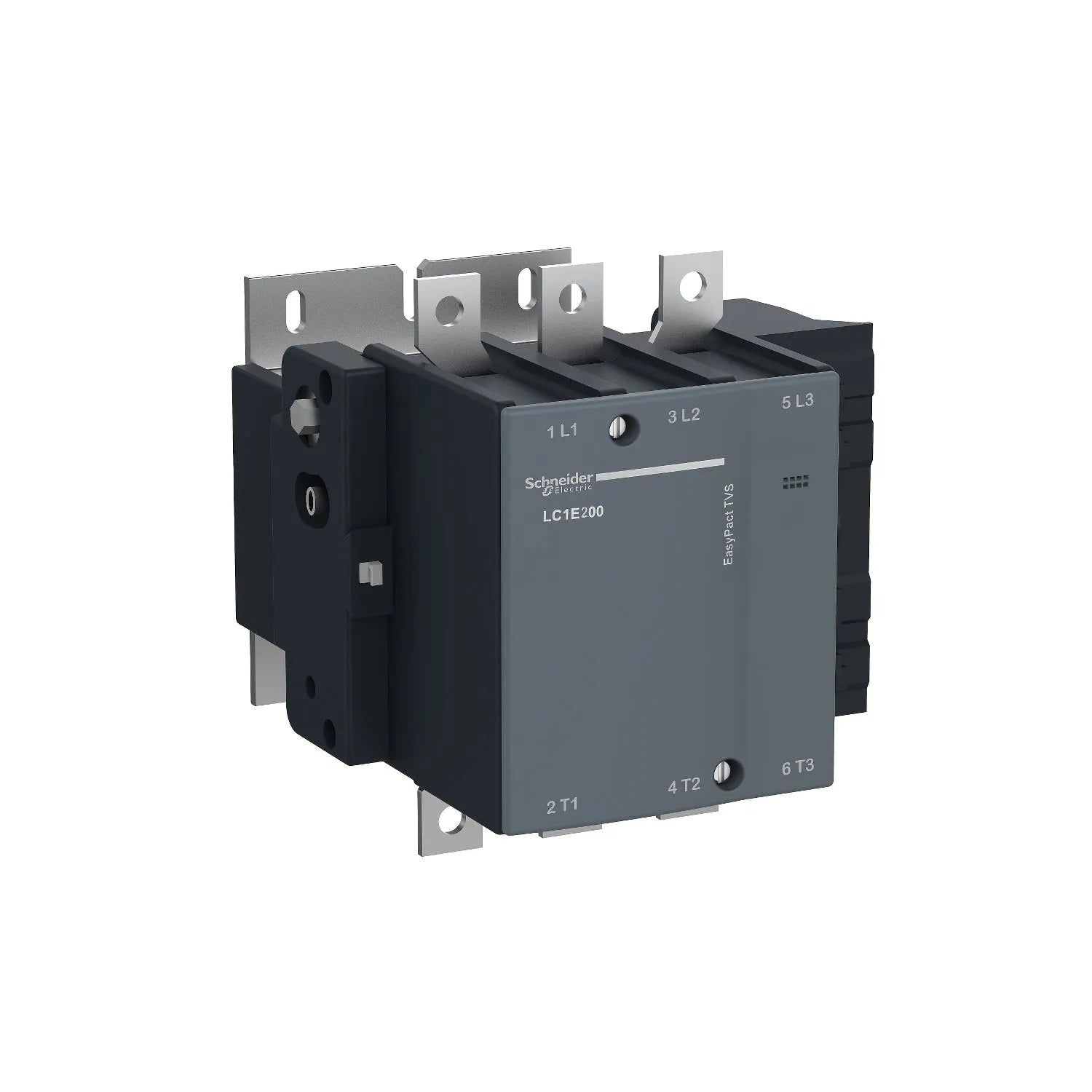

EasyPact TVS contactor 3 poles for motor applications up to 250A 140kW@440V. It provides a 220V 50Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 168.5mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.7 Mcycles electrical durability AC-3 and 5 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
