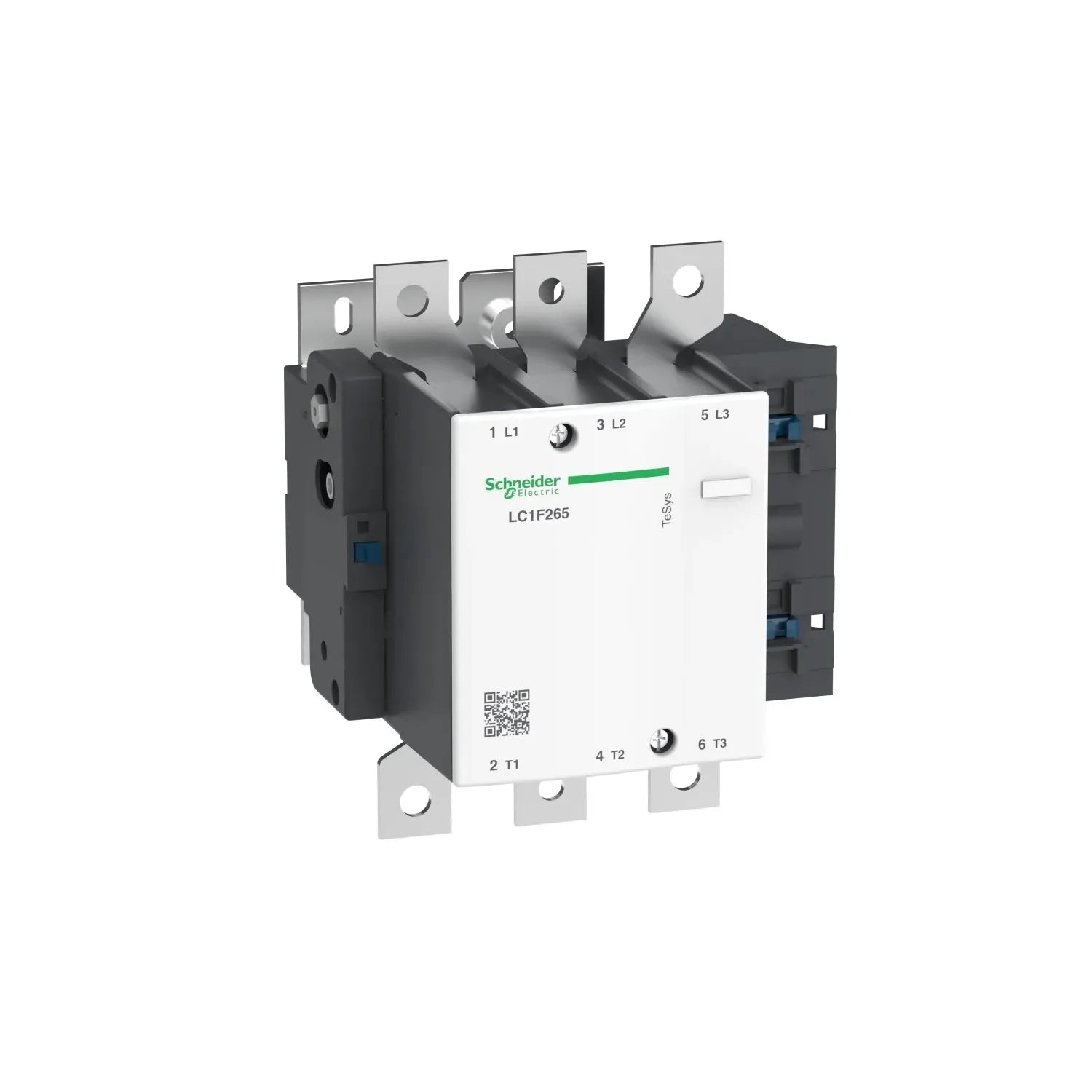

TeSys F contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
<= 1000 v ac-1 / <= 690 v ac-3 / <= 690 v ac-4 / <= 460 v dc
rated operational current [ie]
350 a (at <40 °c) at <= 440 v ac ac-1 / 265 a (at <55 °c) at <= 440 v ac ac-3
control circuit voltage [uc]
220 v ac 40...400 hz
net weight
7.44 kg
compatibility code
lc1f
pole contact composition
3 no
conventional free air thermal current [ith]
50 a (at 40 °c)
rated breaking capacity
2120 a conforming to iec 60947-4-1
average impedance
0.3 mohm - ith 350 a 50 hz
overvoltage category
iii
mechanical durability
10 mcycles
control circuit type
ac at 40...400 hz
heat dissipation
8 w
operating time
40...65 ms closing / 100...170 ms opening
mounting support
plate
operating altitude
3000 m without derating
Product Details
TeSys F contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
