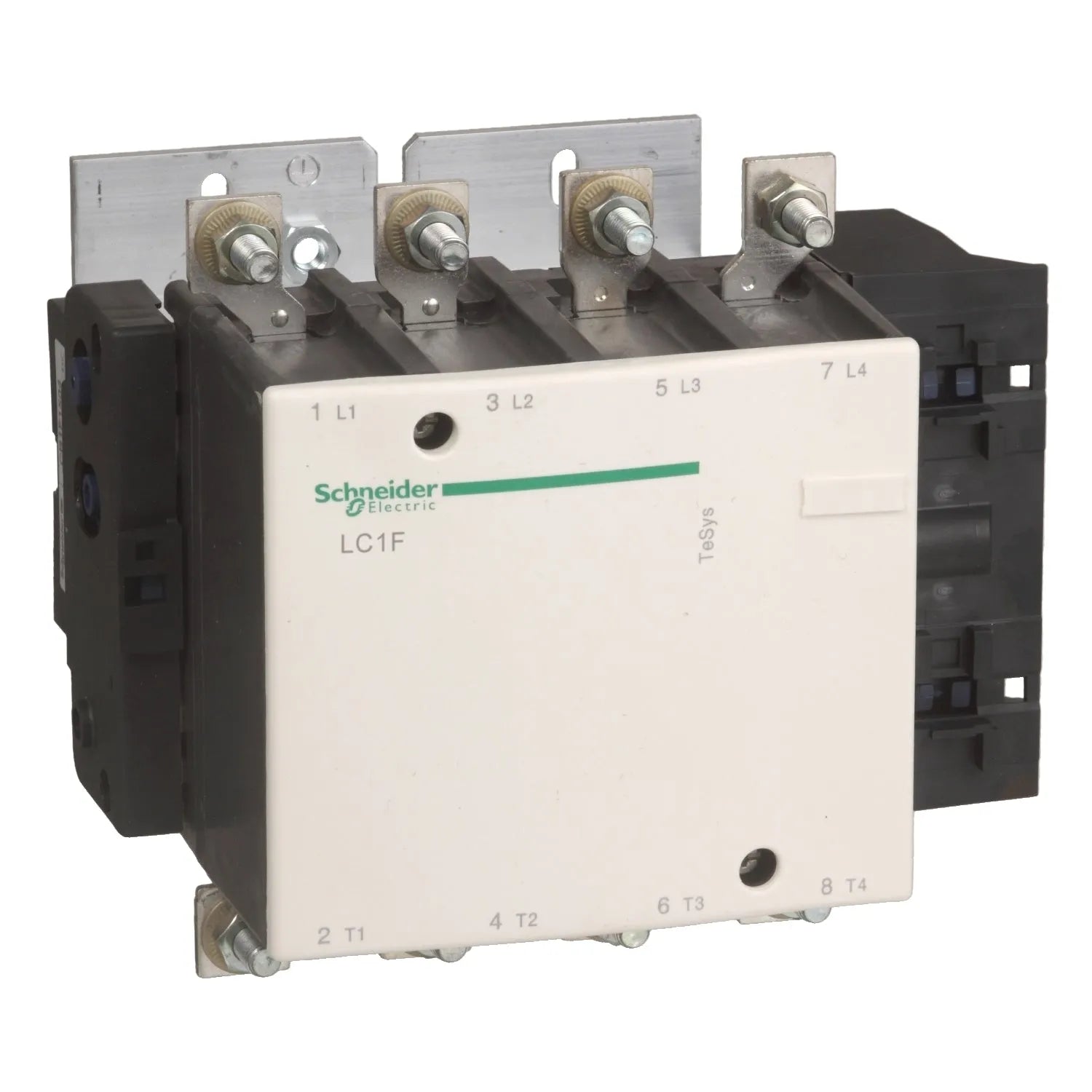

Schneider LC1F3304 4P 350 A Magnetic Contactor price in Pakistan is Rs 310,000/-.
TeSys F contactor, 4 poles (4NO), 400A/1000V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
24...1000 v ac 40...400 hz with lx1/lx9 coil / 24...460 v dc with lx4 coil / 100...250 v ac 50/60 hz with lxe coil / 100...380 v dc with lxe coil
compatibility code
lc1f
pole contact composition
4 no
conventional free air thermal current [ith]
400 a (at 40 °c)
rated breaking capacity
2640 a conforming to iec 60947-4-1
average impedance
0.28 mohm - ith 400 a 50 hz
overvoltage category
iii
operating time
40...65 ms closing for with lx1/lx9 coil / 100...170 ms opening for with lx1/lx9 coil / 40...50 ms closing for with lx4 coil / 40...65 ms opening for with lx4 coil / 40...80 ms closing for with lxe coil / 6...54 ms opening for with lxe coil
maximum operating rate
2400 cyc/h 55 °c
mounting support
plate
operating altitude
3000 m without derating
Product Details
Schneider LC1F3304 4P 350 A Magnetic Contactor price in Pakistan is Rs 310,000/-.
TeSys F contactor, 4 poles (4NO), 400A/1000V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
