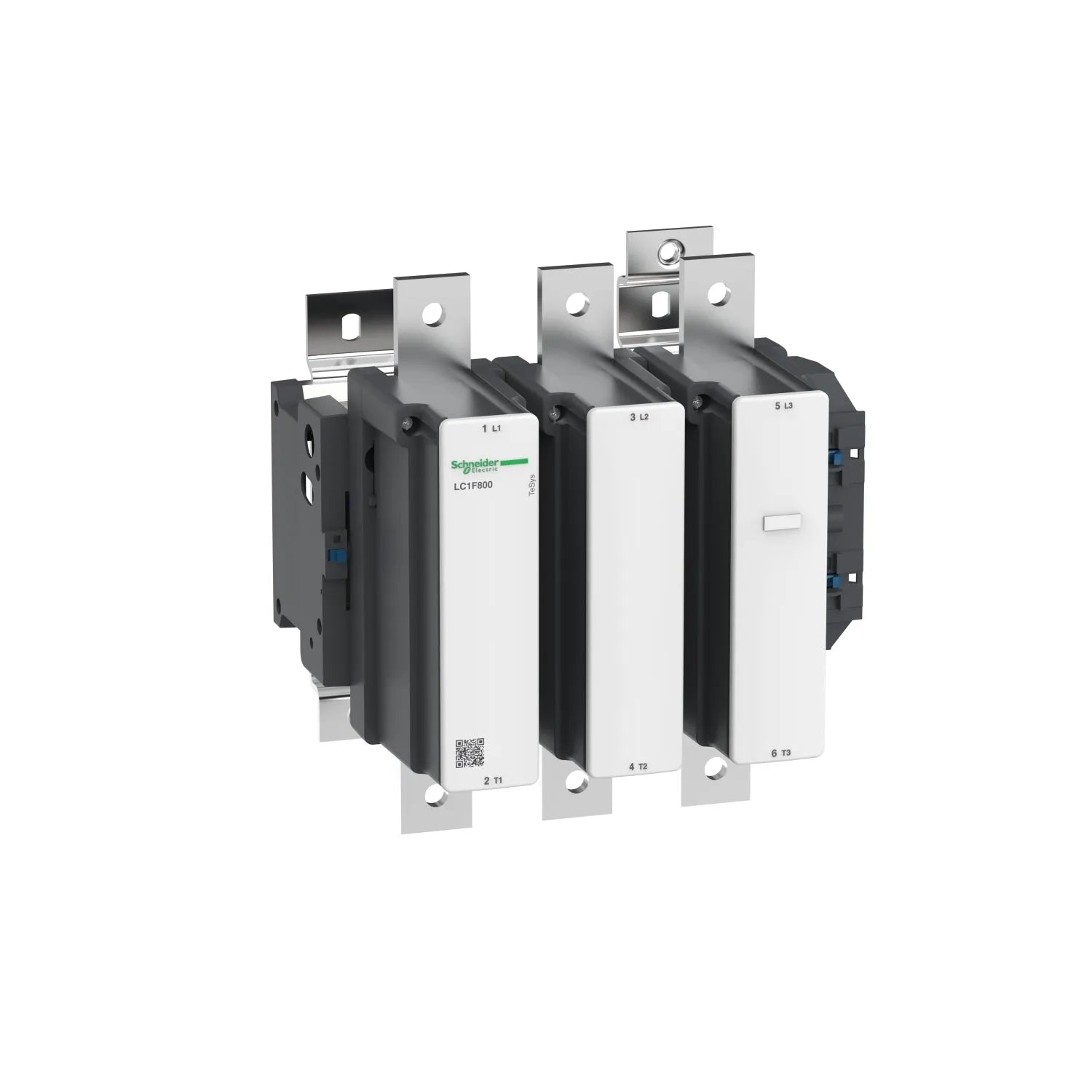

Schneider LC1F800 3P 800 A Magnetic Contactor price in Pakistan is Rs 1,090,000/-.
TeSys F contactor, 3 poles (3NO), 800A/1000V AC-3, for motor applications up to 450kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHS/REACh).
1000 a (at <40 °c) at <= 440 v ac ac-1 / 800 a (at <55 °c) at <= 440 v ac ac-3
control circuit voltage [uc]
110...400 v ac 40...400 hz with lx1/lx9 coil / 110...400 v dc with lx4 coil / 100...250 v ac 50/60 hz with lxe coil / 100...380 v dc with lxe coil
net weight
18.75 kg
compatibility code
lc1f
pole contact composition
3 no
conventional free air thermal current [ith]
000 a (at 40 °c)
rated breaking capacity
6400 a conforming to iec 60947-4-1
average impedance
0.12 mohm - ith 1000 a 50 hz
overvoltage category
iii
mechanical durability
5 mcycles
heat dissipation
25 w / 2.2…5.5 w
operating time
60...80 ms closing for with lx1/lx9 coil / 160...180 ms opening for with lx1/lx9 coil / 60...80 ms closing for with lx4 coil / 40...50 ms opening for with lx4 coil / 40...80 ms closing for with lxe coil / 6...54 ms opening for with lxe coil
/ mounting support
plate
operating altitude
3000 m without derating
Product Details
Schneider LC1F800 3P 800 A Magnetic Contactor price in Pakistan is Rs 1,090,000/-.
TeSys F contactor, 3 poles (3NO), 800A/1000V AC-3, for motor applications up to 450kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHS/REACh).
