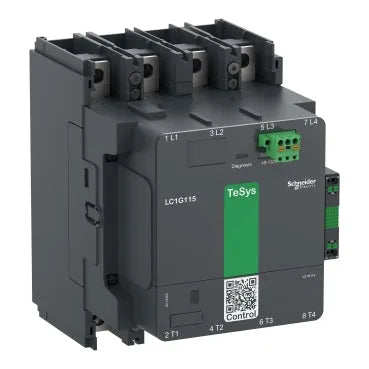

Schneider LC1-G2254 TeSys Giga 4 pole (4NO) AC-1 440V 330A AC/DC Coil
  • Schneider LC1-G2254 TeSys Giga 4 pole (4NO) AC-1 440V 330A AC/DC Coil
Schneider LC1-G2254 TeSys Giga 4 pole (4NO) AC-1 440V 330A AC/DC Coil
Availability: In Stock

Schneider LC1-G2254 TeSys Giga 4 pole (4NO) AC-1 440V 330A AC/DC Coil

Product SKU: LC1G2254KUEN
Rs.310,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range TeSys
Product range TeSys Giga
Product/component type Contactor
Device short name LC1G
Contactor application Power switching
Utilisation category AC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
Poles description 4P
[Ue] Rated operational voltage ≤1000 V AC 50/60 Hz, ≤460 V DC
[Ie] Rated operational current 225 A (at <60°C) @ ≤440 V AC-3, 330 A (at <40°C) @ ≤1000 V AC-1
[Uc] Control circuit voltage 100-250 V AC 50/60 Hz, 100-250 V DC
Control circuit voltage limits Operational: 0.8 Uc Min - 1.1 Uc Max (at <60°C) Drop-out: 0.1 Uc Max - 0.45 Uc Min (at <60°C)
Complementary [Uimp] Rated impulse withstand voltage: 8 kV
Overvoltage category III
[Ith] Conventional free air thermal current 330 A (at 40°C)
[Icw] Rated short-time withstand current 1.8 kA - 10 s 1.0 kA - 30 s 0.85 kA - 1 min 0.56 kA - 3 min 0.44 kA - 10 min
Associated fuse rating 250 A aM @ ≤440 V (motor) 200 A aM @ ≤690 V (motor) 400 A gG @ ≤690 V
Average impedance 0.00015 Ohm
[Ui] Rated insulation voltage 1000 V
Power dissipation per pole 20 W AC-1 (Ith 330 A) 8 W AC-3 (Ith 225 A)
Compatibility code LC1G
Pole contact composition 4 NO
Auxiliary contact composition 1 NO + 1 NC
Irms rated making capacity 2720 A @ 440 V
Coil technology Built-in bidirectional peak limiting
Safety reliability level B10d = 400,000 cycles (contactor with nominal load per EN/ISO 13849-1)
Mechanical durability 8 Mcycles
Inrush power 540 VA (50/60 Hz AC) 380 W (DC)
Hold-in power consumption 12.4 VA (50/60 Hz AC) 7.8 W (DC)
Operating time 40-70 ms (closing) 15-50 ms (opening)
Maximum operating rate 600 cyc/h (AC-3, AC-3e) 300 cyc/h (AC-1)
Connections - terminals Power circuit: Bar 2 - busbar (25×6 mm), lugs-ring terminals (1×185 mm²)
Control circuit Push-in 0.2-2.5 mm² (solid stranded without cable end), 0.25-2.5 mm² (flexible with cable end)
Connection pitch 35 mm
Mounting support Plate
Standards EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 UL 60335-1
UL 60335-2-40 Annex JJ
Product certifications CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
Tightening torque 18 N·m
Dimensions Height: 193 mm Width: 143 mm Depth: 193 mm Net weight: 4.2 kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider LC1-G2254 TeSys Giga 4 pole (4NO) AC-1 440V 330A AC/DC Coil


TeSys Giga high power contactor, 4 poles (4 NO) for category AC-1 applications up to 330A @440V. It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 255mm x 143mm x 175mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.
