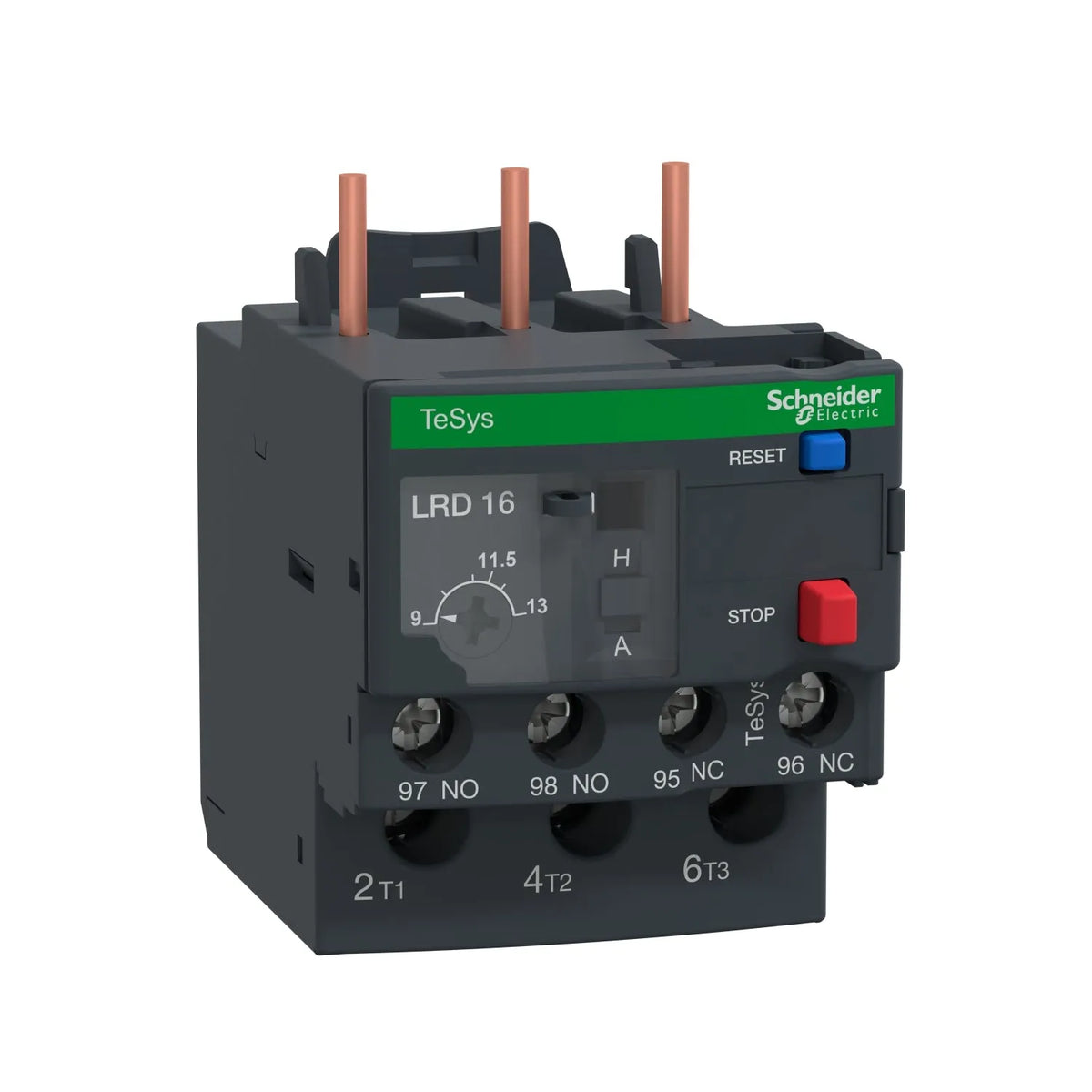

Schneider LRD16 TeSys Deca Thermal Overload Relay - 9-13A
Availability: In Stock

Schneider LRD16 TeSys Deca Thermal Overload Relay - 9-13A

Product SKU: LRD16
Rs.9,500

Safe Delivery

Quick & safe nation wide delivery

1 Year Warranty

Reliable 1-year protection

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Offer & Coupon

Get Flat Rs 300 Off on HIMEL Min Cart Value Rs 4500

Specifications

Device short name LRD
Relay Application Motor protection Network type: DC / AC
Thermal overload class Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range 9…13 A
Rated Insulation Voltage [Ui] Power circuit; 600 V conforming to CSA / Power circuit; 600 V conforming to UL / Power circuit; 690 V conforming to IEC 60947-4-1
For Use wIth Contactors LC1 D12 ~ D32
Network Frequency 0...400 Hz
Mounting support Plate, with specific accessories, Rail, with specific accessories, Under contactor
Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition 1 NO + 1 NC
Conventional Free air thermal current [Ith] 5 A for signalling circuit
Permissible current 1.5 A at 240 V AC-15 for signalling circuit / 0.1 A at 250 V DC-13 for signalling circuit
Rated Operational Voltage[Ue] 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Associated fuse rating 4 A gG for signalling circuit, 4 A BS for signalling circuit
Rated impulse withstand voltage [Uimp] 6 kV
Phase failure sensitivity Tripping current 130 % of Ir on two-phase, the last one at 0
Control type Red push-button stop, Blue push-button reset
Temperature compensation -20…60 °C
Climatic withstand Conforming to IACS E10
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -20…60 °C without derating conforming to IEC 60947-4-1
Ambient Air Temperature for Storage -60…70 °C
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations 6 Gn IEC 60068-2-6, Shocks 15 Gn for 11 ms IEC 60068-2-7
Dielectric strength 1.89 kV at 50 Hz conforming to IEC 60947-1

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider LRD16 TeSys Deca Thermal Overload Relay - 9-13A


TeSys LRD thermal overload relay, 13A/690V, thermal setting range 9-13A, tripping class 10A, for protection of 3-phase motors 5.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for the simulation of tripping, reset, and stop buttons, a flag indicator, and 2 auxiliary contacts 1NO+1NC for fault signaling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D12-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
