Schneider Electric

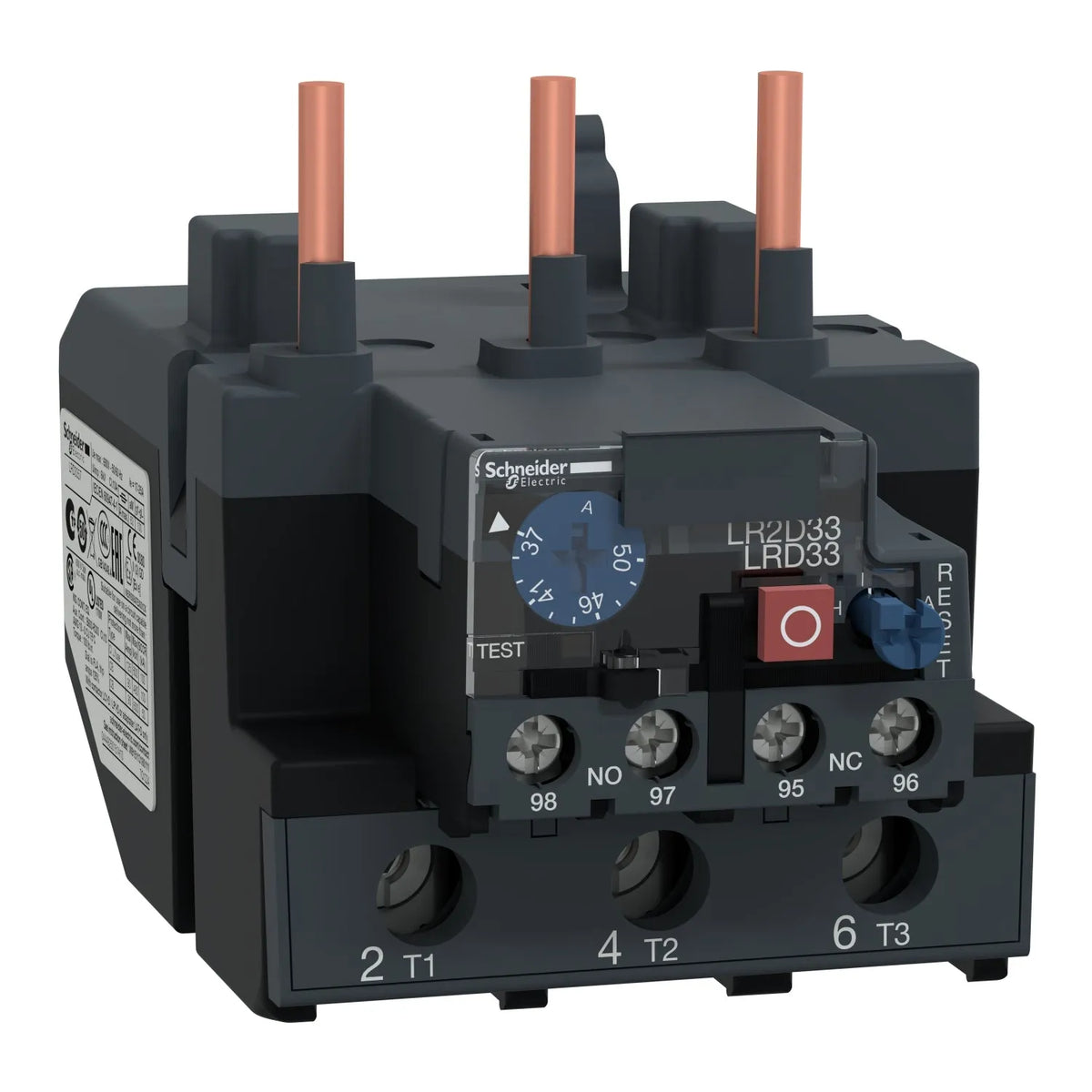

Schneider LRD3357 TeSys Deca Thermal Overload Relay - 37...50 A

Product SKU:LRD3357
Be the first to review
Regular price Rs.33,000.00 PKR
Regular price Sale price Rs.33,000.00 PKR
Sale Sold out
people bought this recently

About This Product

Key Features
  • Range: TeSys
  • Component type: Differential thermal overload relay
  • Device short name: LRD
  • Net weight: 0.51 kg
  • Relay a... Show All Key Features
Product Specifications
Device short name
lrd
relay application
motor protection network type
thermal overload class
class 10a conforming to iec 60947-4-1
thermal protection adjustment range
37…50 a
Show All Specifications
Product Details
Schneider LRD3357 Thermal Overload Relay price in Pakistan is Rs 33,000/-.

TeSys LRD thermal overload relay, 50A/1000V, thermal setting range 37-50A, tripping class 10A, for protection of 3-phase motors 22kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector acting also as a reset button, a trip test button for simulation of tripping, a stop button, a flag indicator, and 2 auxiliary contacts 1NO+1NC for fault signaling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with the use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Read More
