Save Bigger, Shop Smarter: Up to 40% OFF! Dive In!
Range
|
compact
|
product or component type
|
circuit breaker
|
device application
|
distribution
|
number of poles
|
3p
|

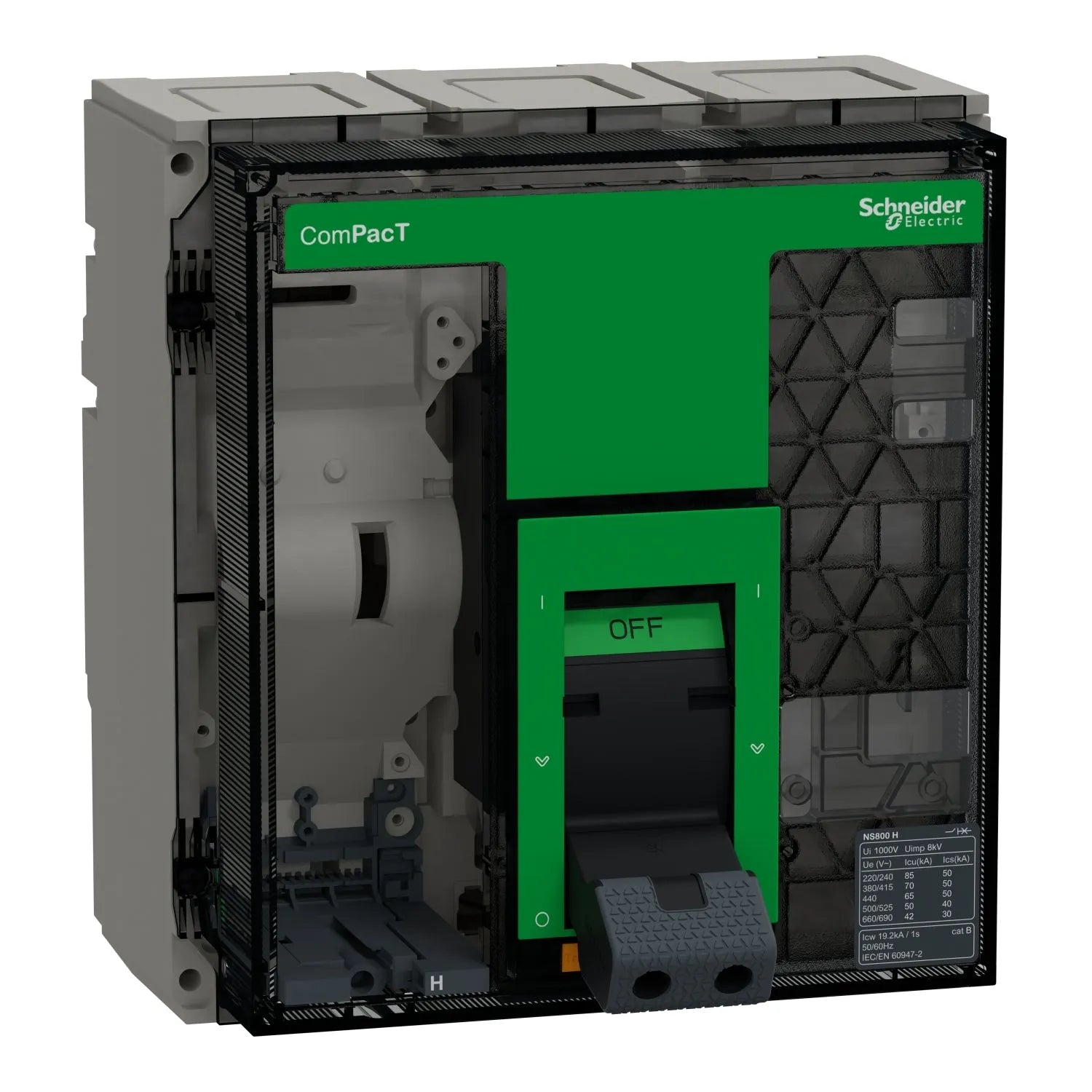

Schneider NS1250H 3P TMD Breaker price in Pakistan is Rs 610,000/-.
This circuit breaker is part of the new generation of ComPacT NS630bN to NS3200 range. ComPacT NS new generation keeps the same performance and comes with a new transparent front cover for auxiliaries visibility and a new toggle with ergonomic touch and optional LED trip status. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This ComPacT NS1250H is a complete 3 poles circuit breaker designed to optimize space and breaking capacity. It is a fixed circuit breaker manually operated. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. The circuit breaker can be manually operated with ON, OFF, or "push to trip" buttons. This product embeds an electronic MicroLogic...
Range
|
compact
|
product or component type
|
circuit breaker
|
device application
|
distribution
|
number of poles
|
3p
|
protected poles description
|
3d
|
(in) rated current up to 65 oc
|
1250 a at 50 oc
|
[ue] rated operational voltage
|
690 v ac 50/60 hz
|
network type
|
ac
|
network frequency
|
50/60 hz
|
suitability for isolation
|
yes conforming to en/iec 60947-2
|
utilisation category
|
category b
|
[icu] rated ultimate short-circuit breaking capacity
|
70 ka
|
icu at 380/415 v ac 50/60 hz conforming to iec 60947-2
|
|
performance level
|
h 70 ka 415 v ac
|
trip unit name
|
micrologic 2.0
|
trip unit technology
|
electronic
|
trip unit protection functions
|
li
|
control type
|
manually operated
|
mounting mode
|
fixed
|
[uij rated insulation voltage
|
800 v ac 50/60 hz conforming to iec 60947-2
|
[uimp] rated impulse withstand voltage
|
8 kv conforming to iec 60947-2
|
[lcw] rated short-time withstand
|
19.2 ka 1 s conforming to iec 60947-2
|
mechanical durability
|
10000 cycles
|
electrical durability
|
2000 cycles at 690 v in / 3000 cycles at 690 v in/2 / 4000 cycles at 440 v in / 5000 cycles at 440 v in/2
|
net weight
|
14 kg
|
standards
|
en/iec 60947-2
|
product certifications
|
iecee cb scheme
|
pollution degree
|
3 conforming to iec 60947
|
ip degree of protection
|
ip40 conforming to iec 60529
|
1k degree of protection
|
ik07 conforming to en 50102
|
ambient air temperature for operation
|
-25...70 oc
|
ambient air temperature for storage
|
-50.. 85 c
|
relative humidity
|
0...95 %
|
operating altitude
|
0...2000 m without derating / 2000 m...5000 m with derating
|
Schneider NS1250H 3P TMD Breaker price in Pakistan is Rs 610,000/-.
This circuit breaker is part of the new generation of ComPacT NS630bN to NS3200 range. ComPacT NS new generation keeps the same performance and comes with a new transparent front cover for auxiliaries visibility and a new toggle with ergonomic touch and optional LED trip status. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This ComPacT NS1250H is a complete 3 poles circuit breaker designed to optimize space and breaking capacity. It is a fixed circuit breaker manually operated. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. The circuit breaker can be manually operated with ON, OFF, or "push to trip" buttons. This product embeds an electronic MicroLogic 2.0 control unit, with a 1250A rating. MicroLogic 2.0 control unit provides adjustable long-time and instantaneous protections (ANSI codes 49/50). This product comes with a variety of optional functions and accessories. The dimensions are 327mm (Height) x 210mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS new generation is part of Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with green packaging and green partnerships.
