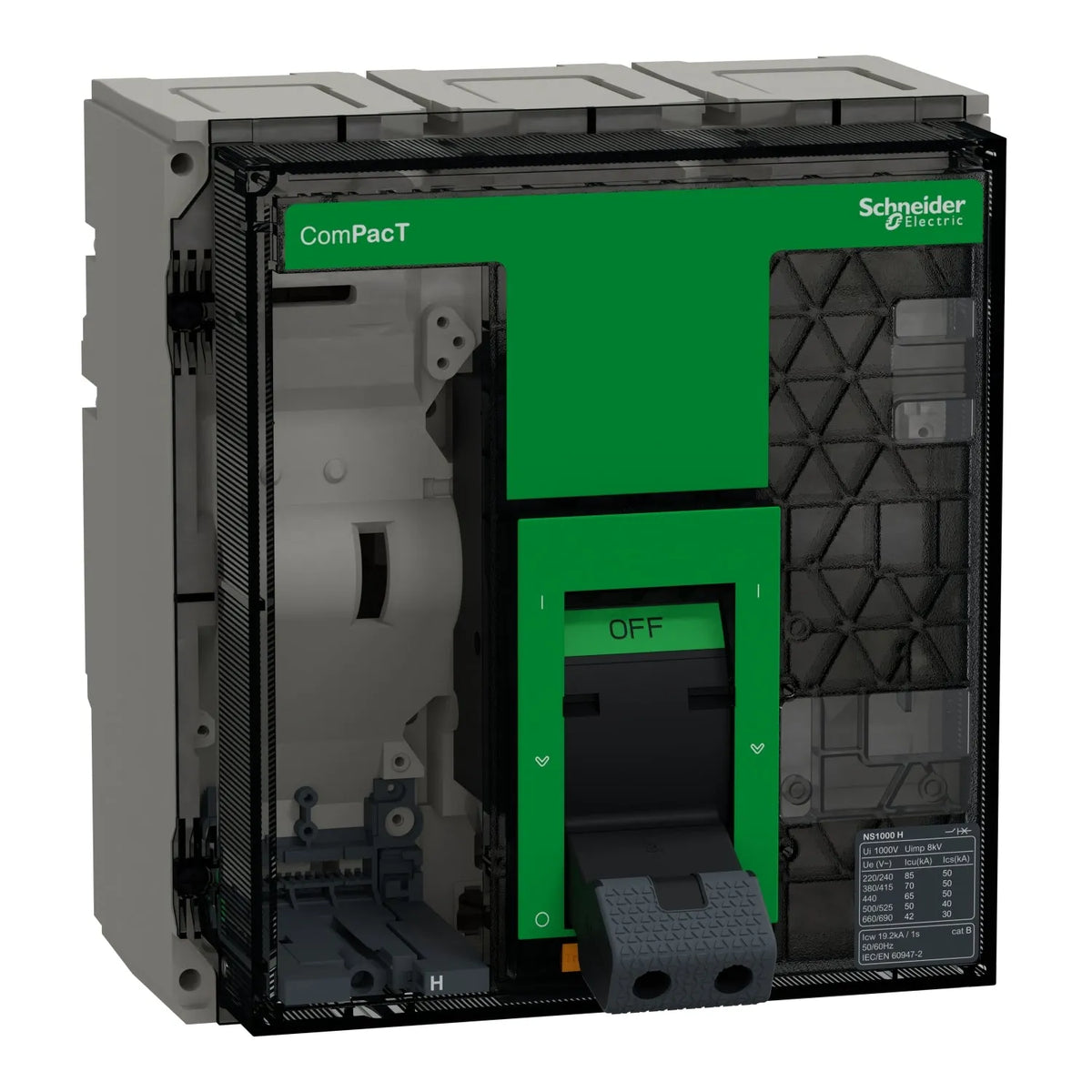

Schneider NS1600H 3 Pole 1600A Molded Case Circuit Breaker 70 kA
Availability: In Stock

Schneider NS1600H 3 Pole 1600A Molded Case Circuit Breaker 70 kA

Product SKU: C160H320FM
Rs.800,000

Safe Delivery

Quick & safe nation wide delivery

1 Year Warranty

Reliable 1-year protection

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Offer & Coupon

Get Flat Rs 300 Off on HIMEL Min Cart Value Rs 4500

Specifications

Range ComPacT
Range of product ComPacT NS630b...1600 new generation
Product or component type Circuit breaker
Device application Distribution
Number of poles 3P
Protected poles description 3D
(In) rated current up to 65 oc 1600 A at 50 oc
[Uel rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
utilisation category Category B
[Icu] rated ultimate short-circuit breaking capacity 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Performance level H 70 kA415VAC
Trip unit name MicroLogic 2.0
Trip unit technology Electronic
Trip unit protection functions LI
control type Manually operated
Mounting mode Fixed
[I-Jil rated insulation voltage 800 V AC 50/60 Hz conforming to IE C 60947-2
[UimpJ rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Mechanical durability 10000 cycles
Electrical durability 1000 cycles at 690 V In / 2000 cycles at 690 V In/2 / 2000 cycles at 440 V In / 5000 cycles at 440 V In/2
standards EN,'IEC 60947-2
product certifications IECEE CB Scheme
Pollution degree 3 conforming to IEC 60947
IP degree of protection IP40 conforming to IEC 60529
1K degree Of protection IK07 conforming to EN 50102
Ambient air temperature for operation -25...70 c
Ambient air temperature for storage -50.,-85 c
Net weight 14 kg
Relative humidity 0...95 %

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider NS1600H 3 Pole 1600A Molded Case Circuit Breaker 70 kA

This circuit breaker is part of the new generation of ComPacT NS630bN to NS3200 range. ComPacT NS new generation keeps the same performances and comes with a new transparent front cover for auxiliaries visibility and a new toggle with ergonomic touch and optional LED trip status. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This ComPacT NS1600H is a complete 3 poles circuit breaker designed to optimize space and breaking capacity. It is a fixed circuit breaker manually operated. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. The circuit breaker can be manually operated with ON, OFF or "push to trip" buttons. This product embeds an electronic MicroLogic 2.0 control unit, with 1600A rating. MicroLogic 2.0 control unit provides adjustable long time and instantaneous protections (ANSI codes 49/50). This product comes with a variety of optional functions and accessories. The dimensions are 327mm (Heigh) x 210mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS new generation is part of Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with green packaging and green partnerships.
