Range
|
compact new generation
device short name
|
|
device application
|
distribution
|
|
poles description
|
3p
|
|
protected poles description
|
3d
|
Schneider NSX160H 3P TMD Breaker price in Pakistan is Rs 65,000/-.

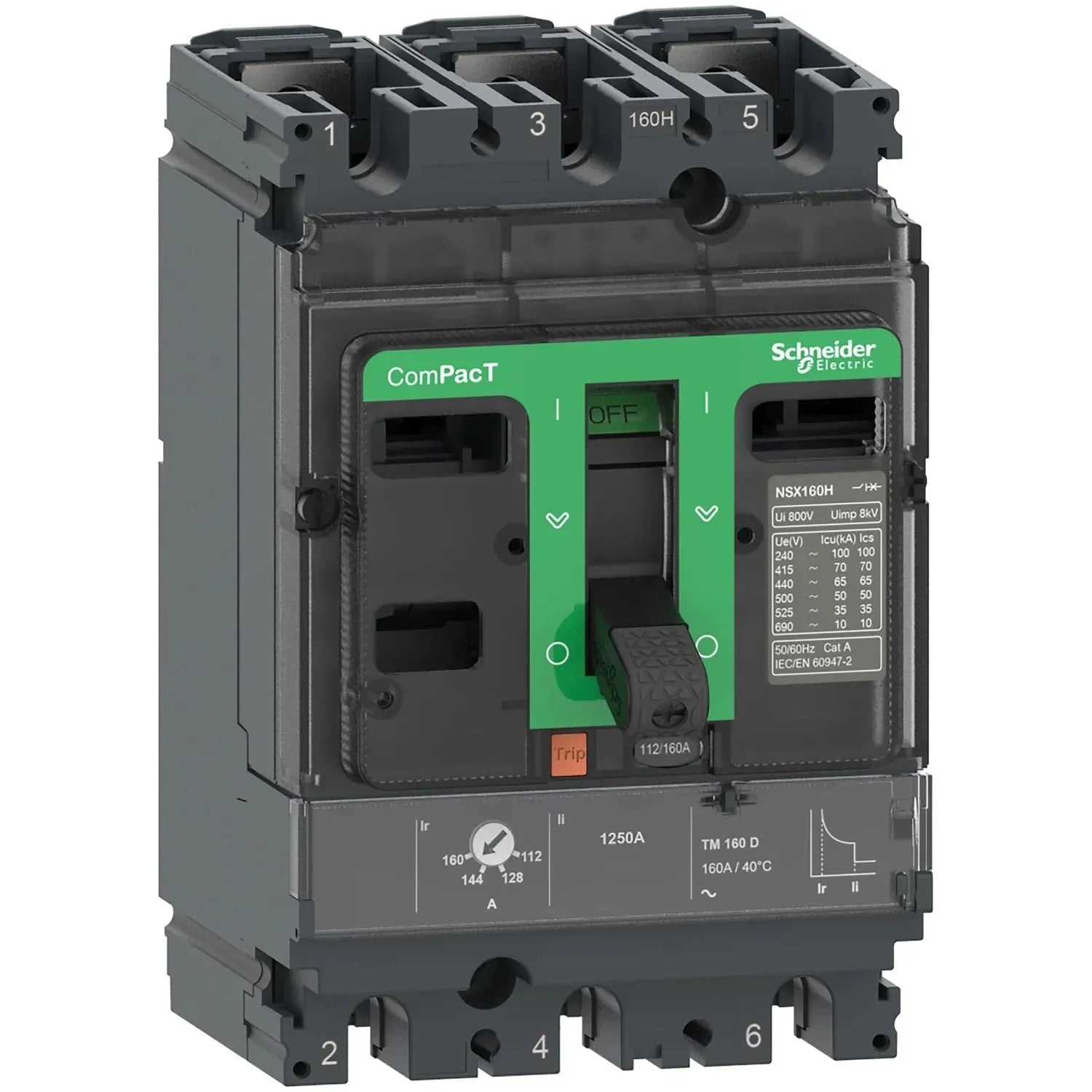

This ComPacT NSX160H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 125A, 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides adjustable thermal overload protection and fixed magnetic protection. This 3-pole version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX160H is part of Schneider Electric EcoStruxure Power architecture.
