Range
|
compact new generation
|
|
product name
|
compact nsx new generation
|
|
product or component type
|
circuit breaker
|
|
device application
|
distribution
|

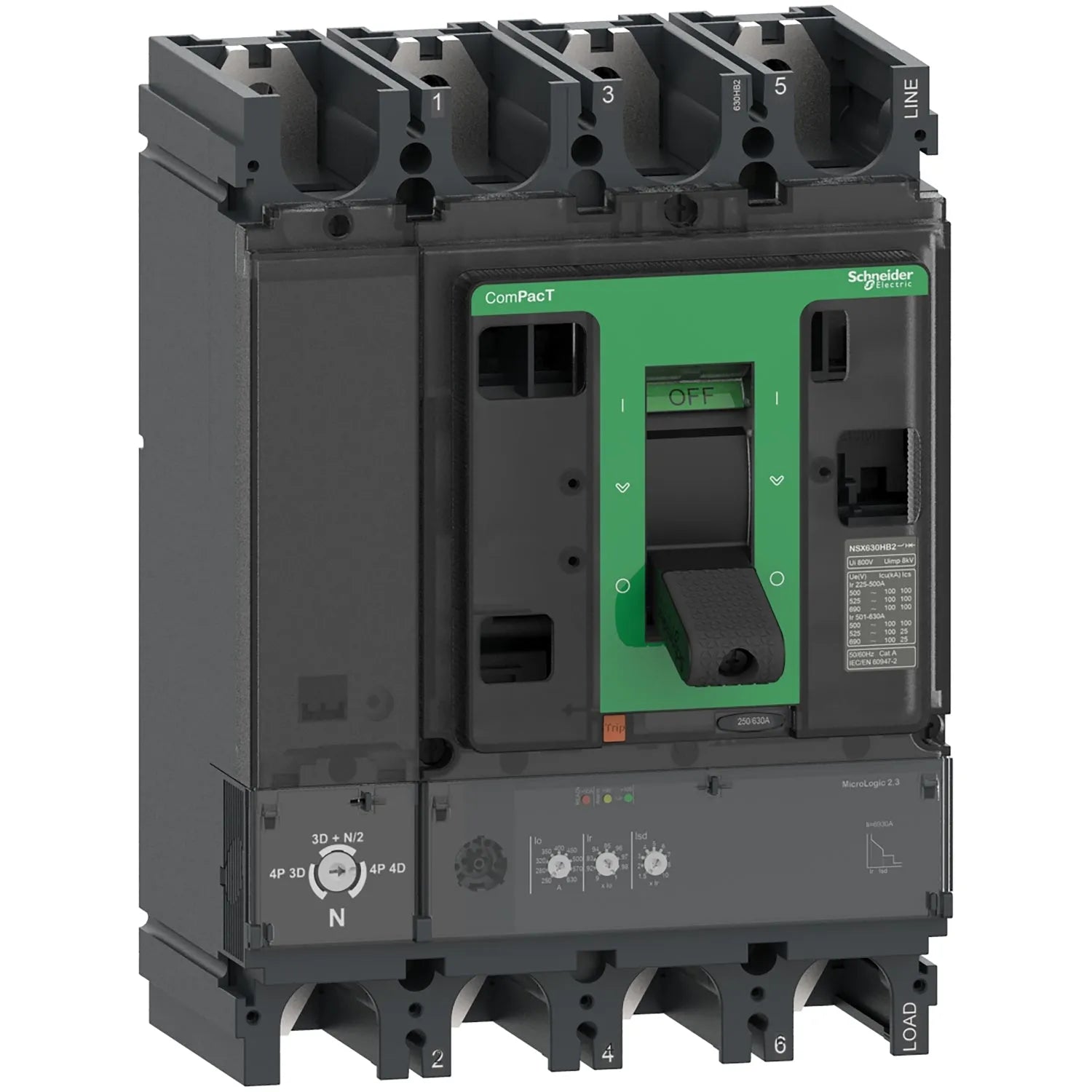

This ComPacT NSX400N is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with a 400A rating. MicroLogic 2.3 trip unit provides adjustable long-time and short-time protections and fixed instantaneous protection. This 4-pole version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX400N is part of Schneider Electric EcoStruxure Power architecture.
