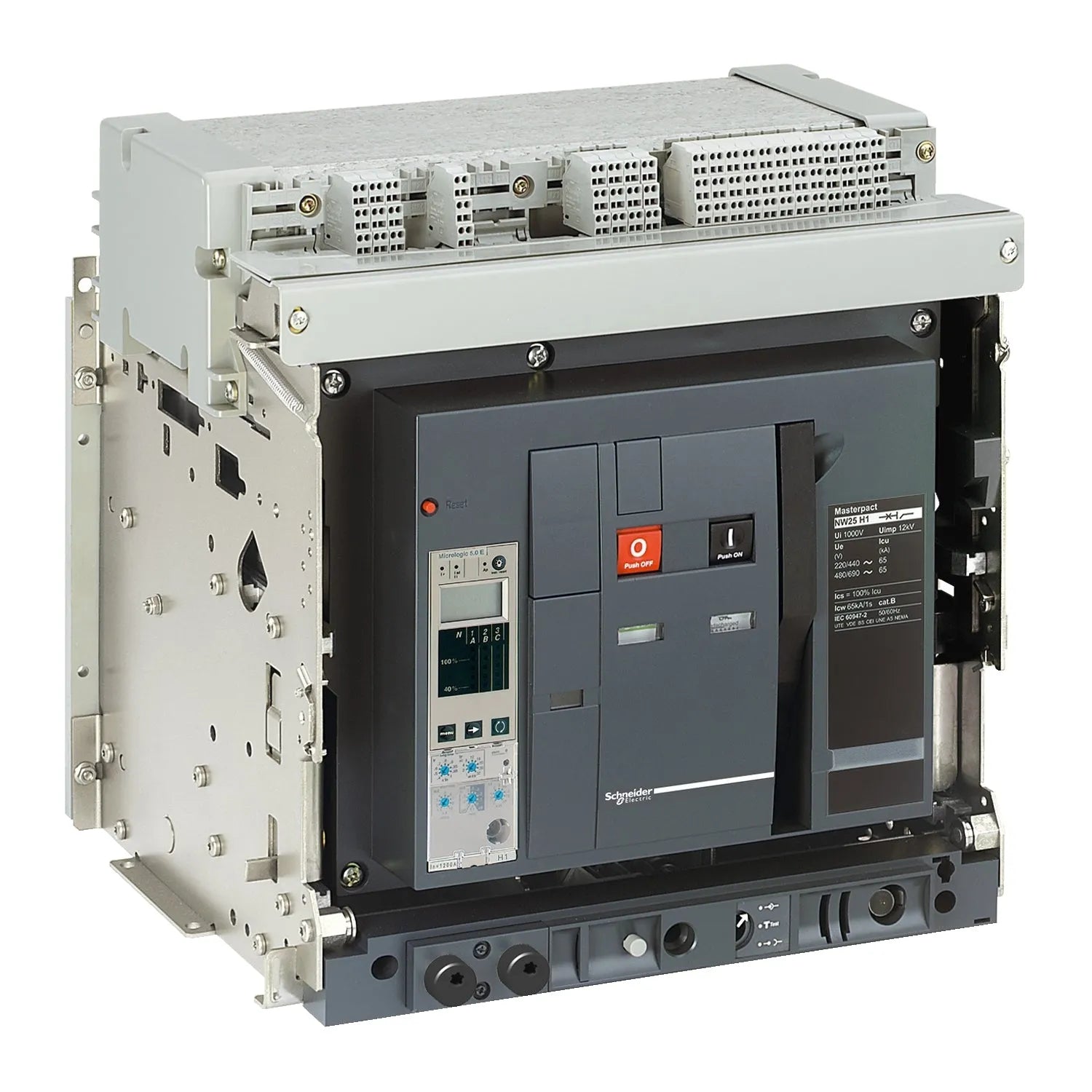

Schneider MasterPact 4P 1600A ACB Breaker price in Pakistan is Rs 1,600,000/-. Schneider MasterPact NW16H2 is a high-performance 4-pole air circuit breaker designed for robust electrical circuit protection. With a rated current of 1600A, this breaker is equipped to handle heavy-duty applications, ensuring reliable and efficient protection against overloads and short circuits. Its advanced design incorporates cutting-edge technology to deliver superior performance and enhance electrical system safety. The NW16H2 is a versatile solution suitable for various industrial and commercial environments, offering a combination of high current-carrying capacity and precision in circuit interruption. Schneider's MasterPact series is renowned for its durability and innovation in the field of electrical distribution, making the NW16H2 a reliable choice for demanding applications.
100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
rated service breaking capacity [ics]
100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
rrated short-time withstand current [icw]
85 ka 1 s / 50 ka 3 s
rated short-circuit making capacity [icm]
220 ka 220/415 v ac at 50/60 hz / 187 ka 440 v ac at 50/60 hz / 187 ka 525 v ac at 50/60 hz / 187 ka 690 v ac at 50/60 hz
integrated instantaneous protection (din in ka peak)
171…209 ka
sensor rating
800 a / 1600 a
rated insulation voltage [ui]
1000 v ac 50/60 hz
rated impulse withstand voltage [uimp]
12 kv
power dissipation in w
170 w
maximum breaking time
25 ms
maximum closing response time
70 ms
mounting support
backplate / rails
upside connection
front / rear
downside connection
front / rear
connection pitch
115 mm
mechanical durability
12500 cycles without maintenance / 25000 cycles with maintenance
electrical durability
10000 cycles 440 v ac 50/60 hz without maintenance conforming to en/iec 60947-2 / 10000 cycles 690 v ac 50/60 hz without maintenance conforming to en/iec 60947-2 / ac-23a; 10000 cycles 440 v ac 50/60 hz without maintenance conforming to en/iec 60947-3 / ac-23a; 10000 cycles 690 v ac 50/60 hz without maintenance conforming to en/iec 60947-3 / ac-3; 6000 cycles 440/690 v ac 50/60 hz without maintenance conforming to en/iec 60947-3
ip degree of protection
ip30 conforming to iec 60529
pollution degree
4 conforming to iec 60664-1
ambient air temperature for operation
-25…70 °c
ambient air temperature for storage
-40…85 °c
operating altitude
0...2000 m without derating / 2000 m...5000 m with derating
Product Details
Schneider MasterPact 4P 1600A ACB Breaker price in Pakistan is Rs 1,600,000/-. Schneider MasterPact NW16H2 is a high-performance 4-pole air circuit breaker designed for robust electrical circuit protection. With a rated current of 1600A, this breaker is equipped to handle heavy-duty applications, ensuring reliable and efficient protection against overloads and short circuits. Its advanced design incorporates cutting-edge technology to deliver superior performance and enhance electrical system safety. The NW16H2 is a versatile solution suitable for various industrial and commercial environments, offering a combination of high current-carrying capacity and precision in circuit interruption. Schneider's MasterPact series is renowned for its durability and innovation in the field of electrical distribution, making the NW16H2 a reliable choice for demanding applications.
