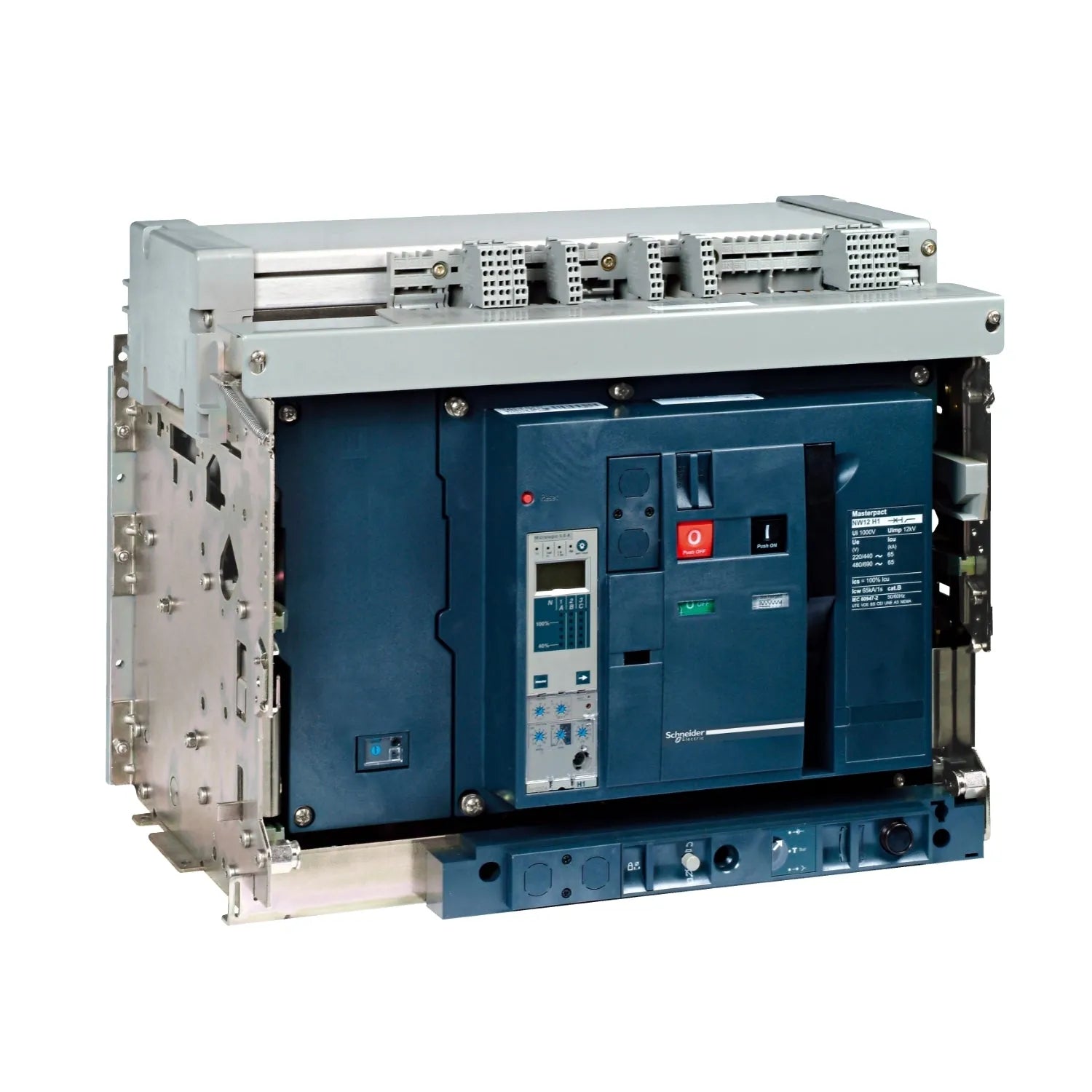

Schneider MasterPact 4P 3200 A ACB Breaker price in Pakistan is Rs 2,950,000/-. Guard your high-powered circuits with the Schneider MasterPact NW32H2 Air Circuit Breaker. This 4-pole powerhouse packs a 3200A punch and a 100kA short-circuit shield, safeguarding critical equipment in factories, data centers, and beyond. Its design simplifies maintenance while its compact size fits existing panels. Choose the MasterPact NW32H2 for ultimate electrical protection and peace of mind.
100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
rated service breaking capacity [ics]
100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
rated short-time withstand current [icw]
85 ka 1 s / 75 ka 3 s
rated short-circuit making capacity [icm]
220 ka 220/415 v ac at 50/60 hz / 187 ka 440 v ac at 50/60 hz / 187 ka 525 v ac at 50/60 hz / 187 ka 690 v ac at 50/60 hz
integrated instantaneous protection (din in ka peak)
sensor rating
1600 a / 3200 a
rated insulation voltage [ui]
1000 v ac 50/60 hz
rated impulse withstand voltage [uimp]
12 kv
power dissipation in w
420 w
maximum breaking time
25 ms
maximum closing response time
70 ms
mounting support
backplate / rails
upside connection
front / rear
downside connection
front / rear
connection pitch
115 mm
mechanical durability
10000 cycles without maintenance / 20000 cycles with maintenance
standards
en/iec 60947-1 / en/iec 60947-2
ip degree of protection
ip30 conforming to iec 60529
pollution degree
4 conforming to iec 60664-1
ambient air temperature for operation
-25…70 °c
ambient air temperature for storage
-40…85 °c
operating altitude
0...2000 m without derating / 2000 m...5000 m with derating
Product Details
Schneider MasterPact 4P 3200 A ACB Breaker price in Pakistan is Rs 2,950,000/-. Guard your high-powered circuits with the Schneider MasterPact NW32H2 Air Circuit Breaker. This 4-pole powerhouse packs a 3200A punch and a 100kA short-circuit shield, safeguarding critical equipment in factories, data centers, and beyond. Its design simplifies maintenance while its compact size fits existing panels. Choose the MasterPact NW32H2 for ultimate electrical protection and peace of mind.
