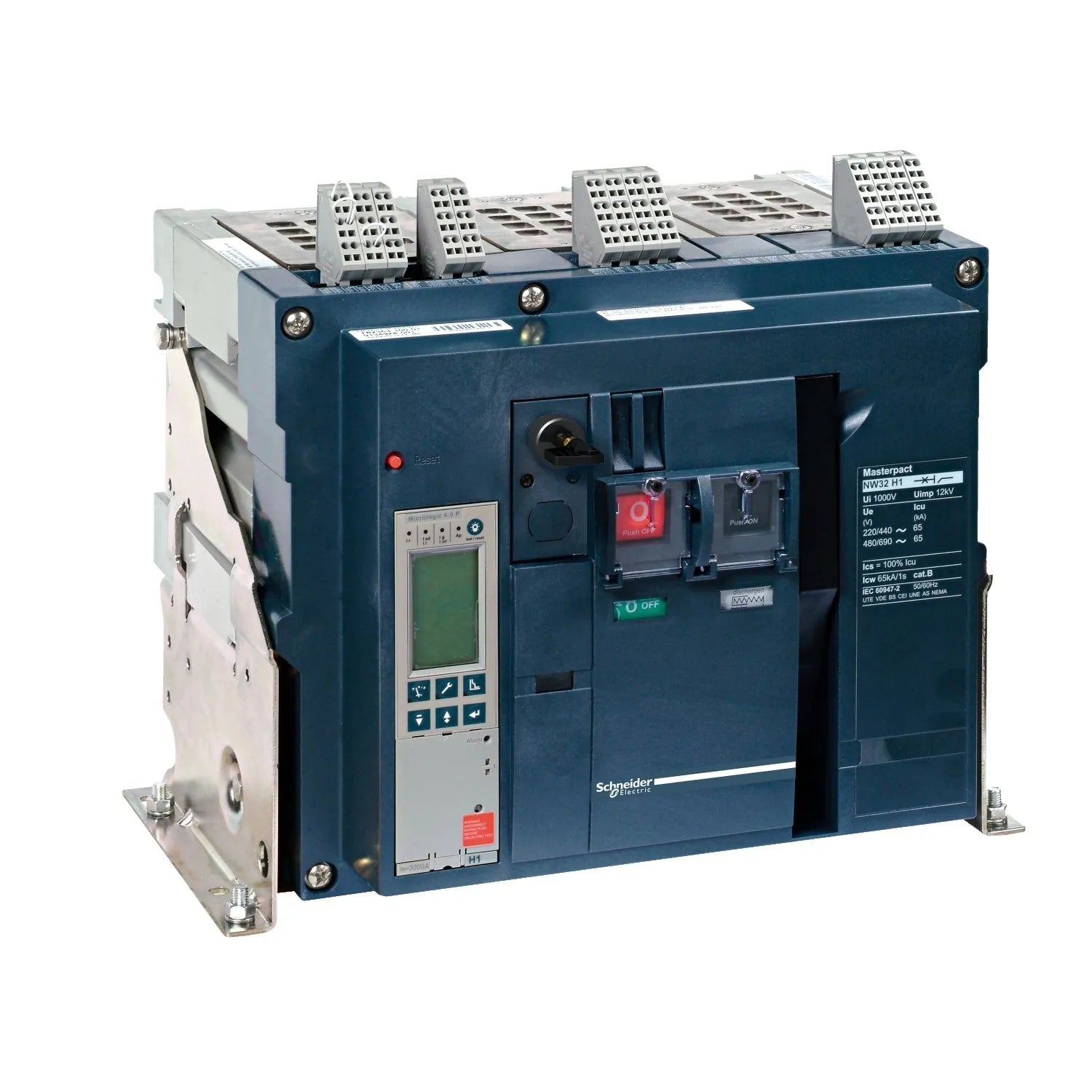

Schneider MasterPact NW40H2 3 Pole 4000 A Air Circuit Breaker

Name: Schneider MasterPact NW40H2 3 Pole 4000 A Air Circuit Breaker
Brand: Schneider Electric
SKU: 48093
Price: 2700000.0 PKR
Availability: InStock

Product SKU:48093

Be the first to review

Rs.2,700,000.00 PKR

Sale Sold out

people bought this recently

Product variants

About This Product

Key Features

Range: MasterPacT
Product name: MasterPact NW
circuit breaker name: MasterPact NW40H2
Product or component type: Circuit... Show All Key Features

Product Specifications

Range	masterpact product name
product or component type	circuit breaker
device application	power distribution protection
poles description	3p

Product Details

Schneider MasterPact 3P 4000 A ACB Breaker price in Pakistan is Rs 2,700,000/-.
Schneider MasterPact NW40H2 is a high-capacity air circuit breaker designed for industrial applications. With an impressive 4000A capacity and a 3-pole configuration, it delivers robust electrical protection. Known for its reliability, this breaker ensures the safety and stability of electrical systems in demanding environments. The MasterPact NW40H2 stands out as a powerful solution for high-performance applications, combining efficiency with a compact and durable design.

User Manual

schneider-nw40h2-3p-acb-breaker.pdf

Powerhouse Benefits

Invoice Available
Secure Payments
365 Days Help Desk

Return & Warranty Policy

Upto 3 Days Returnable
Missing Product
Wrong Product
Damaged Product

Schneider MasterPact NW40H2 3P ACB Breaker Price in Pakistan

Looking to purchase Schneider MasterPact NW40H2 3 Pole 4000 A Air Circuit Breaker in bulk?

Purchase item in bulk quantity
Get at best price for your business

Reviews & Ratings

Update Qty

Related Categories

Air circuit breakers Circuit breakers Industrial automation & circuit protection Schneider electric

Range	masterpact product name
product or component type	circuit breaker
device application	power distribution protection
poles description	3p
control unit	without control unit
rated current [in]	3200 a at 40 °c
performance type	h2 100 ka 440 v ac
rated operational voltage [ue]	690 v ac 50/60 hz suitability for isolation
selectivity category	category b
control type	push-button
mounting mode	fixed
rated ultimate short-circuit breaking capacity [icu]	100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
rated service breaking capacity [ics]	100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
rated short-time withstand current [icw]	85 ka 1 s / 75 ka 3 s
rated short-circuit making capacity [icm]	220 ka 220/415 v ac at 50/60 hz / 187 ka 440 v ac at 50/60 hz / 187 ka 525 v ac at 50/60 hz / 187 ka 690 v ac at 50/60 hz
integrated instantaneous protection (din in ka peak)	171…209 ka
sensor rating	1600 a / 3200 a
rated insulation voltage [ui]	1000 v ac 50/60 hz
rated impulse withstand voltage [uimp]	12 kv
power dissipation in w	420 w
maximum breaking time	25 ms
maximum closing response time	70 ms
mounting support	backplate / rails
upside connection	front / rear
downside connection	front / rear
mechanical durability	10000 cycles without maintenance / 20000 cycles with maintenance
electrical durability	5000 cycles 440 v ac 50/60 hz without maintenance conforming to en/iec 60947-2 / 2500 cycles 690 v ac 50/60 hz without maintenance conforming to en/iec 60947-2 / ac-23a
net weight	50 kg
standards	en/iec 60947-1 / en/iec 60947-2
ip degree of protection	ip30 conforming to iec 60529
pollution degree	4 conforming to iec 60664-1
ambient air temperature for operation	-25…70 °c
ambient air temperature for storage	-40…85 °c
operating altitude	0...2000 m without derating / 2000 m...5000 m with derating
