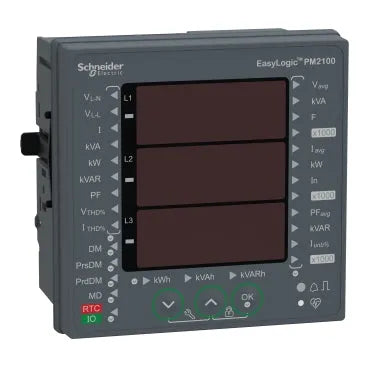

Schneider PM2110, Power & Energy meter Price In Pakistan is 25000/-
The Schneider PM2110 Power & Energy Meter is a high-performance monitoring device designed for accurate power measurement and energy management. Equipped with an LED display and class 1 accuracy, this meter provides real-time insights into energy consumption and power quality. It supports total harmonic distortion (THD) analysis, helping to detect electrical disturbances. The pulse output feature allows easy integration with external systems for enhanced monitoring and automation. Ideal for commercial, industrial, and infrastructure applications, the PM2110 ensures reliable and efficient power management.
Class 1 accuracy for precise power and energy measurement
Detects power quality issues with THD analysis
Bright LED display for real-time readings
Pulse output for easy system integration
Monitors voltage, current, frequency, power factor, and energy consumption
Compact and durable design for tough environments
Easy installation with a user-friendly interface
Suitable for commercial, industrial, and energy management applications
Product Specifications
Range
easylogic
product name
easylogic pm2100
device short name
pm2110
product or component type
power meter
device application
power monitoring
sub billing
power quality analysis
total harmonic distortion
type of measurement
total current harmonic distortion thd (i) per phase
total voltage harmonic distortion thd (u) per phase
apparent energy total
active and reactive energy total
apparent power total
active and reactive power total
current average
voltage average
frequency average
power factor average
metering type
peak demand power pm, qm, sm
apparent power s, s1, s2, s3
current i, i1, i2, i3
reactive power q, q1, q2, q3
calculated neutral current
voltage u, u21, u32, u13, v, v1, v2, v3
peak demand currents
unbalance current
demand power p, q, s
active power p, p1, p2, p3
active, reactive, apparent energy (signed, four quadrant)
accuracy class
class 1 active energy conforming to iec 62053-21
class 1 reactive energy conforming to iec 62053-24
measurement accuracy
apparent power +/- 1 %
active energy +/- 1 %
reactive energy +/- 1 %
active power +/- 1 %
voltage +/- 0.5 %
power factor +/- 0.01
current +/- 0.5 %
frequency +/- 0.05 %
measurement current
5…6000 ma
measurement voltage
35…480 v ac 50/60 hz between phases
20…277 v ac 50/60 hz between phase and neutral
480…999000 v ac 50/60 hz with external vt
frequency measurement range
45…65 hz
[us] rated supply voltage
44...277 v ac 45...65 hz +/- 10 %
44...277 v dc +/- 10 %
network frequency
60 hz
50 hz
ride-through time
100 ms 120 v ac typical
400 ms 230 v ac typical
50 ms 125 v dc typical
[in] rated current
5 a
1 a
maximum power consumption in va
6 va at 277 v ac
maximum power consumption in w
3.3 w (power lines (ac))
2 w at 277 v (power lines (dc))
input impedance
current (impedance <= 0.3 mohm)
voltage (impedance > 5 mohm)
tamperproof of settings
protected by access code
display type
7 segments led
display colour
red
messages display capacity
3 fields of 4 characters
display digits; 12 digit(s) - 14.2 mm in height
demand intervals
configurable from 1 to 60 min
information displayed
demand current (past value)
demand current (present value)
demand power (past value)
demand power (present value)
voltage
current
frequency
energy consumption
harmonic distortion
power factor
active power
apparent power
reactive power
unbalanced in %
control type
3 x button
local signalling
red led
number of inputs
0
number of outputs
1 pulse
pop parameter
pulse
impulse duration
20 ms
communication port protocol
Pop
sampling rate
64 samples/cycle
cybersecurity
enable/disable communication ports
communication service
remote monitoring
product certifications
ce conforming to iec 61010-1
culus conforming to ul 61010-1
culus conforming to csa c22.2 no 61010-1
rcm
eac
c-tick
mounting mode
clip-on
mounting position
vertical
mounting support
framework
provided equipment
1 x installation guide
measurement category
category iii 480 v
category ii 480…600 v
electrical insulation class
double insulation
class ii
flame retardance
v-0 conforming to ul 94
connections - terminals
current transformer
material
polycarbonate
width
96 mm
depth
total
height
96 mm
net weight
300 g
compatibility code
pm2110
