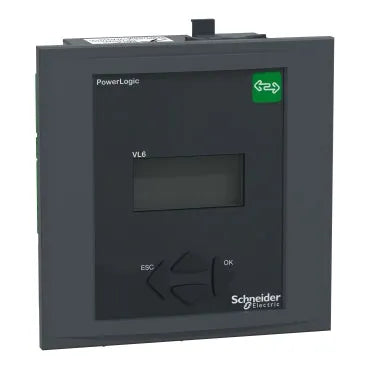

Schneider VPL12N Power Factor Controller VPL 12
Product SKU:
VPL12N
Rs.250,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Product Name
PowerLogic PFC Controller VPL12
Product Type : Power Factor Controller
Number of Step Output Contacts
12
Operating Mode
Manual or Automatic
Quadrant Operation
4 Quadrants (Generator Applications)
Device Connection
RS485 (Modbus Protocol)
Supply Voltage
90-550V AC (≤999kV with External VT)
Measurement Voltage
90-550V AC (50/60Hz)
Measurement Current
0-5A
Current Input
CT...X/5A & X/1A
Output Type
Control Relay: 0.2A (110V DC), 1A (24V/48V DC), 2A (400V AC), 5A (120V/250V AC)
Fan Relay: 5A (250V AC), 1A (48V DC)
Alarm Relay: 5A (250V AC), 1A (48V DC)
Max Common Terminal Load : 10A
Display Type
Backlit LCD
Display Size
56 x 25mm
Measurement Types
Power Factor (Signed, Four Quadrant)
Total Current Harmonic Distortion (THD I)
Voltage & Current (Phase & RMS)
Active, Reactive & Apparent Power (P, Q, S)
Cos φ, Tan φ, Ambient Temperature
Operating Time & Step Switching Cycles
Voltage
±1%
Current
±1%
Frequency
±1%
Energy (P, Q, S)
±2%
Cos φ
±2%
THD (U)
±2%
Individual Voltage Harmonic
±3%
Temperature
±3°C
Alarms Logged
5 Alarms
Operational Hours Alarm
100,000h Without Maintenance
Operational Counter Alarm
65,000 Cycles Without Maintenance
Mounting Mode
Flush-Mounted
Mounting Support
Panel (1-3mm Thickness)
Mounting Location
Cabinet
Cut-Out Dimensions
138 x 138mm
Dimensions (H x W x D)
144mm x 144mm x 58mm
Net Weight
0.6kg
Key Features
12-Step Control – Works in auto or manual mode.
Wide Voltage Range – Supports 90-550V AC systems.
Accurate Monitoring – Tracks voltage, current, and power factor.
Safety Alerts – Warns of voltage, load, and step issues.
LCD Display – Shows real-time power data.
RS485 Modbus – Allows remote access.
Flexible Settings – Custom step configurations.
Easy Installation – Compact, flush-mounted design.
Product Details
Reviews
Shipping & Returns
User Manual
Schneider VPL12N Power Factor Controller VPL 12
The Schneider VPL12N Power Factor Controller is a smart and efficient solution for power factor correction in industrial and commercial applications. Designed for reliability and ease of use, it optimizes power usage, reduces energy costs, and ensures stable power quality.
