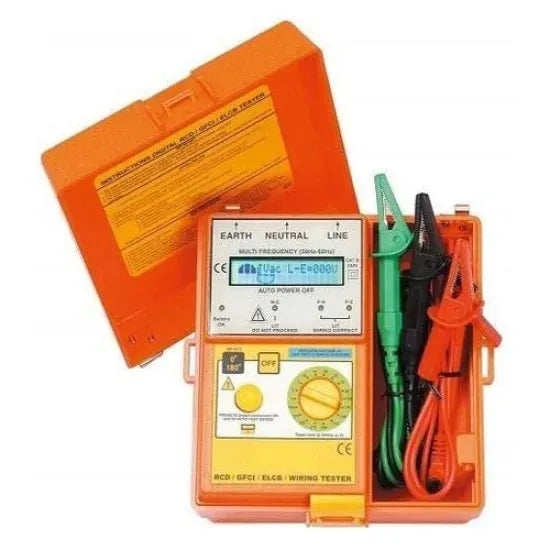

SEW Digital ELCB (RCD) Tester Price in Pakistan Rs 65,500/-. The SEW 1812 EL Digital ELCB (RCD) Tester is a high-precision instrument designed to test the trip time and trip current of Earth Leakage Circuit Breakers (ELCBs) or Residual Current Devices (RCDs). It offers multiple test modes including auto, ramp, and manual, and supports a range of current ratings such as 10mA, 30mA, 100mA, and 300mA. With its large digital LCD, auto data hold, phase polarity check, and compact build, the 1812 EL is ideal for electricians, safety inspectors, and maintenance professionals who need fast, reliable, and easy-to-use RCD testing in both residential and commercial environments.
Phase polarity and auto lead resistance compensation
Supplied with test leads, clips, and carrying case
Supports 10mA, 30mA, 100mA, 300mA test currents
Product Specifications
Type
rcd tester
rated operating voltage
230v / 240v ac ±10%
accuracy
±(2% rdg + 2 digits)
auto null (lead compensation)
yes
auto power off
yes
dimensions
approx. 200mm x 100mm x 55mm
display
large backlit digital lcd
humidity
=85% rh
included accessories
test leads, crocodile clips, batteries, instruction manual, carrying case
operating temperature
0°c to 40°c
phase polarity check
yes
power supply
6 x aa batteries or ac adapter
ramp test range
up to 2x rated trip current
safety standards
iec 61010-1, cat iii
storage temperature
-10°c to 60°c
test current settings
10ma / 30ma / 100ma / 300ma
test modes
manual, auto, ramp
trip time measurement
0 – 2000ms
Product Details
SEW Digital ELCB (RCD) Tester Price in Pakistan Rs 65,500/-. The SEW 1812 EL Digital ELCB (RCD) Tester is a high-precision instrument designed to test the trip time and trip current of Earth Leakage Circuit Breakers (ELCBs) or Residual Current Devices (RCDs). It offers multiple test modes including auto, ramp, and manual, and supports a range of current ratings such as 10mA, 30mA, 100mA, and 300mA. With its large digital LCD, auto data hold, phase polarity check, and compact build, the 1812 EL is ideal for electricians, safety inspectors, and maintenance professionals who need fast, reliable, and easy-to-use RCD testing in both residential and commercial environments.
