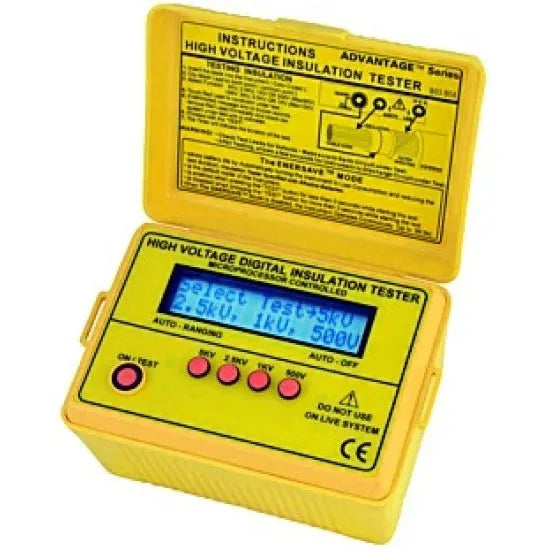

SEW Digital Insulation Tester Price in Pakistan Rs 112,000/-. The SEW 2803 IN Digital Insulation Tester is a high-performance megohmmeter designed for testing insulation resistance in electrical systems and equipment. With selectable test voltages of 1000V, 2500V, and 5000V, and a resistance measuring range up to 1000MΩ, this tester is ideal for use in industrial, utility, and maintenance applications. It features a large backlit LCD display, auto-discharge function, and PI/DAR measurements for evaluating insulation quality. Compact and durable, the SEW 2803 IN is an essential tool for ensuring safety and performance in high-voltage environments.
Comes with test leads, carrying case, and batteries
Data hold and timer function for precise testing
Large digital LCD display with backlight
Measures insulation resistance up to 1000MO
Overload protection and low battery indication
PI (Polarization Index) and DAR (Dielectric Absorption Ratio) functions
Product Specifications
Type
insulation tester
test voltages
1000v / 2500v / 5000v
accuracy
±(2% rdg + 3 digits)
auto power off
yes
dimensions
approx. 250mm x 190mm x 120mm
display
large backlit lcd with analog bar graph
functions
ir, pi, dar, auto discharge, data hold, timer
included accessories
high-voltage test leads, alligator clips, batteries, user manual, carrying case
insulation resistance range
0.1mo to 1000mo
operating temperature
0°c to 40°c
power supply
8 x aa batteries or optional rechargeable battery pack
relative humidity
=85% rh
safety standard
iec 61010-1, cat iv 600v
short circuit current
>1ma
storage temperature
-20°c to 60°c
