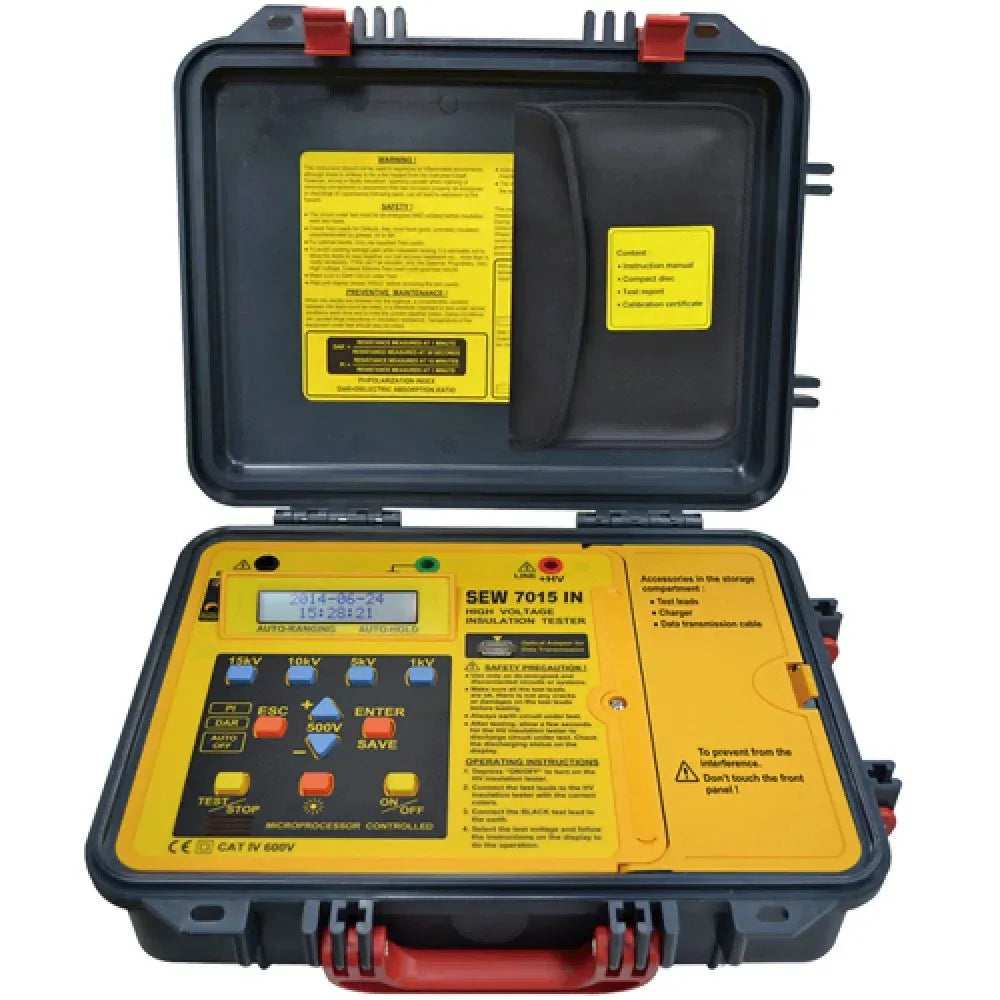

SEW Digital 15kV High Voltage Insulation Tester Price in Pakistan Rs 605,000/-. The SEW 7015IN Digital High Voltage Insulation Tester is a premium-grade insulation resistance tester designed to perform accurate and reliable measurements at voltages up to 15kV. Ideal for testing insulation in high-voltage equipment like transformers, cables, motors, switchgear, and generators, it delivers a wide resistance measuring range up to 4000GΩ. With features like PI & DAR measurement, automatic discharge, data hold, and a large backlit LCD display, the 7015IN ensures maximum safety, accuracy, and usability for professional engineers and field technicians.
Data hold, timed test, and memory storage functions
Large backlit LCD with digital & bar graph display
Live circuit detection with warning
Measures insulation resistance up to 4000GO
PI (Polarization Index) and DAR (Dielectric Absorption Ratio) functions
Rugged and portable design with protective carrying case
Product Specifications
Type
high voltage insulation tester
test voltages
500v, 1kv, 2.5kv, 5kv, 10kv, 15kv
auto power off
yes
dimensions
approx. 270mm x 220mm x 140mm
display
digital lcd with bar graph and backlight
functions
ir, pi, dar, timer, auto discharge, data hold
included accessories
high-voltage test leads, alligator clips, batteries, ac adapter, carrying case, user manual
insulation resistance range
0.1mo to 4000go
operating temperature
0°c to 40°c
power supply
rechargeable battery pack or ac adapter
relative humidity
=85% rh
safety rating
iec 61010-1, cat iv 1000v
short circuit current
=1.5ma
storage temperature
-20°c to 60°c
Product Details
SEW Digital 15kV High Voltage Insulation Tester Price in Pakistan Rs 605,000/-. The SEW 7015IN Digital High Voltage Insulation Tester is a premium-grade insulation resistance tester designed to perform accurate and reliable measurements at voltages up to 15kV. Ideal for testing insulation in high-voltage equipment like transformers, cables, motors, switchgear, and generators, it delivers a wide resistance measuring range up to 4000GΩ. With features like PI & DAR measurement, automatic discharge, data hold, and a large backlit LCD display, the 7015IN ensures maximum safety, accuracy, and usability for professional engineers and field technicians.
