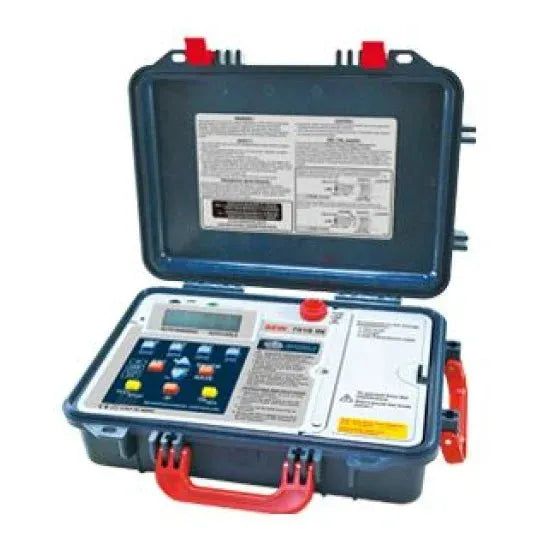

SEW High Voltage Insulation Tester Price in Pakistan Rs 730,000/-. The SEW 7016 IN High Voltage Insulation Tester is a professional-grade insulation resistance tester capable of delivering test voltages up to 16kV and measuring resistance values up to 5000GΩ. Designed for testing high-voltage equipment such as transformers, cables, switchgear, and rotating machinery, it offers advanced insulation diagnostics with PI (Polarization Index), DAR (Dielectric Absorption Ratio), and timed testing. Featuring a large backlit LCD, automatic discharge, and rugged construction, the 7016 IN is built for reliable use in harsh industrial and utility environments.
Large backlit LCD with digital and analog bar graph display
Measures insulation resistance up to 5000GO
Overload protection and warning indicators
PI (Polarization Index) and DAR (Dielectric Absorption Ratio) testing
Supplied with high-voltage test leads, carry case, and accessories
Timer function for scheduled test duration
Product Specifications
Type
high voltage insulation tester
test voltage options
500v, 1000v, 2500v, 5000v, 10000v, 12000v, 16000v
auto power off
yes
dimensions
approx. 280mm x 220mm x 150mm
display type
large lcd with backlight and analog bar graph
humidity
=85% rh
included accessories
high-voltage test leads, crocodile clips, batteries, charger, user manual, carrying case
insulation resistance range
0.1mo to 5000go
operating temperature
0°c to 40°c
power supply
rechargeable battery pack or ac power adapter
safety rating
iec 61010-1, cat iv 1000v
short circuit current
>1.5ma
storage temperature
-20°c to 60°c
test functions
ir, pi, dar, timed test, auto discharge
Product Details
SEW High Voltage Insulation Tester Price in Pakistan Rs 730,000/-. The SEW 7016 IN High Voltage Insulation Tester is a professional-grade insulation resistance tester capable of delivering test voltages up to 16kV and measuring resistance values up to 5000GΩ. Designed for testing high-voltage equipment such as transformers, cables, switchgear, and rotating machinery, it offers advanced insulation diagnostics with PI (Polarization Index), DAR (Dielectric Absorption Ratio), and timed testing. Featuring a large backlit LCD, automatic discharge, and rugged construction, the 7016 IN is built for reliable use in harsh industrial and utility environments.
