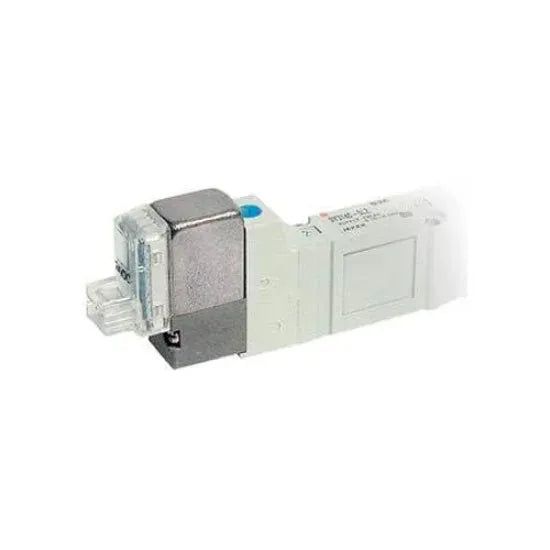

SMC SY7120-02 5 Port Directional Control Valve Price in Pakistan is Rs.75,960/-. The SMC SY7120-02 5 Port Directional Control Valve is a high-performance pneumatic valve designed for efficient and precise air flow control in industrial automation systems. Featuring both internal and external pilot operation, it offers flexible performance with an operating pressure range from -100kPa to 0.7MPa. The valve is equipped with a durable IP65-rated dustproof enclosure and LED or neon indicator lights for easy monitoring. With fast response times, multiple coil voltage options, and compact construction, the SY7120-02 ensures reliability, low power consumption, and stable operation across a wide range of pneumatic applications.
5-port directional control valve for compressed air systems
Compact design ideal for automated systems
Fast response time of 32ms or less
IP65-rated dustproof enclosure for industrial durability
LED or neon indicator light for operation status visibility
Operating pressure range -100kPa to 0.7MPa
Rated coil voltages DC (3–24V) / AC (100–220V)
Smooth and consistent performance at high frequency (max 5Hz)
Supports both internal and external pilot operation
Product Specifications
Type
control valve
enclosure
dustproof (ip65 for din terminal)
ambient & fluid temperature
max 50°c
application
for compressed air use
coil rated voltage
dc – 3, 5, 6, 12, 24v; ac – 100, 110, 200, 220v (50/60hz)
external pilot pressure range
0.25–0.7mpa
fluid
air
indicator lights
led (neon bulb for ac type din terminal)
number of ports
5 ports
operating frequency
max 5hz
operating pressure range
internal pilot 0.1–0.7mpa; external pilot -100kpa to 0.7mpa
port size
1/4"
response time
32ms or less (at 0.5mpa)
withstand pressure
21.3~101 psi / 0.15~0.7 mpa
Product Details
SMC SY7120-02 5 Port Directional Control Valve Price in Pakistan is Rs.75,960/-. The SMC SY7120-02 5 Port Directional Control Valve is a high-performance pneumatic valve designed for efficient and precise air flow control in industrial automation systems. Featuring both internal and external pilot operation, it offers flexible performance with an operating pressure range from -100kPa to 0.7MPa. The valve is equipped with a durable IP65-rated dustproof enclosure and LED or neon indicator lights for easy monitoring. With fast response times, multiple coil voltage options, and compact construction, the SY7120-02 ensures reliability, low power consumption, and stable operation across a wide range of pneumatic applications.
