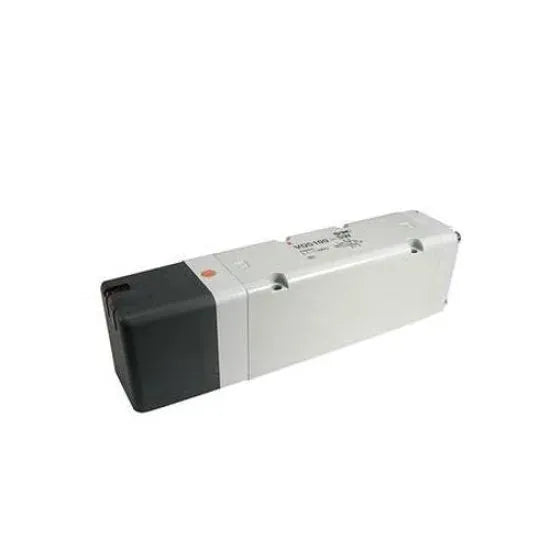

SMC VQ5100-04 5 Port Directional Control Valve Price in Pakistan is Rs.138,960/-. The SMC VQ5100-04 5 Port Directional Control Valve is a high-performance pneumatic valve engineered for precise and efficient air and inert gas control in automation systems. Designed with both metal and rubber seal options, it offers superior sealing performance and durability under varying operating conditions. With a wide operating pressure range of 0.1–1.0 MPa and fast response times, this valve ensures quick and reliable actuation. The IP65-rated enclosure provides protection against dust and moisture, making it ideal for demanding industrial environments. Supporting multiple coil voltages for both AC and DC, the VQ5100-04 guarantees flexible integration into diverse pneumatic systems.
5-port directional control valve for air and inert gas applications
Dustproof IP65-rated enclosure for reliable performance
High effective area for increased flow capacity
Ideal for industrial automation and pneumatic control systems
Operates efficiently in temperatures from -10°C to 60°C
Operates within 0.1 to 1.0 MPa pressure range
Quick response time between 20ms to 75ms
Rated coil voltage options 12V, 24V DC; 100V, 110V, 200V, 220V AC
Supports both metal and rubber seal configurations
Product Specifications
Type
control valve
ambient temperature
-10 to 60°c (metal seal
application
for compressed air and automation systems
coil rated voltage
12v, 24v dc; 100v, 110v, 200v, 220v ac (50/60hz)
effective area (cv)
72.0 (4.0) metal seal; 79.2 (4.4) rubber seal
enclosure
dustproof (ip65 for d, y, t)
fluid
air / inert gas
number of ports
5 ports
operating frequency
max 10hz
operating pressure range
0.1 to 1.0 mpa
port size
1/2"
response time
20–75 ms depending on seal type
withstand pressure
14.5–145 psi / 0.1–1.0 mpa
Product Details
SMC VQ5100-04 5 Port Directional Control Valve Price in Pakistan is Rs.138,960/-. The SMC VQ5100-04 5 Port Directional Control Valve is a high-performance pneumatic valve engineered for precise and efficient air and inert gas control in automation systems. Designed with both metal and rubber seal options, it offers superior sealing performance and durability under varying operating conditions. With a wide operating pressure range of 0.1–1.0 MPa and fast response times, this valve ensures quick and reliable actuation. The IP65-rated enclosure provides protection against dust and moisture, making it ideal for demanding industrial environments. Supporting multiple coil voltages for both AC and DC, the VQ5100-04 guarantees flexible integration into diverse pneumatic systems.
