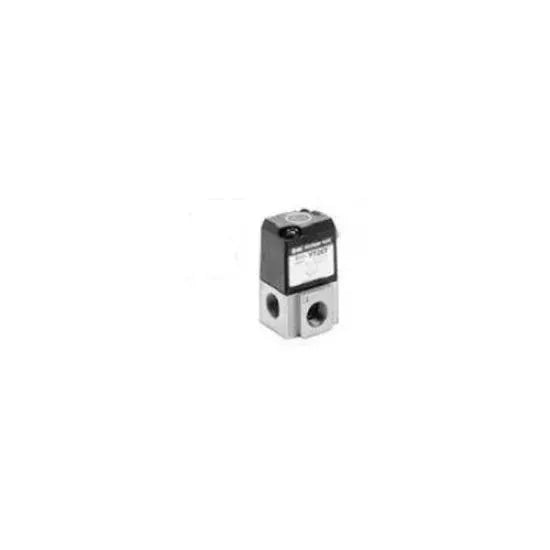

SMC VT307-02 3 Port Directional Control Valve Price in Pakistan is Rs.59,040/-. The SMC VT307-02 3-Port Directional Control Valve is a compact and efficient solenoid valve designed for precise control of compressed air systems. Built to deliver fast response and reliable performance, this valve operates effectively across a wide pressure range up to 0.9 MPa, making it ideal for industrial automation and pneumatic applications. With a dust-proof enclosure, it ensures consistent operation even in challenging environments. The VT307-02 supports multiple voltage options (AC and DC) and features low power consumption, quick response time (=20ms), and a durable 1/4” port design. Engineered for flexibility and long-term use, it’s an excellent choice for controlling actuators, cylinders, and air circuits in production machinery.
Compact and durable 3-port solenoid valve for compressed air use
Compatible with both AC and DC voltages (24VDC, 100V, 200V, 220V, etc.)
Dust-proof enclosure for enhanced durability in industrial settings
Fast response time of 20ms or less for precise air control
Ideal for actuators, air cylinders, and general pneumatic systems
Low power consumption for energy-efficient operation
Operates efficiently up to 0.9 MPa (130 Psi)
Stable operation frequency up to 10Hz
Product Specifications
Type
control valve
voltage
ac (50/60hz) – 100, 200, 24*, 48*, 110*, 220*, 240*
ambient temperature
0 to 50°c (no condensation)
enclosure
dust-proof
fluid
compressed air
number of ports
3 ports
operating frequency
max 10hz
operating pressure
0 to 0.9 mpa
port size
1/4"
power consumption
dc – 4.8w (without light), 5w (with light)
response time
= 20ms (at 0.5mpa)
withstand pressure
0 to 130 psi / 0 to 0.9 mpa
Product Details
SMC VT307-02 3 Port Directional Control Valve Price in Pakistan is Rs.59,040/-. The SMC VT307-02 3-Port Directional Control Valve is a compact and efficient solenoid valve designed for precise control of compressed air systems. Built to deliver fast response and reliable performance, this valve operates effectively across a wide pressure range up to 0.9 MPa, making it ideal for industrial automation and pneumatic applications. With a dust-proof enclosure, it ensures consistent operation even in challenging environments. The VT307-02 supports multiple voltage options (AC and DC) and features low power consumption, quick response time (=20ms), and a durable 1/4” port design. Engineered for flexibility and long-term use, it’s an excellent choice for controlling actuators, cylinders, and air circuits in production machinery.
