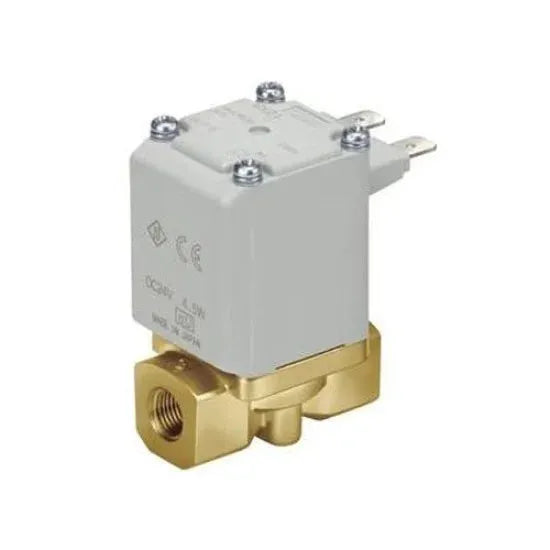

The SMC VX212 2 Ports Solenoid Valve is a compact and durable valve designed for reliable control of air and water systems. Built with a high-quality aluminum, brass, and stainless steel body, it ensures excellent corrosion resistance and long-lasting performance. Featuring a zero differential pressure pilot-operated diaphragm design, this valve guarantees precise and leak-free operation under varying conditions. Its IP65-rated dust-tight and water-jet-proof enclosure provides superior protection in industrial environments. With flexible mounting, wide voltage compatibility, and excellent sealing materials, the VX212 is ideal for both automation and fluid control applications.
Compact 2-port solenoid valve for air and water applications
Corrosion-resistant aluminum, brass, and stainless steel body
Flexible mounting with unrestricted installation position
IP65 dust-tight and water-jet-proof protection
Leak-free operation for efficient fluid control
Reliable sealing with NBR, FKM, and EPDM materials
Supports multiple DC and AC voltage options
Wide operating temperature range from 1ยฐC to 60ยฐC
Zero differential pressure pilot-operated diaphragm type
Product Specifications
Type
solenoid valve
ambient temperature
โ20 to 60ยฐc
application
air, water
atmosphere
suitable for non-corrosive, non-explosive environments
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (ip65 equivalent)
fluid temperature
1 to 60ยฐc (no freezing)
fluid
water, pure water (excluding waste/agricultural water)
mounting position
unrestricted
number of ports
2 port, normally closed (nc)
port size
1/4"
rated voltage
dc 24v (12v), ac 100v, 110v, 200v, 220v, 230v, 240v, 48v, 24v (50/60hz)
seal material
nbr, fkm, epdm
valve construction
zero differential pressure type pilot-operated 2-port diaphragm
valve leakage
0 cmยณ/min (with water pressure)
withstand pressure
0 ~ 145 psi / 0 ~ 1.0 mpa
Product Details
The SMC VX212 2 Ports Solenoid Valve is a compact and durable valve designed for reliable control of air and water systems. Built with a high-quality aluminum, brass, and stainless steel body, it ensures excellent corrosion resistance and long-lasting performance. Featuring a zero differential pressure pilot-operated diaphragm design, this valve guarantees precise and leak-free operation under varying conditions. Its IP65-rated dust-tight and water-jet-proof enclosure provides superior protection in industrial environments. With flexible mounting, wide voltage compatibility, and excellent sealing materials, the VX212 is ideal for both automation and fluid control applications.
