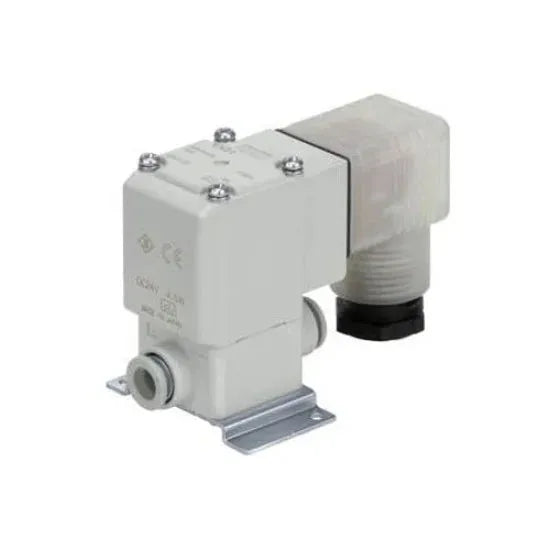

SMC VX220 2 Ports Solenoid Valve Price in Pakistan is Rs.32,040/-. The SMC VX220 2-Port Solenoid Valve is a high-performance, compact valve engineered for reliable control of air and natural gas. Designed with superior materials and innovative construction, this valve offers long service life, excellent durability, and stable operation. Its IP65-rated splash-proof enclosure ensures reliable performance even in harsh environments, while the UL94V-0 flame-resistant design enhances safety. Built with an aluminum and resin body, the VX220 provides lightweight strength and corrosion resistance. With reduced power consumption and direct-operated poppet design, it delivers efficient, leak-free performance ideal for industrial and pneumatic applications.
Compact 2-port solenoid valve for air and natural gas
Conforms to UL94V-0 flame resistance for safety assurance
Direct-operated poppet design ensures precise flow control
IP65-rated splash-proof enclosure for enhanced protection
Lightweight and durable aluminum and resin body
Low power consumption for efficient operation
Size 1: 4.5W, Size 2: 7W, Size 3: 10.5W
Special construction increases service life and reliability
Supports both AC and DC voltage operation
Unrestricted mounting position for easy installation
Zero leakage under water pressure
Product Specifications
Type
solenoid valve
ambient temperature
–20 to 60°c
ac (50/60hz)
vcw2 – 8.5va, vcw3 – 10va, vcw4 – 13va
application
designed for air and natural gas control in industrial, automation, and pneumatic systems
atmosphere
suitable for non-corrosive, non-explosive environments
dc
size 1 – 4.5w, size 2 – 7w, size 3 – 10.5w
enclosure
splash-proof (ip65 equivalent)
flame resistance
ul94v-0 compliant
fluid temperature
1–60°c (non-freezing)
fluid type
air, natural gas
leakage rate
0 cm³/min (with water pressure)
materials
body – aluminum, resin; seals – nbr, fkm, epdm, ptfe
mounting position
unrestricted
number of ports
2 port, normally closed (nc)
port size
3/8"
rated voltage
12vdc, 24vdc, 100v, 110v, 200v, 220vac (50/60hz)
valve construction
direct operated poppet
withstand pressure
0–1.0 mpa (0–145 psi)
Product Details
SMC VX220 2 Ports Solenoid Valve Price in Pakistan is Rs.32,040/-. The SMC VX220 2-Port Solenoid Valve is a high-performance, compact valve engineered for reliable control of air and natural gas. Designed with superior materials and innovative construction, this valve offers long service life, excellent durability, and stable operation. Its IP65-rated splash-proof enclosure ensures reliable performance even in harsh environments, while the UL94V-0 flame-resistant design enhances safety. Built with an aluminum and resin body, the VX220 provides lightweight strength and corrosion resistance. With reduced power consumption and direct-operated poppet design, it delivers efficient, leak-free performance ideal for industrial and pneumatic applications.
