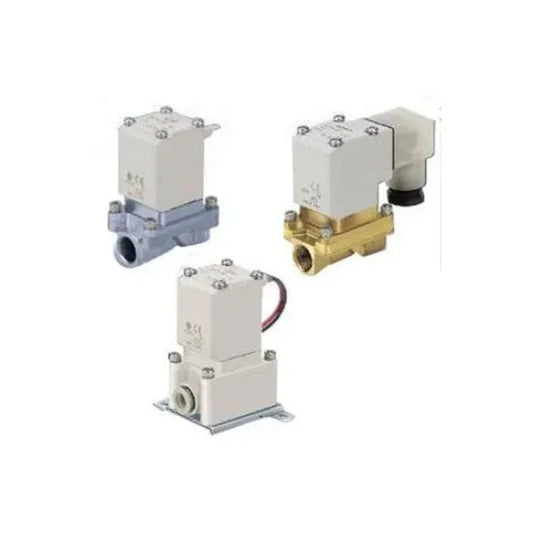

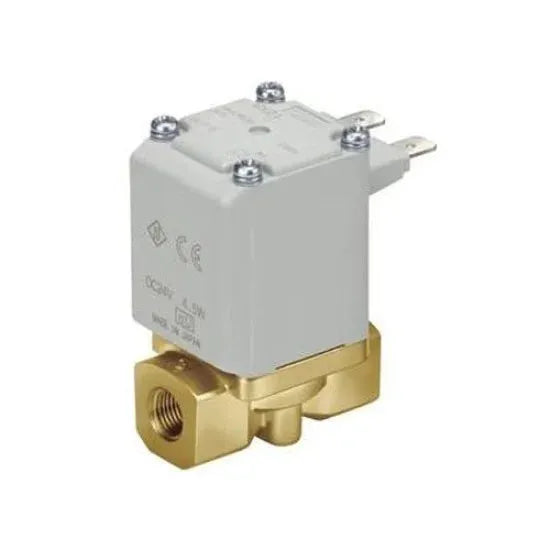

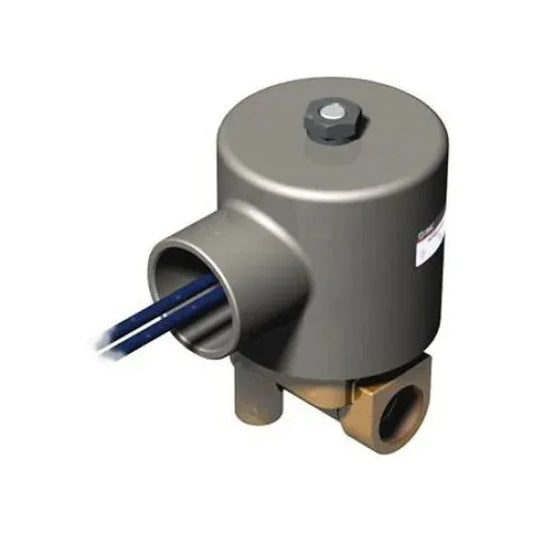

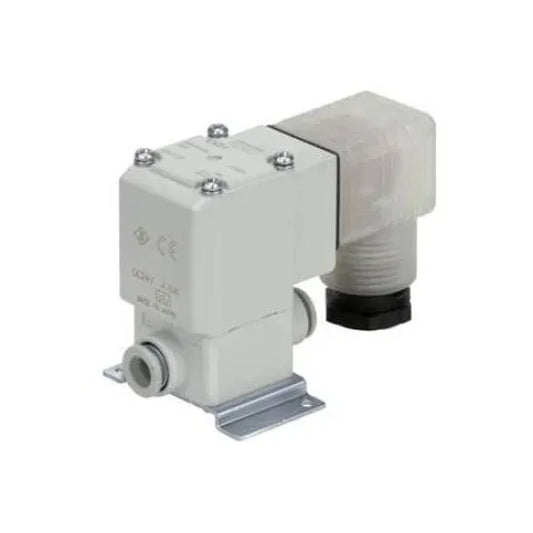

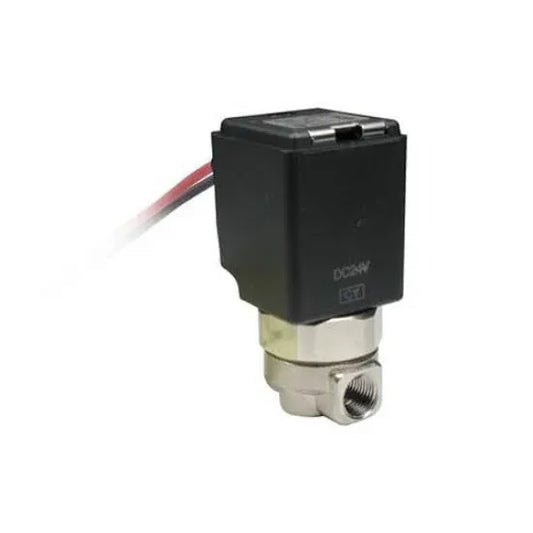

SMC VX222 2 Ports Solenoid Valve Price in Pakistan is Rs.48,960/-. The SMC VX222 2 Ports Solenoid Valve is a high-performance, compact valve designed for precise control of air and water systems. Engineered with a durable aluminum, brass, and stainless steel body, it provides excellent corrosion resistance and long operational life. Featuring a zero differential pressure pilot-operated diaphragm design, this valve ensures stable, leak-free performance even under variable pressure conditions. The IP65-rated dust-tight and water-jet-proof enclosure makes it suitable for demanding industrial environments. With flexible installation, wide voltage compatibility, and superior sealing options, the VX222 is ideal for automation, fluid handling, and general-purpose applications.
Compact 2-port solenoid valve for air and water systems
IP65 dust-tight and water-jet-proof enclosure
Leak-free operation with zero valve leakage
Reliable sealing using NBR, FKM, and EPDM materials
Robust construction with aluminum, brass, and stainless steel body
Supports both DC and AC voltages for flexible use
Unrestricted mounting position for easy installation
Wide fluid temperature range from 1°C to 60°C
Zero differential pressure pilot-operated diaphragm type
Product Specifications
Type
solenoid valve
ambient temperature
–20 to 60°c
application
air, water
atmosphere
non-corrosive, non-explosive environments
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (ip65 equivalent)
fluid temperature
1 to 60°c (no freezing)
fluid
water, pure water (excluding waste/agricultural water)
mounting position
unrestricted
number of ports
2 port, normally closed (nc)
port size
3/8"
rated voltage
dc 24v (12v), ac 100v, 110v, 200v, 220v, 230v, 240v, 48v, 24v (50/60hz)
seal material
nbr, fkm, epdm
valve construction
zero differential pressure type pilot-operated 2-port diaphragm
valve leakage
0 cm³/min (with water pressure)
withstand pressure
0 ~ 145 psi / 0 ~ 1.0 mpa
Product Details
SMC VX222 2 Ports Solenoid Valve Price in Pakistan is Rs.48,960/-. The SMC VX222 2 Ports Solenoid Valve is a high-performance, compact valve designed for precise control of air and water systems. Engineered with a durable aluminum, brass, and stainless steel body, it provides excellent corrosion resistance and long operational life. Featuring a zero differential pressure pilot-operated diaphragm design, this valve ensures stable, leak-free performance even under variable pressure conditions. The IP65-rated dust-tight and water-jet-proof enclosure makes it suitable for demanding industrial environments. With flexible installation, wide voltage compatibility, and superior sealing options, the VX222 is ideal for automation, fluid handling, and general-purpose applications.
