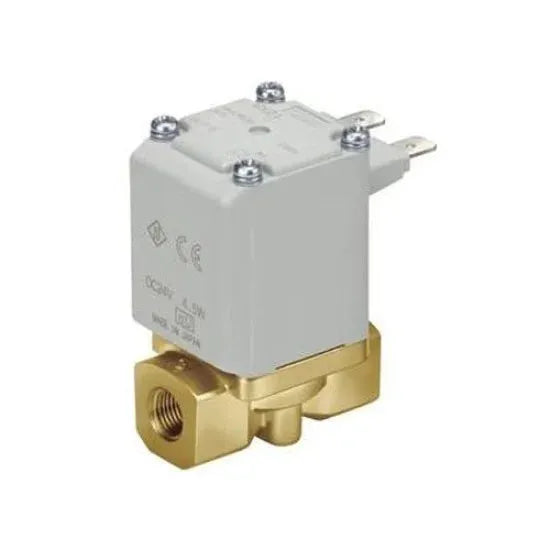

SMC VX232 2 Ports Solenoid Valve Price in Pakistan is Rs.55,440/-. The SMC VX232 2-Port Solenoid Valve is a high-performance, compact valve designed for reliable control of air and water applications. Built with a durable aluminum and stainless-steel body, this valve ensures long-term performance even in challenging environments. With a dust-tight and water-jet-proof enclosure (IP65 equivalent), it offers superior protection against moisture and particles. The VX232 is compatible with multiple voltages and operates efficiently within a wide temperature range, making it ideal for use in various industrial systems requiring precise fluid control.
2-port NC configuration with unrestricted mounting position
Compact and durable aluminum and stainless-steel construction
Compatible with multiple AC and DC voltage options
IP65 dust-tight and water-jet-proof enclosure
Operates in temperatures from –20°C to 60°C
Reliable sealing with NBR, FKM, and EPDM materials
Zero differential pressure pilot-operated diaphragm design
Product Specifications
Type
solenoid valve
ambient temperature
–20 to 60°c
atmosphere
non-corrosive, non-explosive environments
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (ip65 equivalent)
fluid temperature
1 to 60°c (no freezing)
fluid type
air, water, pure water (excluding waste or agricultural water)
leakage
0 cm³/min (with water pressure)
mounting position
unrestricted
number of ports
2 port, nc
port size
1/2 inch
rated voltage
dc 24v (12v optional), ac 100v, 200v, 110v, 230v (others optional)
seal material
nbr, fkm, epdm
valve construction
zero differential pressure type pilot-operated diaphragm
withstand pressure
0–145 psi / 0–0.1 mpa
Product Details
SMC VX232 2 Ports Solenoid Valve Price in Pakistan is Rs.55,440/-. The SMC VX232 2-Port Solenoid Valve is a high-performance, compact valve designed for reliable control of air and water applications. Built with a durable aluminum and stainless-steel body, this valve ensures long-term performance even in challenging environments. With a dust-tight and water-jet-proof enclosure (IP65 equivalent), it offers superior protection against moisture and particles. The VX232 is compatible with multiple voltages and operates efficiently within a wide temperature range, making it ideal for use in various industrial systems requiring precise fluid control.
