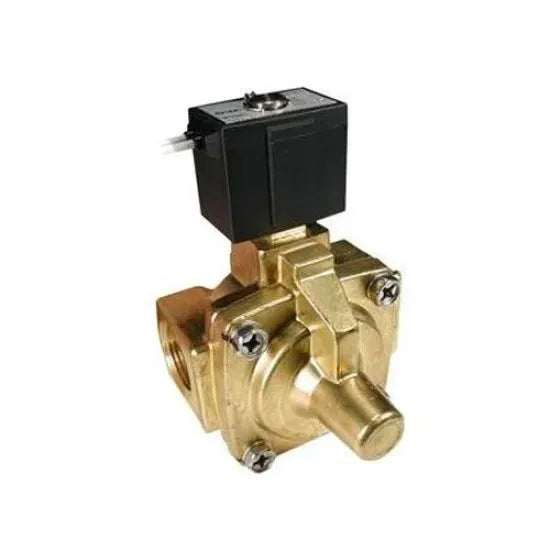

SMC VXP2380-14 2 Ports Solenoid Valve Price in Pakistan is Rs.343,440/-. The SMC VXP2380-14 2 Ports Solenoid Valve is a compact and durable flow control solution designed for air and natural gas applications. Built with high-quality materials including aluminum, brass, and stainless steel, it ensures excellent strength and corrosion resistance. Featuring a zero differential pressure pilot-operated diaphragm construction, the valve provides stable and leak-free operation even under varying pressures. With an IP65-rated dust-tight and water-jet-proof enclosure, it performs reliably in harsh environments. The VXP2380-14 supports a wide range of AC and DC voltages, making it suitable for diverse industrial uses requiring precise fluid control.
Robust aluminum, brass, and stainless steel body construction
Unrestricted mounting position for flexible installation
Wide fluid temperature range from 1°C to 60°C
Zero differential pressure pilot-operated diaphragm design
Zero leakage under water pressure
Product Specifications
Type
solenoid valve
ambient temperature
–20 to 60°c
application
air, natural gas
atmosphere
for use in non-corrosive, non-explosive environments
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (ip65 equivalent)
fluid temperature
1 to 60°c (no freezing)
fluid
water, pure water (excluding waste/agricultural water)
mounting position
unrestricted
number of ports
2 port, normally closed (nc)
port size
1-1/2"
rated voltage
dc 24v (12v), ac 100v, 110v, 200v, 220v, 230v, 240v, 48v, 24v (50/60hz)
seal material
nbr, fkm, epdm
valve construction
zero differential pressure type pilot-operated 2-port diaphragm
valve leakage
0 cm³/min (with water pressure)
withstand pressure
4.5 ~ 140 psi / 0.03 ~ 1.0 mpa
Product Details
SMC VXP2380-14 2 Ports Solenoid Valve Price in Pakistan is Rs.343,440/-. The SMC VXP2380-14 2 Ports Solenoid Valve is a compact and durable flow control solution designed for air and natural gas applications. Built with high-quality materials including aluminum, brass, and stainless steel, it ensures excellent strength and corrosion resistance. Featuring a zero differential pressure pilot-operated diaphragm construction, the valve provides stable and leak-free operation even under varying pressures. With an IP65-rated dust-tight and water-jet-proof enclosure, it performs reliably in harsh environments. The VXP2380-14 supports a wide range of AC and DC voltages, making it suitable for diverse industrial uses requiring precise fluid control.
