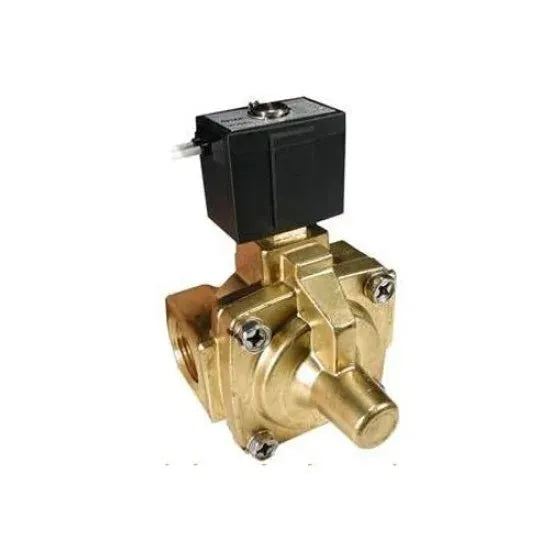

SMC VXP2380S-14 2 Ports Solenoid Valve Price in Pakistan is Rs.366,120/-. The SMC VXP2380S-14 2-Port Solenoid Valve is a compact and reliable solution designed for controlling steam, air, and water in demanding industrial environments. With its robust construction using aluminum, brass, and stainless steel materials, it ensures high durability and resistance to heat and corrosion. This valve operates efficiently under temperatures up to 170°C and pressures up to 1.0 MPa, making it ideal for high-temperature and high-pressure applications. Its zero differential pressure pilot-operated diaphragm design provides stable performance, while the IP65-rated enclosure offers protection against dust and water jets. Suitable for various fluid control systems, the VXP2380S-14 delivers consistent, leak-free performance for long-term operational reliability.
Compact valve designed for steam, air, and water control applications
Durable body made of aluminum, brass (C37), and stainless steel
Ensures zero leakage with water pressure
IP65-rated enclosure for dust-tight and water-resistant protection
Operates efficiently under temperatures up to 170°C
Supports a wide voltage range (AC/DC) for versatile use
Unrestricted mounting position for easy installation
Zero differential pressure pilot-operated diaphragm construction
Product Specifications
Type
solenoid valve
ambient temperature
0 – 170°c
atmosphere
for non-corrosive and non-explosive environments
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (equivalent to ip65)
fluid compatibility
air, water, pure water (excluding waste/agricultural water)
fluid temperature
1 – 60°c (no freezing)
leakage rate
0 cm³/min (with water pressure)
mounting position
unrestricted
number of ports
2 port, normally closed (nc)
port size
1(1/2)"
rated voltage
dc 24v (12v), ac 100v, 200v, 110v, 230v (optional 220v, 240v, 48v, 24v)
seal material
nbr, fkm, epdm
valve type
zero differential pressure pilot-operated 2-port diaphragm type
valve type
zero differential pressure pilot-operated 2-port diaphragm type
withstand pressure
4.5 – 140 psi / 0.03 – 1.0 mpa
Product Details
SMC VXP2380S-14 2 Ports Solenoid Valve Price in Pakistan is Rs.366,120/-. The SMC VXP2380S-14 2-Port Solenoid Valve is a compact and reliable solution designed for controlling steam, air, and water in demanding industrial environments. With its robust construction using aluminum, brass, and stainless steel materials, it ensures high durability and resistance to heat and corrosion. This valve operates efficiently under temperatures up to 170°C and pressures up to 1.0 MPa, making it ideal for high-temperature and high-pressure applications. Its zero differential pressure pilot-operated diaphragm design provides stable performance, while the IP65-rated enclosure offers protection against dust and water jets. Suitable for various fluid control systems, the VXP2380S-14 delivers consistent, leak-free performance for long-term operational reliability.
