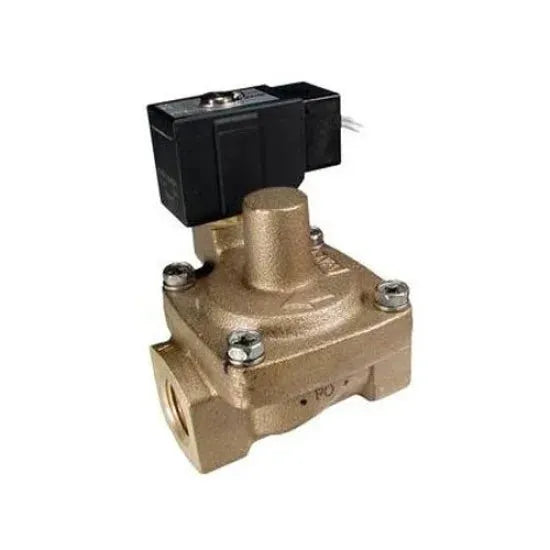

SMC VXP2390-20 2 Ports Solenoid Valve Price in Pakistan is Rs.420,840/-. The SMC VXP2390-20 2 Ports Solenoid Valve is a high-performance, compact valve designed for air and natural gas applications. Built with a durable aluminum, brass, and stainless steel body, it ensures long-term reliability in demanding industrial environments. The valve features a zero differential pressure, pilot-operated diaphragm structure that delivers smooth and stable operation even under low-pressure conditions. With IP65-rated dust-tight and water-jet-proof protection, it performs efficiently in harsh environments. Its flexible installation, wide voltage compatibility, and leak-free performance make it ideal for precision fluid control systems.
Compact 2-port solenoid valve for air and natural gas
Compatible with multiple AC/DC voltage options
Durable aluminum, brass, and stainless steel body
Flexible installation with unrestricted mounting position
IP65-rated dust-tight and water-jet-proof design
Leak-free operation under water pressure
Wide operating temperature range from 1°C to 60°C
Zero differential pressure pilot-operated diaphragm type
Product Specifications
Type
solenoid valve
ambient temperature
–20 to 60°c
application
air, natural gas
atmosphere
suitable for non-corrosive, non-explosive environments
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (ip65 equivalent)
fluid temperature
1 to 60°c (no freezing)
fluid
water, pure water (excluding waste/agricultural water)
mounting position
unrestricted
number of ports
2 port, normally closed (nc)
port size
2"
rated voltage
dc 24v (12v), ac 100v, 110v, 200v, 220v, 230v, 240v, 48v, 24v (50/60hz)
seal material
nbr, fkm, epdm
valve construction
zero differential pressure type pilot-operated 2-port diaphragm
valve leakage
0 cm³/min (with water pressure)
withstand pressure
4.5 ~ 140 psi / 0.03 ~ 1.0 mpa
Product Details
SMC VXP2390-20 2 Ports Solenoid Valve Price in Pakistan is Rs.420,840/-. The SMC VXP2390-20 2 Ports Solenoid Valve is a high-performance, compact valve designed for air and natural gas applications. Built with a durable aluminum, brass, and stainless steel body, it ensures long-term reliability in demanding industrial environments. The valve features a zero differential pressure, pilot-operated diaphragm structure that delivers smooth and stable operation even under low-pressure conditions. With IP65-rated dust-tight and water-jet-proof protection, it performs efficiently in harsh environments. Its flexible installation, wide voltage compatibility, and leak-free performance make it ideal for precision fluid control systems.
