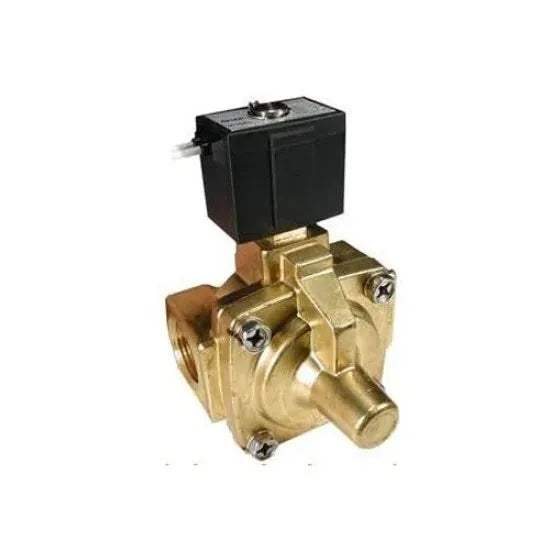

SMC VXP2390S-20 2 Ports Solenoid Valve Price in Pakistan is Rs.295,560/-. The SMC VXP2390S-20 2-Port Solenoid Valve is a compact, high-performance solution designed for controlling air, water, and steam applications in industrial environments. Built with durable materials such as aluminum, brass (C37), and stainless steel, it ensures excellent resistance to heat, corrosion, and wear. With an operating temperature range up to 170°C and a maximum pressure of 1.0 MPa, this valve delivers reliable control for demanding systems. Its zero differential pressure pilot-operated diaphragm design guarantees smooth operation and zero leakage under water pressure. The IP65-rated enclosure provides strong protection against dust and water jets, making it ideal for heavy-duty use. Engineered for efficiency, durability, and versatility, the VXP2390S-20 is a dependable choice for industrial steam, air, and water control systems.
Compact valve designed for steam, air, and water control applications
Durable body made of aluminum, brass (C37), and stainless steel
Ensures zero leakage with water pressure
IP65-rated enclosure for dust-tight and water-resistant protection
Operates efficiently under temperatures up to 170°C
Supports a wide voltage range (AC/DC) for versatile use
Unrestricted mounting position for easy installation
Zero differential pressure pilot-operated diaphragm construction
Product Specifications
Type
solenoid valve
ambient temperature
0 – 170°c
atmosphere
non-corrosive, non-explosive environment
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (equivalent to ip65)
fluid compatibility
air, water, pure water (excluding waste/agricultural water)
fluid temperature
1 – 60°c (no freezing)
leakage rate
0 cm³/min (with water pressure)
mounting position
unrestricted
number of ports
2 port, normally closed (nc)
port size
2"
rated voltage
dc 24v (12v), ac 100v, 200v, 110v, 230v (optional 220v, 240v, 48v, 24v)
seal material
nbr, fkm, epdm
valve construction
zero differential pressure pilot-operated 2-port diaphragm type
withstand pressure
4.5 – 140 psi / 0.03 – 1.0 mpa
Product Details
SMC VXP2390S-20 2 Ports Solenoid Valve Price in Pakistan is Rs.295,560/-. The SMC VXP2390S-20 2-Port Solenoid Valve is a compact, high-performance solution designed for controlling air, water, and steam applications in industrial environments. Built with durable materials such as aluminum, brass (C37), and stainless steel, it ensures excellent resistance to heat, corrosion, and wear. With an operating temperature range up to 170°C and a maximum pressure of 1.0 MPa, this valve delivers reliable control for demanding systems. Its zero differential pressure pilot-operated diaphragm design guarantees smooth operation and zero leakage under water pressure. The IP65-rated enclosure provides strong protection against dust and water jets, making it ideal for heavy-duty use. Engineered for efficiency, durability, and versatility, the VXP2390S-20 is a dependable choice for industrial steam, air, and water control systems.
