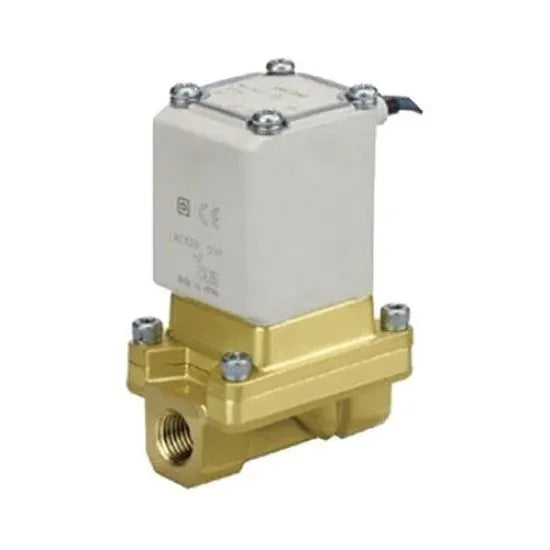

SMC VXZ242F 2 Ports Solenoid Valve Price in Pakistan is Rs.98,280/-. The SMC VXZ242F 2-Port Solenoid Valve is a compact and durable solution engineered for precise control of air and water flow in industrial systems. Built with high-quality materials including aluminum, brass, stainless steel, and advanced sealing elements (NBR, FKM, EPDM), it ensures long-term reliability and resistance to corrosion. With an IP65-rated enclosure, the VXZ242F is both dust-tight and water-jet-proof, making it ideal for demanding environments. Designed with a zero differential pressure pilot-operated diaphragm, it offers smooth operation and complete shutoff with zero leakage. The valve supports multiple AC and DC voltage options, providing flexibility across various installation needs.
Compact 2-port solenoid valve for air and water applications
1/2 inch port size with unrestricted mounting position
Durable construction using aluminum, brass, and stainless steel
IP65 dust-tight and water-jet-proof enclosure
Operates in temperatures from –20°C to 60°C
Reliable sealing with NBR, FKM, and EPDM materials
Supports both AC and DC voltage options
Zero differential pressure pilot-operated diaphragm design
Zero leakage under water pressure
Product Specifications
Type
solenoid valve
ambient temperature
–20 to 60°c
atmosphere
non-corrosive, non-explosive environments
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (ip65 equivalent)
fluid temperature
1 to 60°c (no freezing)
fluid type
air, water, pure water (excluding waste or agricultural water)
leakage
0 cm³/min (with water pressure)
mounting position
unrestricted
number of ports
2 port, nc
port size
1/2 inch
rated voltage
dc 24v (12v optional), ac 100v, 110v, 200v, 230v (others optional)
seal material
nbr, fkm, epdm
valve construction
zero differential pressure type pilot-operated diaphragm
withstand pressure
0–145 psi / 0–1.0 mpa
Product Details
SMC VXZ242F 2 Ports Solenoid Valve Price in Pakistan is Rs.98,280/-. The SMC VXZ242F 2-Port Solenoid Valve is a compact and durable solution engineered for precise control of air and water flow in industrial systems. Built with high-quality materials including aluminum, brass, stainless steel, and advanced sealing elements (NBR, FKM, EPDM), it ensures long-term reliability and resistance to corrosion. With an IP65-rated enclosure, the VXZ242F is both dust-tight and water-jet-proof, making it ideal for demanding environments. Designed with a zero differential pressure pilot-operated diaphragm, it offers smooth operation and complete shutoff with zero leakage. The valve supports multiple AC and DC voltage options, providing flexibility across various installation needs.
