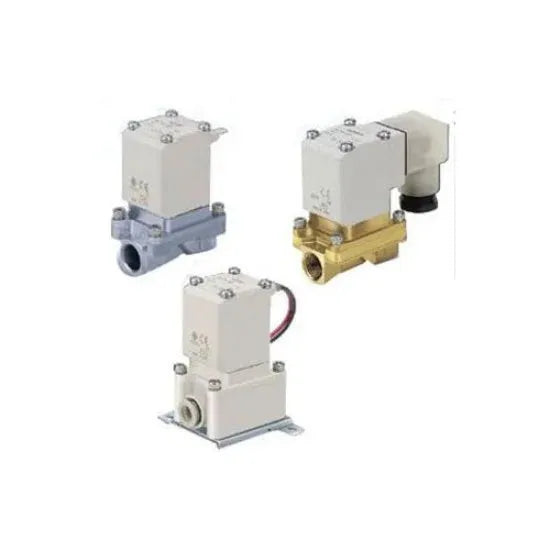

SMC VXZ250H 2 Ports Solenoid Valve Price in Pakistan is Rs.122,472/-. The SMC VXZ250H 2 Ports Solenoid Valve is a high-performance and compact valve designed for controlling air and natural gas flow in industrial systems. Built with a durable combination of aluminum, brass, and stainless steel, this valve ensures reliable performance and long service life. Its zero differential pressure diaphragm construction provides stable operation and zero leakage under water pressure, while the IP65 dust-tight and water-jet-proof enclosure enhances durability in harsh environments. Suitable for use across a wide temperature range, the VXZ250H is ideal for applications requiring precise and dependable fluid control.
Compact design for air and natural gas applications
Durable aluminum, brass, and stainless steel construction
IP65 dust-tight and water-jet-proof enclosure
Multiple AC/DC voltage options for versatile use
Unrestricted mounting position for flexible installation
Wide operating temperature range from –20°C to 60°C
Zero differential pressure pilot operated diaphragm type
Zero leakage under water pressure
Product Specifications
Type
solenoid valve
ambient temperature
–20 to 60°c
application
air, natural gas
atmosphere
suitable for non-corrosive and non-explosive environments
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (ip65)
fluid temperature
1 to 60°c (no freezing)
fluid
water, pure water (except waste or agricultural water)
mounting position
unrestricted
number of ports
2 port, normally closed (nc)
port size
3/4"
rated voltage
dc 24v (12v), ac 100v, 110v, 200v, 220v, 230v, 240v, 48v, 24v (50/60hz)
seal material
nbr, fkm, epdm
valve construction
zero differential pressure pilot operated 2-port diaphragm type
valve leakage
0 cm³/min (with water pressure)
withstand pressure
0 ~ 140 psi / 0 ~ 1.0 mpa
Product Details
SMC VXZ250H 2 Ports Solenoid Valve Price in Pakistan is Rs.122,472/-. The SMC VXZ250H 2 Ports Solenoid Valve is a high-performance and compact valve designed for controlling air and natural gas flow in industrial systems. Built with a durable combination of aluminum, brass, and stainless steel, this valve ensures reliable performance and long service life. Its zero differential pressure diaphragm construction provides stable operation and zero leakage under water pressure, while the IP65 dust-tight and water-jet-proof enclosure enhances durability in harsh environments. Suitable for use across a wide temperature range, the VXZ250H is ideal for applications requiring precise and dependable fluid control.
