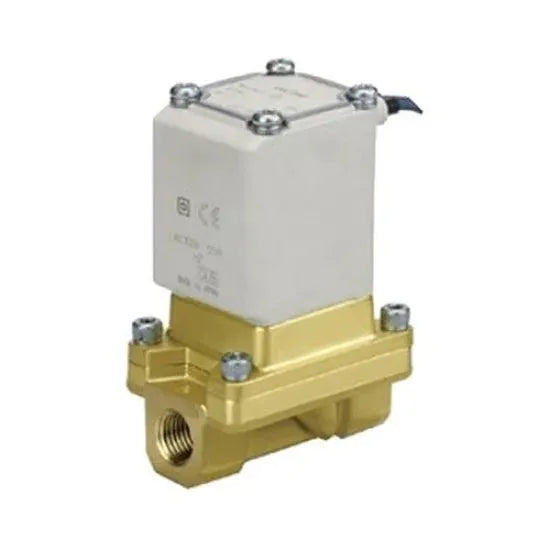

SMC VXZ252H 2 Ports Solenoid Valve Price in Pakistan is Rs.122,760/-. The SMC VXP252H 2-Port Solenoid Valve is a compact, high-performance valve designed for precise control of air and water flow in various industrial applications. Built with a robust combination of aluminum, brass (C37), stainless steel, and high-quality sealing materials like NBR, FKM, and EPDM, this valve ensures long-term durability and resistance to corrosion. Its IP65-rated enclosure provides excellent protection against dust and water jets, making it ideal for harsh environments. Featuring a zero differential pressure, pilot-operated diaphragm construction, it delivers stable operation and zero leakage performance. With multiple AC and DC voltage options and a 3/4" port size, the VXP252H offers versatility and reliability for both air and water control systems.
Compact 2-port solenoid valve suitable for air and water applications
3/4 inch port size with unrestricted mounting position
Ideal for clean and controlled environments
IP65 dust-tight and water-jet-proof protection
Operates efficiently between –20°C and 60°C
Reliable sealing with NBR, FKM, and EPDM materials
Strong body construction with aluminum, brass, and stainless steel materials
Supports multiple voltage options (AC and DC)
Zero differential pressure pilot-operated diaphragm design
Zero leakage under water pressure
Product Specifications
Type
solenoid valve
ambient temperature
–20 to 60°c
atmosphere
non-corrosive, non-explosive environments
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (ip65 equivalent)
fluid temperature
1 to 60°c (no freezing)
fluid type
air, water, pure water (excluding waste or agricultural water)
leakage
0 cm³/min (with water pressure)
mounting position
unrestricted
number of ports
2 port, nc
port size
3/4 inch
rated voltage
dc 24v (12v optional), ac 100v, 110v, 200v, 230v (other voltages optional)
seal material
nbr, fkm, epdm
valve construction
zero differential pressure type pilot-operated diaphragm
withstand pressure
0–140 psi / 0–1.0 mpa
Product Details
SMC VXZ252H 2 Ports Solenoid Valve Price in Pakistan is Rs.122,760/-. The SMC VXP252H 2-Port Solenoid Valve is a compact, high-performance valve designed for precise control of air and water flow in various industrial applications. Built with a robust combination of aluminum, brass (C37), stainless steel, and high-quality sealing materials like NBR, FKM, and EPDM, this valve ensures long-term durability and resistance to corrosion. Its IP65-rated enclosure provides excellent protection against dust and water jets, making it ideal for harsh environments. Featuring a zero differential pressure, pilot-operated diaphragm construction, it delivers stable operation and zero leakage performance. With multiple AC and DC voltage options and a 3/4" port size, the VXP252H offers versatility and reliability for both air and water control systems.
