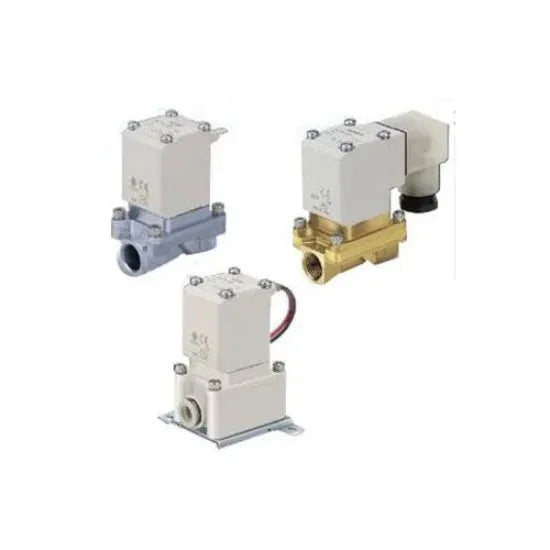

SMC VXZ260K 2 Ports Solenoid Valve Price in Pakistan is Rs.143,640/-. The SMC VXZ260K 2 Ports Solenoid Valve is a compact and efficient solution designed for controlling air and natural gas flow in industrial and commercial applications. With a rugged construction featuring aluminum, brass, and stainless steel materials, this valve offers excellent durability and resistance to wear. Its zero differential pressure, pilot-operated diaphragm design ensures stable and leak-free performance, while the IP65 dust-tight and water-jet-proof enclosure provides superior protection in demanding environments. The VXZ260K operates across a wide range of voltages and temperatures, making it a versatile choice for reliable fluid control systems.
Compact valve suitable for air and natural gas applications
IP65 dust-tight and water-jet-proof enclosure for durability
Multiple AC/DC voltage options for flexible installation
Robust aluminum, brass, and stainless steel body construction
Unrestricted mounting position for easy setup
Wide temperature range from –20°C to 60°C
Zero differential pressure pilot-operated diaphragm design
Zero leakage performance under water pressure
Product Specifications
Type
solenoid valve
ambient temperature
–20 to 60°c
application
air, natural gas
atmosphere
non-corrosive, non-explosive environment
body material
aluminum, resin, brass (c37), stainless steel
enclosure
dust-tight, water-jet-proof (ip65 equivalent)
fluid temperature
1 to 60°c (no freezing)
fluid
water, pure water (except waste/agricultural water)
mounting position
unrestricted
number of ports
2 port, normally closed (nc)
port size
1"
rated voltage
dc 24v (12v), ac 100v, 110v, 200v, 220v, 230v, 240v, 48v, 24v (50/60hz)
seal material
nbr, fkm, epdm
valve construction
zero differential pressure type pilot-operated 2-port diaphragm
valve leakage
0 cm³/min (with water pressure)
withstand pressure
0 ~ 140 psi / 0 ~ 1.0 mpa
Product Details
SMC VXZ260K 2 Ports Solenoid Valve Price in Pakistan is Rs.143,640/-. The SMC VXZ260K 2 Ports Solenoid Valve is a compact and efficient solution designed for controlling air and natural gas flow in industrial and commercial applications. With a rugged construction featuring aluminum, brass, and stainless steel materials, this valve offers excellent durability and resistance to wear. Its zero differential pressure, pilot-operated diaphragm design ensures stable and leak-free performance, while the IP65 dust-tight and water-jet-proof enclosure provides superior protection in demanding environments. The VXZ260K operates across a wide range of voltages and temperatures, making it a versatile choice for reliable fluid control systems.
