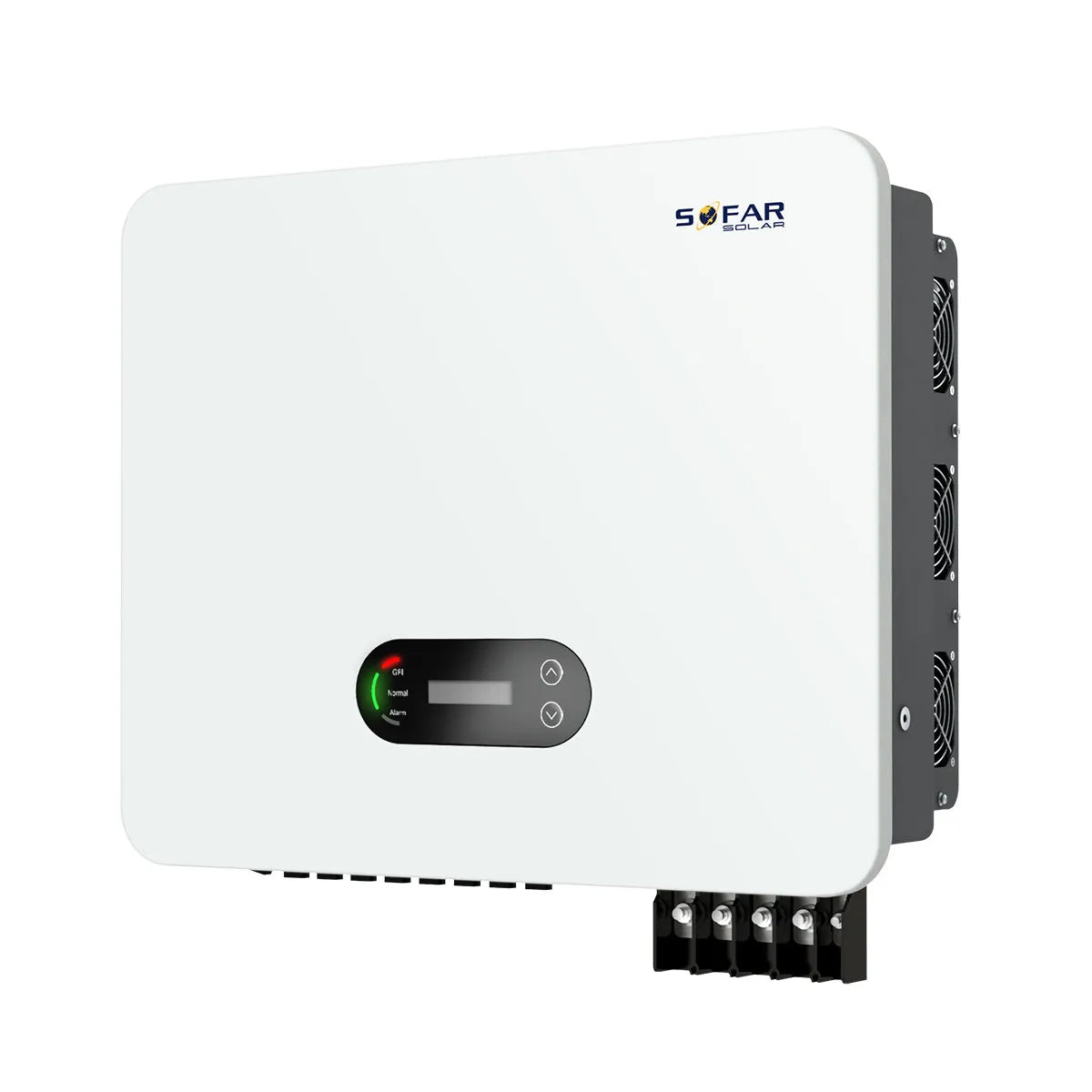

Sofar 50KTLX-G3 Three Phase On Grid Inverter

Name: Sofar 50KTLX-G3 Three Phase On Grid Inverter
Brand: Sofar
SKU: SOFAR-50KTLX-G3
Availability: OutOfStock

Price On Request

Rs.0 PKR

Sale

Note: COD availability and shipping charges depend on product category and weight; heavy-weight items are charged as per logistics rates.

Type	on grid solar inverter
input power	75000
max dc power for single mppt(w)	25000
number of mpp trackers	4
number of dc inputs	2 for each mppt
number of dc inputs	1100
start-up voltage	200
rated input voltage(v)	620
mppt operating voltage range(v)	18-1000
full power mppt voltage range(v)	540-850
max. input mppt current(a)	4*40
max. input short circuit current per mppt(a)	4*50
rated power(w)	50000
max, ac power(va)	55000
max. output current(a)	83.3
rated gird voltage	310- 480 vac (according to local standard)
active power adjustable range	0-100%
frid frequency range	45 hz-55 hz/ 55 hz- 65 hz (according to local standard)
thdi	<3%
power factor	1 default (adjustable=/0.8)
max efficiency	98.80%
european efficiency	98.20%
dc reverse polarity protection	yes
anti-islanding protection	yes
leakage current protection	yes
ground fault monitoring	yes
feed-in limitation function	yes
dc switch	optional
input/output spd	pv; type ii standard, ac; type ii standard
standard communication mode	rs485/bluetooth optional; wifi/ethernet
ambient temperature range	-30-=60
self consumption at night(w)	<3
topology	transformerless
degree of protection	ip65
allowable relative humidity range	0-100%
max. operating altitude	400m
noise	<60 db
weight	36 kg
cooling	fan
dimension	585480220
display	lcd, app via bluetooth
emc	en 61000-6-1, en 61000-6-2, en 61000-6-3, en 61000-6-4
safety standards	iec 62109-1/2, iec 62116, iec 61727, iec 61683, iec 60068(1,2,14,30), iec 60255
gird standards	vde v 0124-100, v 0126-1-1, vde-ar-n 4105, cei 0-21/cei 0-16, une 206 007-1, en 50549, g98/g99, en 50530
