Solis 10KW 3 Phase High Voltage Hybrid Solar Inverter Price In Pakistan
  • Solis 10KW 3 Phase High Voltage Hybrid Solar Inverter Price In Pakistan
Solis 10KW 3 Phase High Voltage Hybrid Solar Inverter
Availability: In Stock

Solis 10KW 3 Phase High Voltage Hybrid Solar Inverter

Product SKU: S6-EH3P10K
Rs.450,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Three Phase High Voltage Hybrid Solar Inverter
Rated Output Power 10 kW
Maximum Apparent Output Power 10 kVA
Recommended Max. PV Array Size 20 kW
Maximum Usable PV Input Power 16 kW
Maximum PV Input Voltage 1000 V
Rated PV Voltage 600 V
Start-Up Voltage 160 V
MPPT Voltage Range 200 – 850 V
Number of MPPTs 4
Maximum Input Current 4 × 16 A
Maximum Short Circuit Current 4 × 24 A
Maximum Input Strings 4
Battery Type Lithium-Ion
Battery Voltage Range 120 – 600 V
Maximum Charge Power 10 kW
Maximum Discharge Power 10 kW
Maximum Charge/Discharge Current 50 A
Battery Communication CAN / RS485
Rated Grid Voltage 3/N/PE, 380 V / 400 V
Grid Frequency 50 Hz / 60 Hz
Rated Grid Output Current 15.2 A / 14.4 A
Maximum Output Current 15.2 A / 14.4 A
Power Factor > 0.99
THDi < 3%
AC Input Voltage Range 304 – 437 V / 320 – 460 V
Maximum AC Input Current 22.7 A / 21.7 A
Frequency Range 45 – 55 Hz / 55 – 65 Hz
Rated Backup Output Power 10 kW
Peak Backup Power 1.6 × Rated Power (60 Seconds)
Backup Switching Time < 10 ms
Backup Output Voltage 380 V / 400 V
Backup Output Frequency 50 Hz / 60 Hz
Backup Output Current 15.2 A / 14.4 A
THDv (@ Linear Load) < 2%
Maximum Efficiency 97.90%
European Efficiency 97.51%
Battery Charging Efficiency (PV) 98.31%
Battery Charge/Discharge to AC Efficiency 97.50%
Anti-Islanding Protection Yes
Output Overcurrent Protection Yes
Short Circuit Protection Yes
Surge Protection DC Type II / AC Type II (Optional)
Integrated AFCI 2.0 Optional
Integrated DC Switch Yes
DC Reverse Polarity Protection Yes
PV Over Voltage Protection Yes
Battery Reverse Protection Yes
Maximum Phase Imbalance 100%
Maximum Power Per Phase 50% Rated Power
Dimensions (W × H × D) 600 × 500 × 230 mm
Weight 30.2 kg

Key Features

10KW Three Phase Hybrid Inverter
4 MPPT Design
160% PV Oversizing Support
High Voltage Battery Compatible
<10ms Backup Switching
97.9% Maximum Efficiency
Supports Up to 6 Units in Parallel
Generator Compatible
IP66 Protection
SolisCloud Monitoring
Product Details Reviews Shipping & Returns User Manual

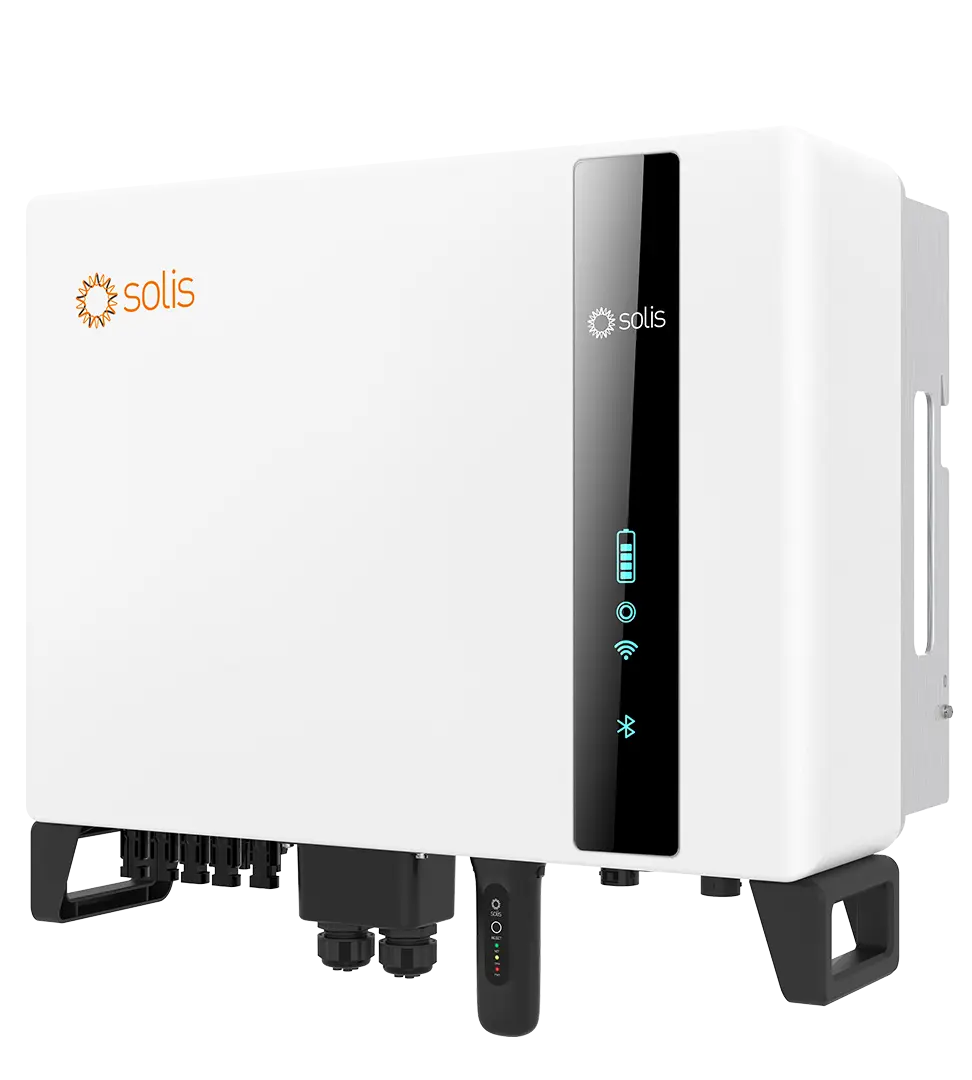

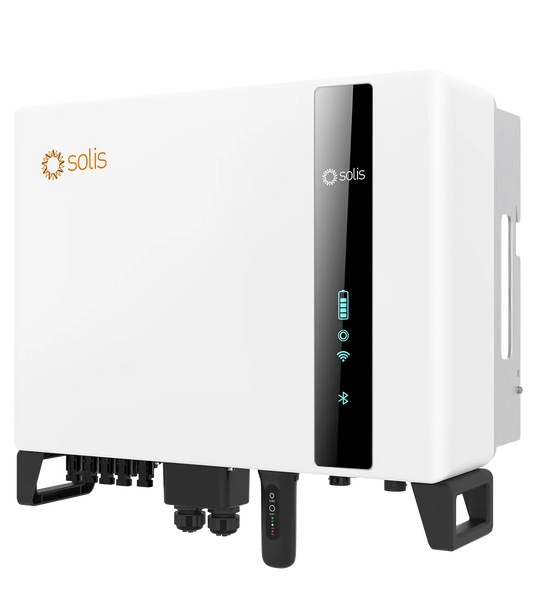

Solis 10KW 3 Phase High Voltage Hybrid Solar Inverter

The Solis S6-EH3P10K-H-EU is a powerful 10KW Three Phase High Voltage Hybrid Solar Inverter designed for residential and commercial energy storage applications. Built with advanced hybrid technology, it seamlessly integrates solar generation, battery storage, grid power, and backup functionality to maximize energy independence and efficiency.

Featuring 4 MPPTs, support for 160% PV oversizing, and compatibility with high-voltage lithium batteries, this inverter delivers exceptional solar harvesting performance. The ultra-fast <10ms transfer time ensures uninterrupted power during grid outages, while support for up to 6 units in parallel allows future system expansion.

With intelligent energy management through SolisCloud, IP66 protection, generator compatibility, and three-phase unbalanced output support, the Solis 10KW Hybrid Inverter is an ideal solution for smart, reliable, and scalable solar energy systems.

Solis 10KW 3 Phase High Voltage Hybrid Solar Inverter Price In Pakistan
Solis 10KW 3 Phase High Voltage Hybrid Solar Inverter
Looking to purchase Solis 10KW 3 Phase High Voltage Hybrid Solar Inverter in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
