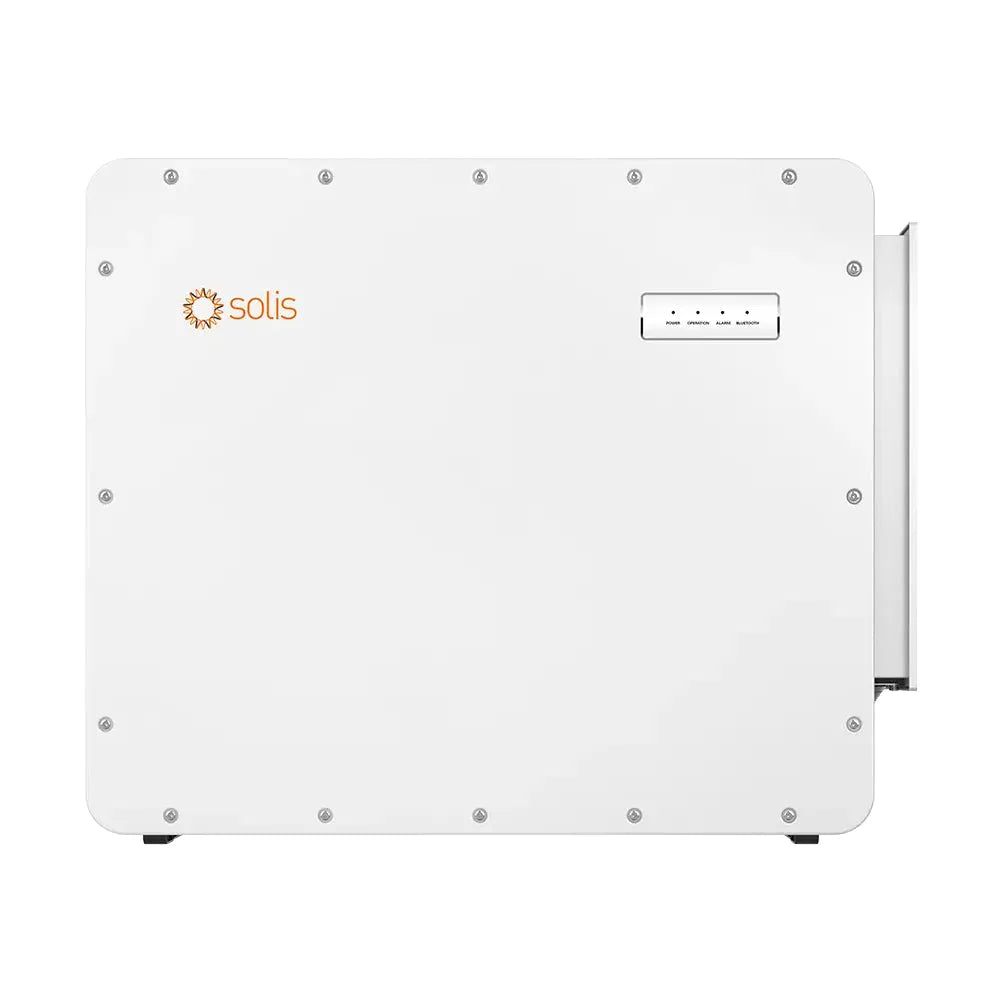

Solis 150KW 3 Phase On-Grid Solar Inverter Price In Pakistan
  • Solis 150KW 3 Phase On-Grid Solar Inverter Price In Pakistan
Solis 150KW 3 Phase On-Grid Solar Inverter
Availability: In Stock

Solis 150KW 3 Phase On-Grid Solar Inverter

Product SKU: Solis-150Ktl
Rs.1,300,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Three Phase Grid-Tied Inverter
Rated Output Power 150 kW
Maximum Output Power 165 kW
Maximum Apparent Output Power 165 kVA
Maximum Input Voltage 1100 V
Rated DC Voltage 600 V
Start-Up Voltage 180 V
MPPT Voltage Range 160 – 1000 V
Number of MPPTs 7
Maximum Input Current 7 × 54 A
Maximum Short Circuit Current 7 × 75 A
Maximum Input Strings 21
MPPT / String Configuration 7 MPPTs / 21 Strings
Rated Grid Voltage 3/N/PE, 220V/380V, 230V/400V
Rated Grid Frequency 50Hz / 60Hz
Rated Output Current 216.5A / 227.9A
Maximum Output Current 250.6A
Power Factor > 0.99 (0.8 Leading ~ 0.8 Lagging)
THDi < 3%
Maximum Efficiency 98.8%
European Efficiency 98.3%
DC Reverse Polarity Protection Yes
Short Circuit Protection Yes
Output Over Current Protection Yes
Surge Protection DC Type II / AC Type II
Grid Monitoring Yes
Anti-Islanding Protection Yes
Temperature Protection Yes
String Monitoring Yes
I/V Curve Scanning Yes
Integrated AFCI 2.0 Optional
Integrated PID Recovery Optional
Integrated DC Switch Yes
Dimensions (W × H × D) 1035.5 × 869 × 396 mm
Weight 105 kg
Topology Transformerless
Night Self-Consumption < 2 W
Operating Temperature Range -30°C to +60°C
Relative Humidity 0% – 100%
Ingress Protection IP66
Cooling Method Intelligent Fan Cooling
Maximum Operating Altitude 4000 m
DC Connection MC4 Connector
AC Connection OT Terminal (Max. 400 mm²)

Key Features

150KW Three Phase Grid-Tied Solar Inverter
7 Independent MPPT Trackers
Maximum Efficiency up to 98.8%
European Efficiency up to 98.3%
Supports More Than 150% DC/AC Ratio
54A Maximum Input Current per MPPT
Compatible with High-Power & Bifacial Solar Modules
Intelligent String Monitoring
Smart I-V Curve Scanning
Export Power Control Function
Remote Firmware Upgrade
IP66 Protection Rating
Intelligent Fan Cooling
Integrated DC Switch
Optional AFCI 2.0 Arc Fault Protection
Optional PID Recovery Function
Supports Power Line Communication (PLC)
Supports DC Side "Y" Connector
Transformerless Design
Suitable for Commercial & Industrial Solar Projects
Product Details Reviews Shipping & Returns User Manual

Solis 150KW 3 Phase On-Grid Solar Inverter

The Solis S6-GC3P150K07-NV-ND 150KW Three Phase Grid-Tied Inverter is a powerful commercial and industrial solar inverter designed to deliver exceptional energy conversion efficiency and reliable long-term performance. Equipped with 7 MPPTs, a maximum efficiency of 98.8%, and support for over 150% DC/AC ratio, this inverter is engineered to maximize energy harvest from modern high-power and bifacial solar modules.

Built for large-scale commercial and utility applications, the inverter supports 54A input current per MPPT, intelligent string monitoring, smart I-V curve scanning, export power control, and remote firmware upgrades. Its IP66-rated enclosure, intelligent fan cooling system, and optional AFCI and PID recovery functions ensure safe and dependable operation even in demanding environmental conditions.

The Solis 150KW inverter combines advanced monitoring capabilities, robust protection features, and industry-leading efficiency, making it an ideal solution for commercial rooftops, industrial facilities, and large-scale solar projects.

Solis 150KW 3 Phase On-Grid Solar Inverter Price In Pakistan
Solis 150KW 3 Phase On-Grid Solar Inverter
Looking to purchase Solis 150KW 3 Phase On-Grid Solar Inverter in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
