Solis 15KW 3 Phase High Voltage Hybrid Solar Inverter Price in Pakistan
  • Solis 15KW 3 Phase High Voltage Hybrid Solar Inverter Price in Pakistan

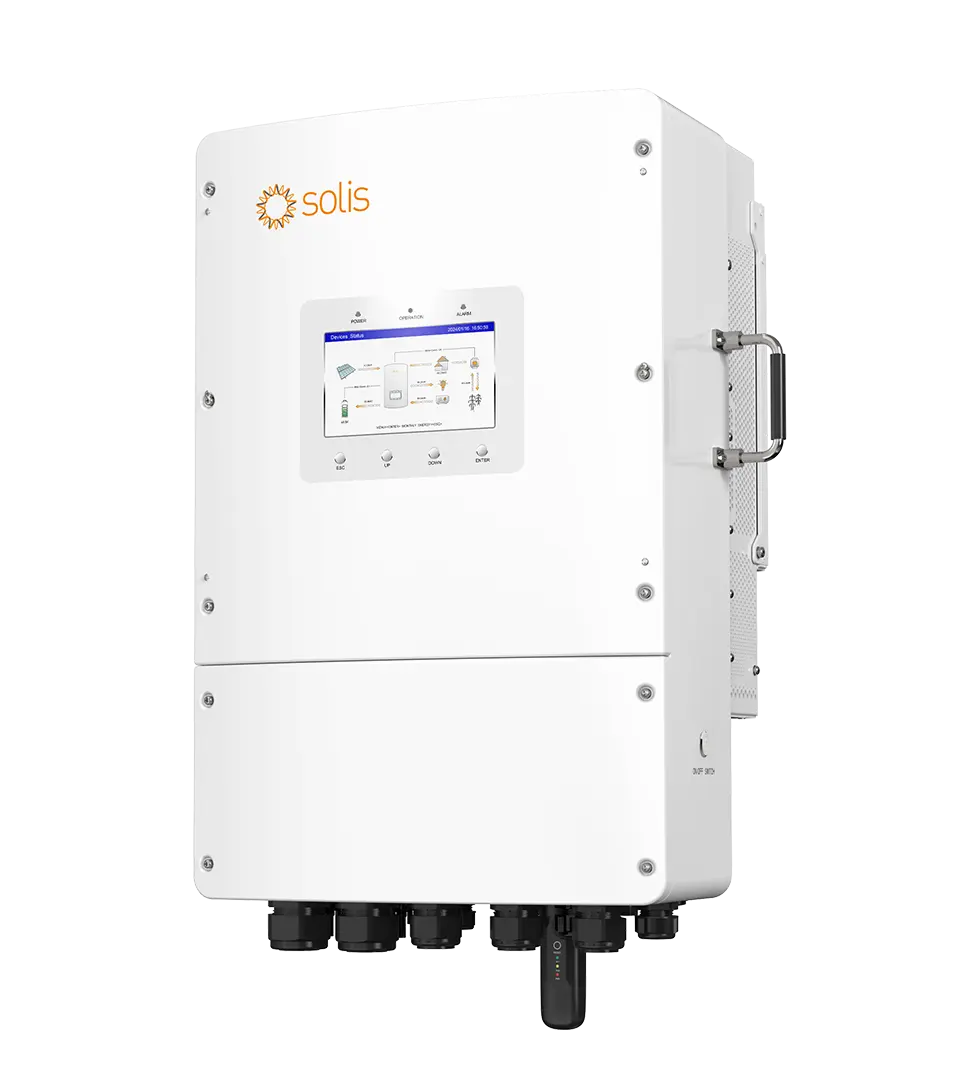

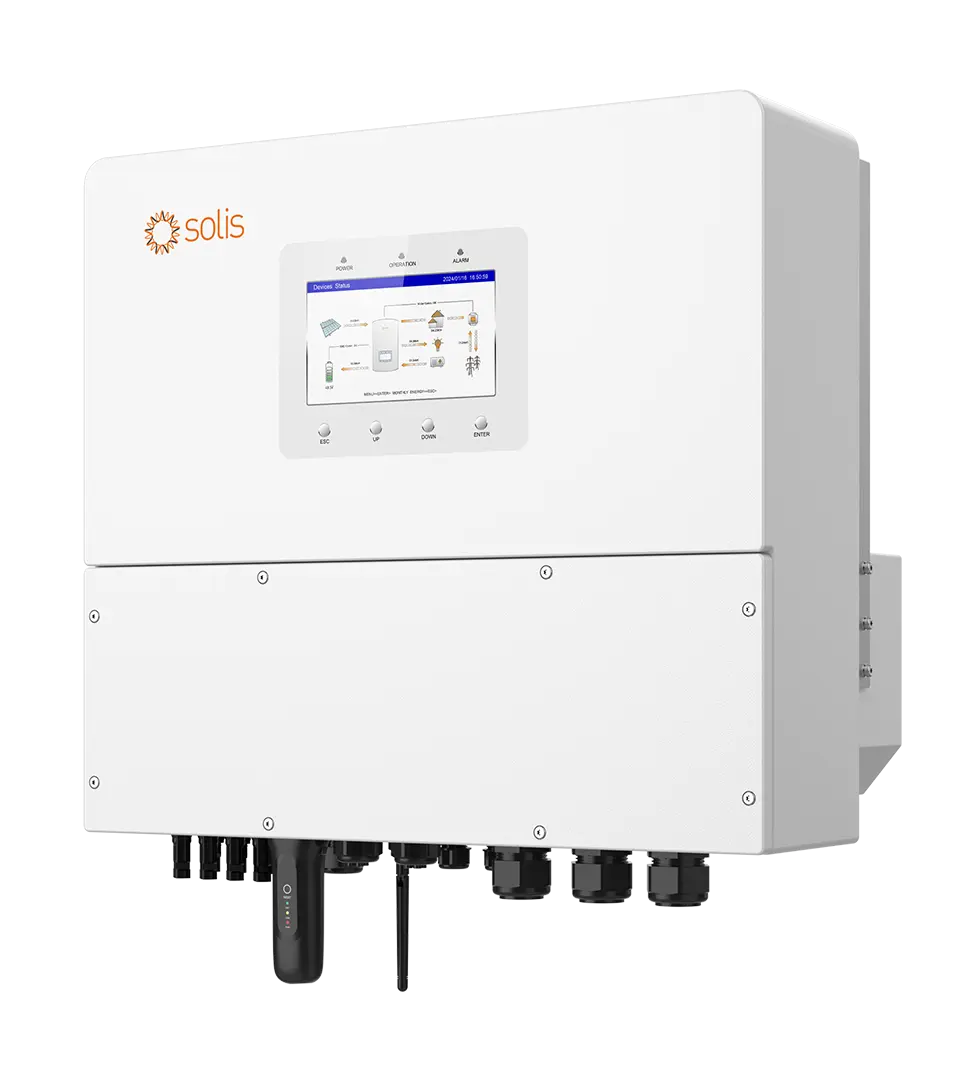

Solis 15KW 3 Phase High Voltage Hybrid Solar Inverter
Availability: In Stock

Solis 15KW 3 Phase High Voltage Hybrid Solar Inverter

Product SKU: S6-EH3P15K02
Rs.575,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Three Phase Hybrid Solar Inverter
Rated Output Power 15 kW
Maximum Apparent Output Power 15 kVA
Recommended Max. PV Array Size 30 kW
Maximum Usable PV Input Power 24 kW
Maximum PV Input Voltage 1000 V
Rated PV Voltage 550 V
Start-Up Voltage 160 V
MPPT Voltage Range 200 – 850 V
MPPT Number / Max. Input Strings 2 / 4
Maximum Input Current 40 A / 40 A
Maximum Short Circuit Current 50 A / 50 A
Battery Type Lithium-Ion / Lead-Acid
Battery Voltage Range 40 – 60 V
Maximum Charge / Discharge Current 290 A
Number of Battery Ports 2
Maximum Charge / Discharge Current Per Port 150 A
Battery Communication CAN / RS485
Rated Grid Voltage 3/N/PE, 220/380 V; 230/400 V
Grid Frequency 50 Hz
Rated Grid Output Current 22.8 A / 21.7 A
Power Factor > 0.99
THDi < 3%
Maximum AC Input Current 34.2 A / 32.5 A
Maximum Generator Input Power 15 kW
Maximum Generator Input Current 22.8 A / 21.7 A
Rated Generator Input Voltage 220/380 V; 230/400 V
Rated Generator Frequency 50 Hz
Rated Backup Output Power 15 kW
Peak Backup Output Power 30 kW (200% for 10 Seconds)
Backup Switching Time < 10 ms
Rated Backup Output Voltage 220/380 V; 230/400 V
Rated Backup Output Current 22.8 A / 21.7 A
Maximum Continuous Output Current 22.8 A / 21.7 A
Maximum AC Pass-Through Current 50 A
THDv (@ Linear Load) < 3%
Maximum Efficiency 97.5%
European Efficiency 96.4%
Battery Charging Efficiency (PV) 95.0%
Battery Charging Efficiency (AC) 94.4%
Battery Discharge Efficiency 94.5%
Anti-Islanding Protection Yes
Output Overcurrent Protection Yes
Short Circuit Protection Yes
DC Reverse Polarity Protection Yes
Surge Protection DC Type II / AC Type II (Optional)
Integrated AFCI 2.0 Optional
Integrated DC Switch Yes
Protection Class / Over Voltage Category I / II (PV & Battery), III (Grid, Backup & Generator)
Maximum Power Per Phase 40% Rated Power
Dimensions (W × H × D) 430 × 660 × 305 mm
Weight 42 kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Solis 15KW 3 Phase High Voltage Hybrid Solar Inverter

The Solis S6-EH3P15K02-NV-YD-L is a powerful 15KW Three Phase Hybrid Solar Inverter designed for advanced residential, commercial, and industrial energy storage applications. Built with low-voltage battery compatibility and intelligent energy management capabilities, this inverter maximizes solar generation while ensuring reliable backup power during grid outages.

Supporting up to 160% PV oversizing, 21A PV input current, and 200% overload capacity for 10 seconds, the inverter delivers exceptional performance even under demanding load conditions. Its ultra-fast &lt;10ms transfer time guarantees uninterrupted power supply, making it ideal for critical loads and backup applications.

The inverter supports both DC and AC coupling, generator integration, smart load management, and parallel operation of up to 6 units, providing a highly scalable energy storage solution. With a 7-inch industrial touchscreen, SolisCloud monitoring platform, and IP66-rated protection, it offers advanced control, monitoring, and long-term reliability.

Solis 15KW 3 Phase High Voltage Hybrid Solar Inverter Price in Pakistan
Solis 15KW 3 Phase High Voltage Hybrid Solar Inverter
Looking to purchase Solis 15KW 3 Phase High Voltage Hybrid Solar Inverter in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.
