Solis 20KW 3 Phase High Voltage Hybrid Solar Inverter
Availability: In Stock

Solis 20KW 3 Phase High Voltage Hybrid Solar Inverter

Product SKU: S6-EH3P20K-H
Rs.725,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Three Phase High Voltage Hybrid Solar Inverter
Rated Output Power 20 kW
Maximum Apparent Output Power 20 kVA
Recommended Max. PV Array Size 40 kW
Maximum Usable PV Input Power 32 kW
Maximum PV Input Voltage 1000 V
Rated PV Voltage 600 V
Start-Up Voltage 160 V
MPPT Voltage Range 200 – 850 V
Number of MPPTs 4
Maximum Input Current 4 × 20 A
Maximum Short Circuit Current 4 × 30 A
MPPT Number / Max. Input Strings 4 / 4
Battery Type Lithium-Ion
Battery Voltage Range 120 – 800 V
Maximum Charge / Discharge Power 20 kW
Maximum Charge / Discharge Current 50 A
Battery Communication CAN / RS485
Rated Grid Voltage 3/N/PE, 220/380 V, 230/400 V
Rated Grid Frequency 50 Hz
Rated Grid Output Current 30.4 A / 28.9 A
Maximum Output Current 30.4 A / 28.9 A
Power Factor > 0.99 (0.8 Leading – 0.8 Lagging)
THDi < 3%
Input Voltage Range 304 – 437 V / 320 – 460 V
Maximum AC Input Current 45.6 A / 43.3 A
Grid Frequency Range 45 – 55 Hz / 55 – 65 Hz
Maximum Generator Input Power 20 kW
Maximum Generator Input Current 30.4 A / 28.9 A
Rated Generator Frequency 50 Hz
Rated Backup Output Power 20 kW
Peak Backup Output Power 1.6 × Rated Power (10 Seconds)
Backup Switching Time < 10 ms
Rated Backup Output Voltage 3/N/PE, 220/380 V, 230/400 V
Rated Backup Output Current 30.4 A / 28.9 A
THDv (@ Linear Load) < 3%
Maximum Efficiency 97.7%
European Efficiency 97.5%
Battery Charging Efficiency (PV) 98.5%
Battery Charge / Discharge to AC Efficiency 97.2%
Anti-Islanding Protection Yes
Output Over Current Protection Yes
Short Circuit Protection Yes
Integrated AFCI 2.0 Optional
Integrated DC Switch Yes
DC Reverse Polarity Protection Yes
PV Over Voltage Protection Yes
Battery Reverse Protection Yes
Maximum Allowable Phase Imbalance 100%
Maximum Power Per Phase 40% Rated Power
Dimensions (W × H × D) 563 × 546 × 250 mm
Weight 35.2 kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

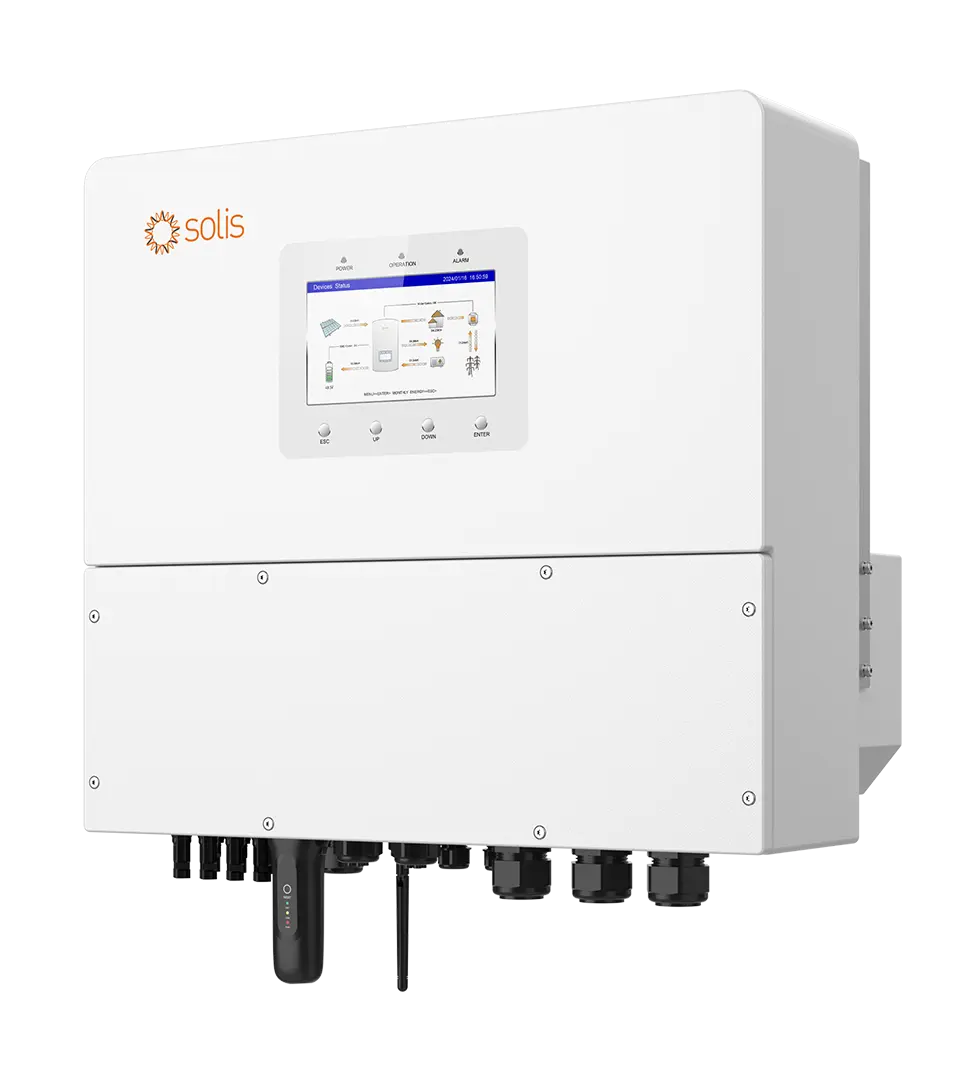

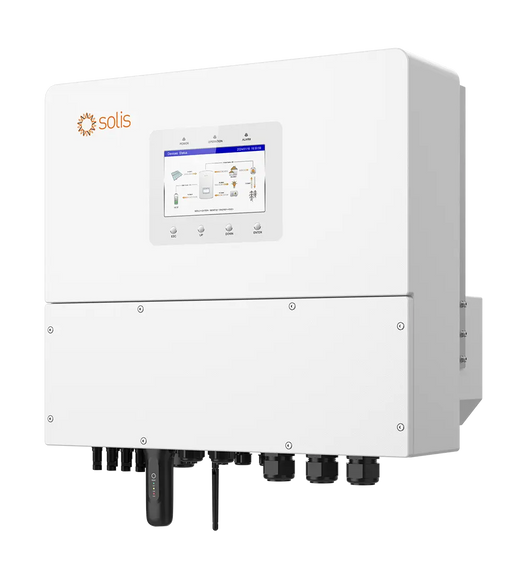

Solis 20KW 3 Phase High Voltage Hybrid Solar Inverter

The Solis S6-EH3P20K-H is a high-performance 20KW Three Phase High Voltage Hybrid Solar Inverter designed for residential, commercial, and industrial energy storage systems. Featuring advanced hybrid technology, intelligent energy management, and high-voltage battery compatibility, this inverter maximizes solar utilization while providing reliable backup power during grid outages.

Equipped with 4 MPPTs, support for 160% PV oversizing, and compatibility with high-voltage lithium batteries ranging from 120V to 800V, the inverter delivers outstanding energy harvesting and storage performance. Its ultra-fast <10ms switching time ensures uninterrupted power supply for critical loads.

The inverter supports parallel expansion, AC coupling, generator integration, three-phase unbalanced output, and seamless integration with VPP and EMS platforms. With a large 7-inch LCD touchscreen, Bluetooth configuration, intelligent fan cooling, and IP66 protection, the Solis 20KW Hybrid Inverter is a scalable and future-ready energy solution.
