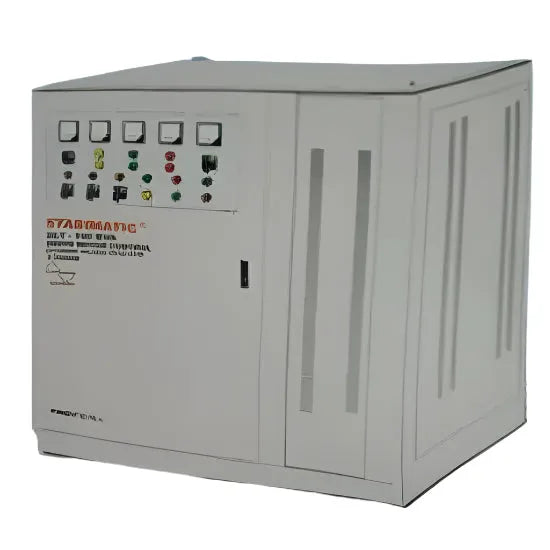

Stabimatic GLT-120S Centralized Voltage Stabilizer Price in Pakistan is Rs. 1,730,600/-. The Stabimatic GLT-120S is a high-performance centralized voltage stabilizer designed to provide reliable and consistent voltage regulation for large-scale applications. With a power rating of 120KVA, it operates in a wide input voltage range (263V-497V) and ensures an accurate output voltage of 220V/380V (+0 to 1%). The stabilizer utilizes high-speed servo motor control for ultra-fast response times, providing protection against under-voltage, over-voltage, phase failure, and more. It is ideal for use in industries, hospitals, large offices, educational institutions, and more, ensuring a safe and stable power supply for sensitive equipment.
Applications
. Hospitals . Medical/QC Laboratories . Small and Large Offices<...
Under voltage, over voltage, and phase failure protection
Surge and spike protection (optional)
Phase sequence protection
3-phase 4-wire star connection (single-phase option available)
Bypass switch included
Digital display for monitoring input/output
Auto reset system
Manual and automatic phase balancer bypass operation
Unaffected by supply frequency and load power factor
Robust steel cabinet with anti-static powder coating
Door safety switch (optional)
Ideal for hospitals, industries, malls, and more
Product Specifications
Type
voltage regulator
power capacity
120kva
input voltage
263v-497v (with optional variations)
output voltage
220v/380v (+0 to 1%)
efficiency
greater than 90%
waveform
pure sine wave
response time
within 0.3 seconds for 15% input voltage deviation
power factor
0.999 (99%)
cooling system
cross air ventilated
frequency
50hz / 60hz
insulation resistance
more than 5m ohms
surge and spike protection
optional
Product Details
Stabimatic GLT-120S Centralized Voltage Stabilizer Price in Pakistan is Rs. 1,730,600/-. The Stabimatic GLT-120S is a high-performance centralized voltage stabilizer designed to provide reliable and consistent voltage regulation for large-scale applications. With a power rating of 120KVA, it operates in a wide input voltage range (263V-497V) and ensures an accurate output voltage of 220V/380V (+0 to 1%). The stabilizer utilizes high-speed servo motor control for ultra-fast response times, providing protection against under-voltage, over-voltage, phase failure, and more. It is ideal for use in industries, hospitals, large offices, educational institutions, and more, ensuring a safe and stable power supply for sensitive equipment.
Applications
. Hospitals . Medical/QC Laboratories . Small and Large Offices . Modern Banking Systems . Independent Bungalows . Apartments and Residential Complexes . Shopping Malls . Hotels . Cooling Plants (Centralized and Split AC) . Educational Institutions (Schools, Colleges, Universities) . Sports Complexes . Light and Heavy Industries . Textile Mills and Embroidery Units . Media Stations (Radio/TV) . Airports, Seaports . Weather Forecast Facilities . Military Installations and Facilities
