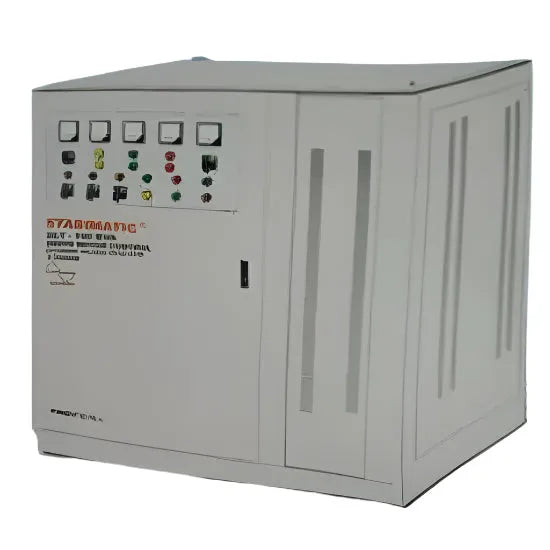

Stabimatic GLT-150S Centralized Voltage Stabilizer Price in Pakistan is Rs. 2,218,000/-. The Stabimatic GLT-150S is a high-performance three-phase centralized voltage stabilizer designed to provide continuous voltage regulation in environments with fluctuating power. It features a high-speed servo motor control system that guarantees ultra-fast response times, ensuring stable and reliable voltage output. With a wide input voltage range (263V-497V) and an output accuracy better than ±1%, it delivers a pure sine wave with negligible waveform distortion. This makes it ideal for applications that require stable voltage and protection from power line transients, including hospitals, industrial settings, and commercial enterprises.
Under voltage, over voltage, and phase failure protection
Phase sequence protection
Manual and automatic phase balancer bypass
Auto reset system
Unaffected by supply frequency and load power factor
Door safety switch (optional)
3-phase 4-wire star connection (single-phase option)
Digital display for real-time monitoring
Robust steel cabinet with anti-static powder coating
Efficient cooling system with cross air ventilation
Suitable for hospitals, offices, industrial, and commercial use
Product Specifications
Type
voltage regulator
power factor
0.999 (99%)
efficiency
better than 90%
response time
within 0.3 seconds against 15% input voltage deviation
waveform
pure sine wave
cooling system
cross air ventilated
frequency
50hz / 60hz
input voltage
154-286v / 266-496v (+/- 30%)
output voltage
220v / 380v (+/- 0 to 1%)
insulation resistance
more than 5m ohms
bypass switch
provided
Product Details
Stabimatic GLT-150S Centralized Voltage Stabilizer Price in Pakistan is Rs. 2,218,000/-. The Stabimatic GLT-150S is a high-performance three-phase centralized voltage stabilizer designed to provide continuous voltage regulation in environments with fluctuating power. It features a high-speed servo motor control system that guarantees ultra-fast response times, ensuring stable and reliable voltage output. With a wide input voltage range (263V-497V) and an output accuracy better than ±1%, it delivers a pure sine wave with negligible waveform distortion. This makes it ideal for applications that require stable voltage and protection from power line transients, including hospitals, industrial settings, and commercial enterprises.
Applications
. Hospitals . Medical/QC Laboratories . Offices (Small and Large) . Modern Banking Power Systems . Independent Bungalows and Apartments . Shopping Malls . Hotels . Split AC/Window AC Units . Centralized Cooling Plants . Educational Institutions (Schools, Colleges, Universities) . Sports Complexes . Industrial Applications (Light and . Heavy Industries, Textile Mills) . Radio/TV Stations . Airports/Seaports . Weather Forecast Facilities . Military Installations
