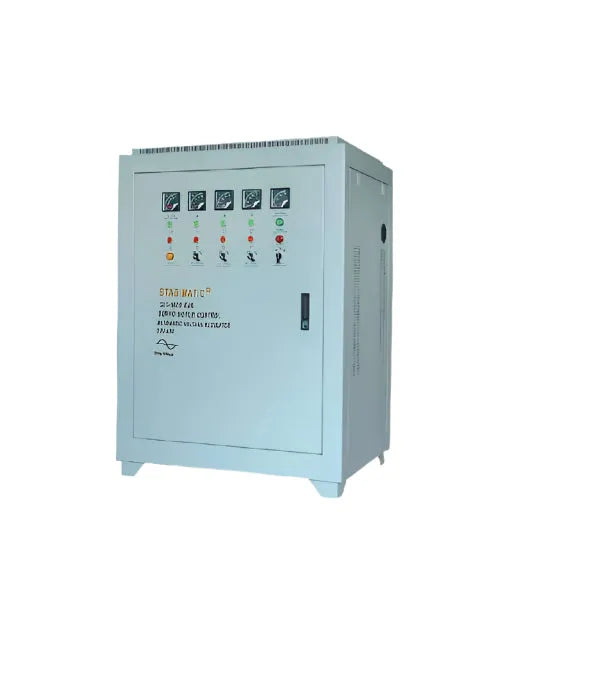

Stabimatic GLT-500S Centralized Voltage Stabilizer Price in Pakistan is Rs. 4,922,000/-. The Stabimatic GLT-500S Centralized Voltage Stabilizer is a state-of-the-art solution designed for large-scale applications requiring high-capacity, stable, and reliable voltage regulation. With a capacity of 500KVA, this stabilizer ensures that critical equipment receives a steady, precise voltage supply, protecting them from potential damage due to voltage fluctuations, spikes, or surges. The stabilizer is equipped with an advanced high-speed servo motor control system for ultra-fast response times and high accuracy. Its versatile design makes it suitable for diverse industrial, commercial, and institutional applications.
Wide three-phase input voltage range (263V to 497V)
High-speed servo motor control system with ultra-fast response time
High output accuracy of better than ±1%
Low waveform distortion (approximately 98% at full load)
Under-voltage, over-voltage, and phase failure protection
Optional surge and spike protection for added security
Manual and automatic phase balancing bypass operation
Efficient, with over 90% efficiency
Digital display for real-time status monitoring
Cooling system for optimal heat dissipation
Auto-reset and easy bypass switch functionality
Sturdy, well-ventilated steel cabinet with durable finish
Product Specifications
Type
voltage regulator
capacity
three-phase 500kva
input voltage range
263v to 497v (wide input voltage range, with optional variation)
output voltage
220v / 380v ± 0 to 1%
response time
within 0.3 seconds against a 15% input voltage deviation
power factor
0.999 (99%)
efficiency
better than 90%
frequency
50hz / 60hz
waveform
pure sine wave with negligible distortion (approximately 98% at full load)
insulation resistance
more than 5m ohms
cooling system
cross-air ventilated for effective heat dissipation
surge and spike protection
optional surge and spike protection available
phase protection
under-voltage, over-voltage, phase failure, and phase sequence protection
phase balancer
manual and automatic phase balancer bypass operation in case of system failure
auto reset system
automatically resets after faults or disturbances
bypass switch
allows for easy bypass in the event of system failure
digital display
real-time monitoring and status updates for operational transparency
high-speed servo motor control system
ensures ultra-high response speed and high accuracy with no overshoot
output accuracy
high output accuracy better than ±1%
connection type
3-phase 4-wire star connection (single-phase available)
unaffected by supply frequency
operates consistently, independent of the supply frequency
unaffected by load power factor
suitable for various types of loads, ensuring stable output
Product Details
Stabimatic GLT-500S Centralized Voltage Stabilizer Price in Pakistan is Rs. 4,922,000/-. The Stabimatic GLT-500S Centralized Voltage Stabilizer is a state-of-the-art solution designed for large-scale applications requiring high-capacity, stable, and reliable voltage regulation. With a capacity of 500KVA, this stabilizer ensures that critical equipment receives a steady, precise voltage supply, protecting them from potential damage due to voltage fluctuations, spikes, or surges. The stabilizer is equipped with an advanced high-speed servo motor control system for ultra-fast response times and high accuracy. Its versatile design makes it suitable for diverse industrial, commercial, and institutional applications.
