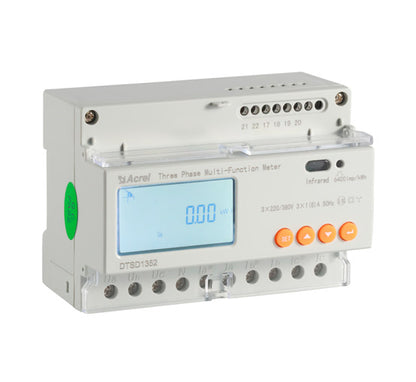

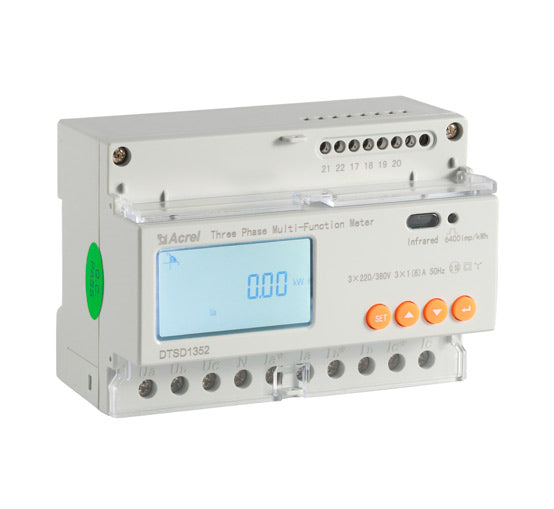

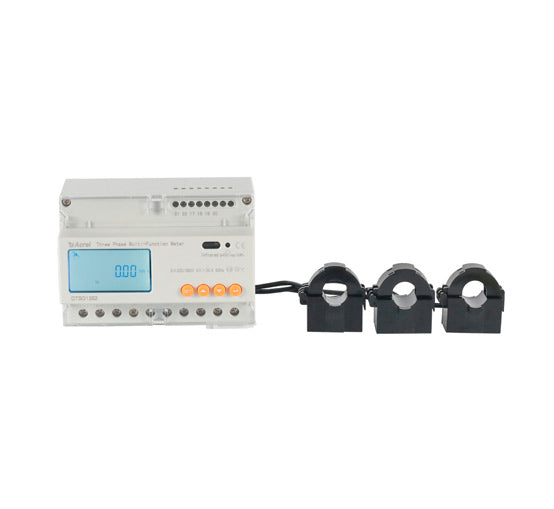

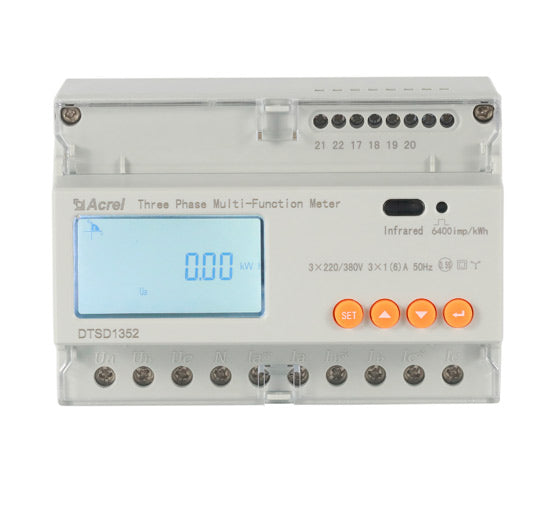

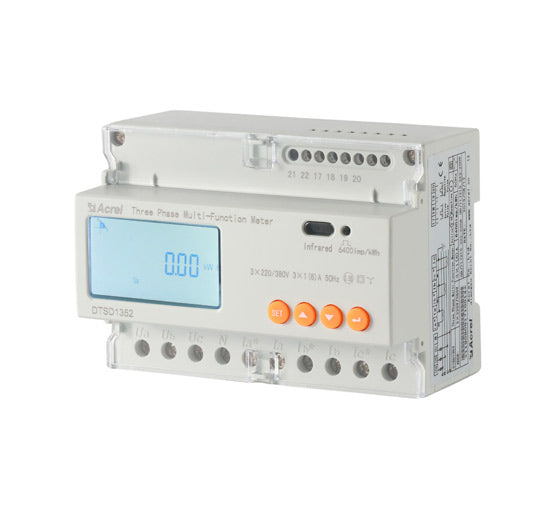

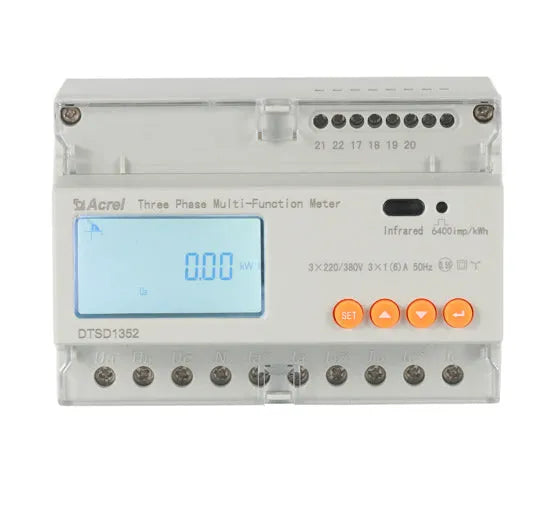

The Sungrow Acrel DTSD1352-C Smart Meter is a high-precision, multi-function energy meter designed for advanced power monitoring and management in solar systems, industrial facilities, and commercial applications. Built for accuracy and reliability, it provides comprehensive measurement of electrical parameters along with detailed energy statistics.
This DIN rail-mounted smart meter supports three-phase systems and offers real-time monitoring of voltage, current, power, and energy consumption. It also features harmonic analysis up to the 31st order, enabling better power quality assessment and system optimization.
With built-in RS485 communication and Modbus-RTU protocol, the DTSD1352-C integrates seamlessly with inverters, SCADA systems, ...
Three-phase smart energy meter for accurate monitoring
DIN rail mounting for easy installation
High accuracy Class 0.5 measurement
Supports harmonic analysis up to 31st order
Stores energy data for up to 48 months
RS485 communication with Modbus-RTU protocol
Remote signaling & remote control functionality
Alarm output support for system alerts
Suitable for solar, industrial & commercial applications
Wide operating temperature range (-25°C to 55°C)
Product Specifications
Type
smart energy meter
installation
din rail mounted
phase
three phase
reference voltage
3×57.7/100v, 3×220/380v, 3×100v, 3×380v
frequency
50hz
maximum current
6a / 80a
starting current
direct connect 0.004ib, via ct
accuracy class
0.5
power consumption
<10va (single phase), <1va (rated current)
pulse width
80 ± 20 ms
pulse constant
400 imp/kwh, 6400 imp/kwh
harmonic detection
2nd – 31st order + total harmonic
data storage
up to 48 months
functions
remote signal, remote control, alarm output
interface
rs485
protocol
modbus-rtu
operating temperature
-25°c to 55°c
storage temperature
-40°c to 70°c
humidity
=95% (non-condensing)
Product Details
The Sungrow Acrel DTSD1352-C Smart Meter is a high-precision, multi-function energy meter designed for advanced power monitoring and management in solar systems, industrial facilities, and commercial applications. Built for accuracy and reliability, it provides comprehensive measurement of electrical parameters along with detailed energy statistics.
This DIN rail-mounted smart meter supports three-phase systems and offers real-time monitoring of voltage, current, power, and energy consumption. It also features harmonic analysis up to the 31st order, enabling better power quality assessment and system optimization.
With built-in RS485 communication and Modbus-RTU protocol, the DTSD1352-C integrates seamlessly with inverters, SCADA systems, and energy management platforms. It supports remote signaling, control functions, and alarm outputs, making it ideal for intelligent energy monitoring solutions.
Capable of storing historical data for up to 48 months, this smart meter provides valuable insights for energy analysis, billing, and performance optimization.
