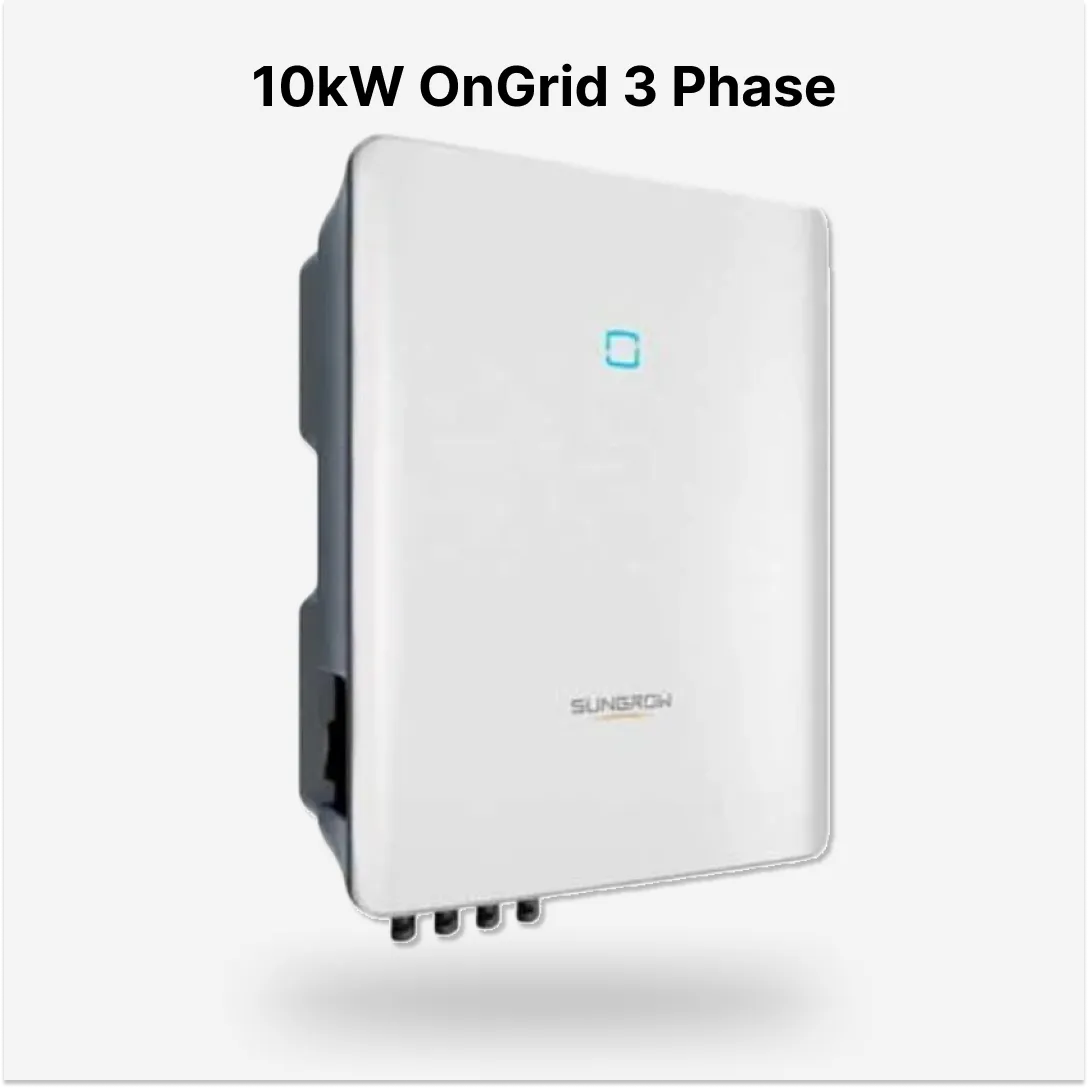

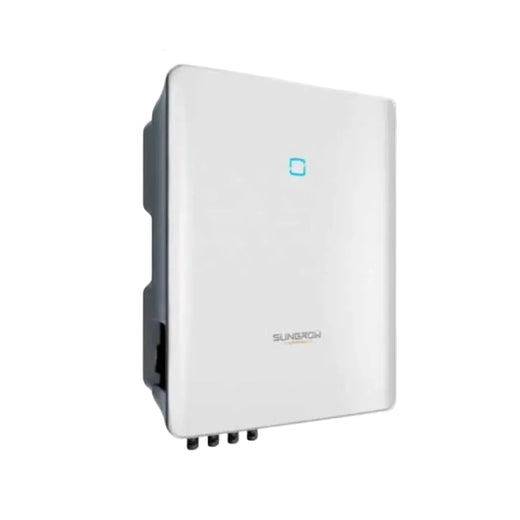

The Sungrow SG10RT 10kW On-Grid Inverter is a high-efficiency, three-phase solar solution designed for residential and small commercial applications. Built with advanced multi-MPPT technology, it maximizes energy generation while ensuring stable and reliable grid-tied performance.
Supporting up to 15 kWp PV input, this inverter is compatible with bifacial solar modules and operates across a wide MPPT voltage range (160V–1000V), offering greater flexibility in system design. With industry-leading efficiency of up to 98.5%, it ensures optimal power conversion and reduced energy loss.
The SG10RT features intelligent monitoring tools such as IV curve scanning and 24/7 real-time performance tracking. Integrated safety mechanisms including AFCI protection, Type II surge protection (AC & DC), and PID recovery ensure long-term system durability and safety.
Tool-free push-in connectors for quick installation
IP65 rated for dust & water resistance
High corrosion resistance (C5 grade)
Operates in extreme temperatures (-25°C to 60°C)
Product Specifications
Type
on-grid solar inverter
phase
three phase
recommended pv power
15 kwp
max. pv voltage
1100 v
rated pv voltage
600 v
mppt voltage range
160 – 1000 v
number of mppts
2
max. pv input current
37.5 a (25 a / 12.5 a)
max. dc short circuit current
54 a
nominal output power
9999 w (10kw)
max. apparent power
9999 va
max. ac current
15.2 a
ac voltage range
311 – 478 v
grid frequency
50 / 60 hz
Product Details
The Sungrow SG10RT 10kW On-Grid Inverter is a high-efficiency, three-phase solar solution designed for residential and small commercial applications. Built with advanced multi-MPPT technology, it maximizes energy generation while ensuring stable and reliable grid-tied performance.
Supporting up to 15 kWp PV input, this inverter is compatible with bifacial solar modules and operates across a wide MPPT voltage range (160V–1000V), offering greater flexibility in system design. With industry-leading efficiency of up to 98.5%, it ensures optimal power conversion and reduced energy loss.
The SG10RT features intelligent monitoring tools such as IV curve scanning and 24/7 real-time performance tracking. Integrated safety mechanisms including AFCI protection, Type II surge protection (AC & DC), and PID recovery ensure long-term system durability and safety.
Designed for harsh environments, it comes with IP65 protection, high corrosion resistance (C5), and a wide operating temperature range from -25°C to 60°C. Easy installation is enabled through tool-free push-in connectors, while remote firmware updates via Wi-Fi or Ethernet keep your system up to date.
