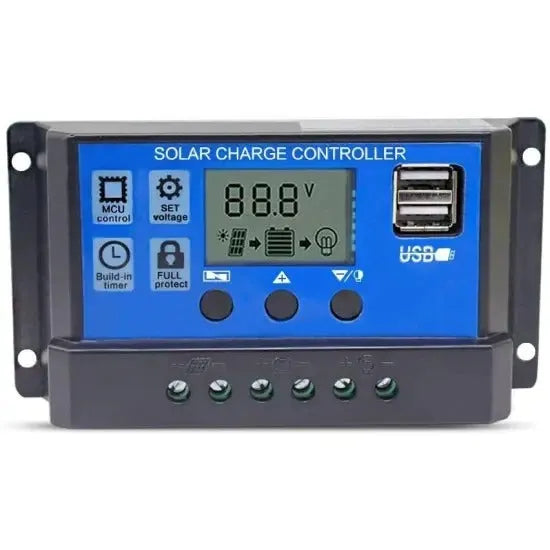

Sunmaxx 10A 12v/24v Solar Charge Controller With 2 USB Port

Dual USB Port:

The solar charge controller with dual USB ports, USB Output: 5V/2A max. 12V/24V auto; Rated Charge & Discharge Current: 10A; Settable operating modes of loads, fully 4-stage PWM charge management.

Solar Battery:

Solar Charge controller is only suitable for lead-acid batteries: OPEN, AGM, and GEL, not for nickel hydride, lithium, Liions, or other batteries. To protect the lifespan of your battery, once the voltage of the battery drops below 8V, the solar controller will turn off automatically

Multiple Electric Protection:

Short-circuit protection,open-circuit protection, reverse protection, overload protection, more safety for use, suitable for home, industrial, commercial etc.

Easy to Install and operate:

Solar controllers can indicate the status and data, they can conveniently switch modes and parameter configurations.

Good Heat Dissipation:

Dual mosfet reverse current protection, low heat production(ALL electronic components generate heat when they are running, it is better to shelter them for better heat dissipation, and avoid direct sunlight exposure or damp places)

Easy to Operate and Installation:

Wiring STEPS: Screw the adjustment screw counter-clockwise until the plates move down. Insert the wire into the new opening between the plate and the "top" of the Terminal hole, not under it. Screw the adjuster clockwise and the plate will move upwards thereby squishing the wire
in the Terminal hole.

Installation STEPS：

 Connect the system in the order of 1. Battery > 2. Load > 3.PV Array following Figure, and disconnect the system in the reverse order 3. 2 .1.
