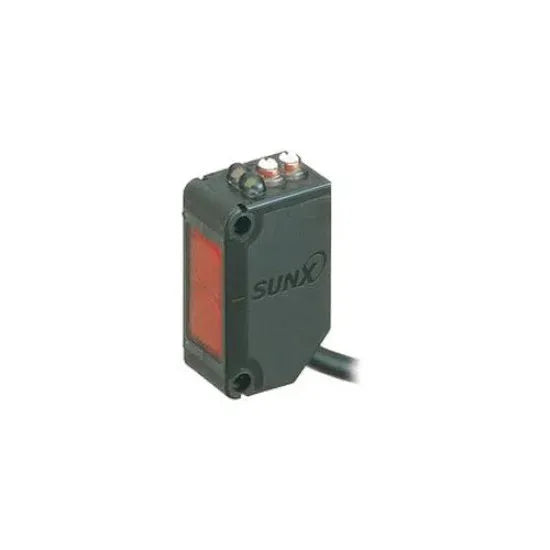

SUNX CX-421P Photo-Electric Sensor Price in Pakistan is Rs.45,360/-. The SUNX CX-421P Photo-Electric Sensor is a compact retro-reflective type sensor with a built-in polarizing filter for highly reliable detection. Designed for precision and stability, it effectively detects objects even on reflective surfaces. With its PNP output, slim housing, and IP67-rated durability, the CX-421P is ideal for use in automated production lines, conveyors, and packaging systems where dependable and fast object sensing is required.
Can sense differences as small as 0.4mm 0.016 inch, with hysteresis of 2% or less
Beam axis alignment made easy with a high luminance spot beam
BGS/FGS functions
Can be used for sensing minute differences
Long sensing range of 5m
Reduction of volume adjustment labour
Retroreflective type with polarizing filters
Strong even in cold environments
Strong on dust and dirt
Stronger noise resistance
Ultra-long sensing range of 30m
Product Specifications
Type
photo-electric sensor
ambient temperature
-25°c to +55°c
control output
100 ma max. at 30v dc
current consumption
= 20 ma
detection distance
up to 2 m (with reflector)
light source
red led (visible light)
output type
pnp open collector
power supply
12–24v dc ±10%
protection rating
ip67
response time
approx. 1 ms
Product Details
SUNX CX-421P Photo-Electric Sensor Price in Pakistan is Rs.45,360/-. The SUNX CX-421P Photo-Electric Sensor is a compact retro-reflective type sensor with a built-in polarizing filter for highly reliable detection. Designed for precision and stability, it effectively detects objects even on reflective surfaces. With its PNP output, slim housing, and IP67-rated durability, the CX-421P is ideal for use in automated production lines, conveyors, and packaging systems where dependable and fast object sensing is required.
