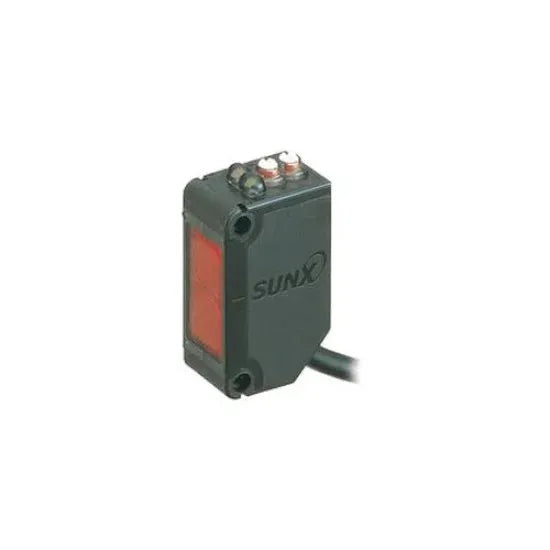

SUNX CX-491P Photo-Electric Sensor Price in Pakistan is Rs.46,440/-. The CX-400 series compact Photoelectric Sensor which achieves reductions in power consumption of up to 60%, averaging 44% reduction when upgrading due to its unique design. This sensor reduce carbon emissions and contribute to environmental friendliness. Electricity consumed by the CX-400 series has been reduced on average 10.5mA. The CX-400 has a high noise resistance then its previous model. By incorporating an inverter countermeasure circuit that appropriately shifts with peak wavelength, the sensor now resists high-frequency noise from high-voltage inverter motors and inverter lights more effectively. Strengthening the output circuit inverse polarity protection prevents sensor damage caused by mistaken output or power supply wiring. This sensor can be used with confidence even around metal processing machine that disperse oil mists. The CX-4...
Can sense differences as small as 0.4mm 0.016 inch, with hysteresis of 2% or less
Beam axis alignment made easy with a high luminance spot beam
BGS/FGS functions
Can be used for sensing minute differences
Long sensing range of 5m
Reduction of volume adjustment labour
Retroreflective type with polarizing filters
Strong even in cold environments
Strong on dust and dirt
Stronger noise resistance
Ultra-long sensing range of 30m
Product Specifications
Type
photo-electric sensor
ambient temperature
-25°c to +55°c
control output
100 ma max. at 30v dc
current consumption
= 20 ma (receiver)
detection distance
up to 10 m (with receiver)
light source
infrared led
output type
pnp open collector
power supply
12–24v dc ±10%
protection rating
ip67
response time
approx. 1 ms
Product Details
SUNX CX-491P Photo-Electric Sensor Price in Pakistan is Rs.46,440/-. The CX-400 series compact Photoelectric Sensor which achieves reductions in power consumption of up to 60%, averaging 44% reduction when upgrading due to its unique design. This sensor reduce carbon emissions and contribute to environmental friendliness. Electricity consumed by the CX-400 series has been reduced on average 10.5mA. The CX-400 has a high noise resistance then its previous model. By incorporating an inverter countermeasure circuit that appropriately shifts with peak wavelength, the sensor now resists high-frequency noise from high-voltage inverter motors and inverter lights more effectively. Strengthening the output circuit inverse polarity protection prevents sensor damage caused by mistaken output or power supply wiring. This sensor can be used with confidence even around metal processing machine that disperse oil mists. The CX-400 series is capable of stably detecting a minute difference of 0.4mm 0.016 inch or 10?m 0.394mil ultra-thin film.
