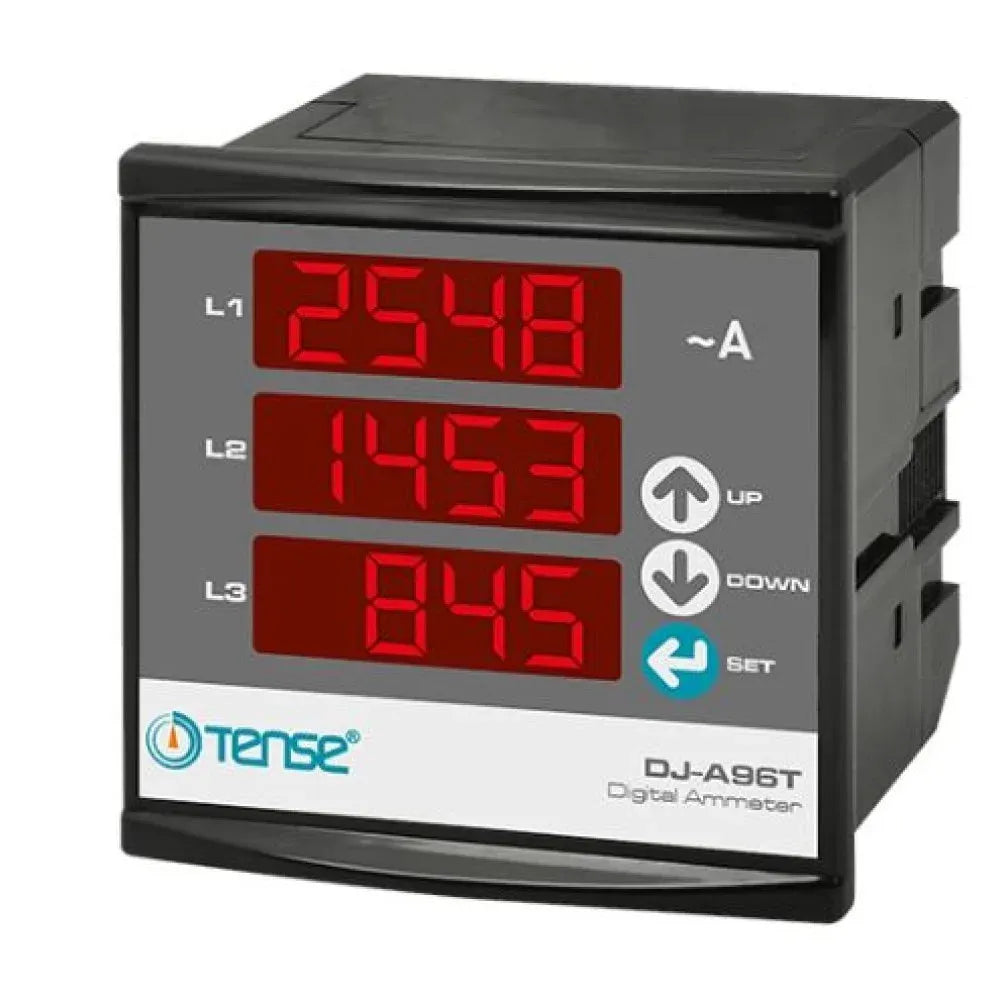

Tense Digital 3-Phase AC Volt & Ampere Meter Price in Pakistan Rs 12,150/-. The Tense DJA-96T is a multifunctional digital panel meter designed to accurately measure both voltage and current in three-phase AC systems. With a bright LED display and compact 96x96 mm panel design, it provides real-time readings of all three phases, making it ideal for monitoring power distribution, switchboards, and industrial control panels. This meter supports CT-based current measurement and is built for reliable operation in demanding electrical environments.
Simultaneous measurement of voltage and current for all 3 phases
Accurate monitoring for industrial and commercial power systems
Bright, easy-to-read LED display
Compatible with 1A or 5A CT inputs
Durable flame-retardant housing for enhanced safety
Ideal for switchboards, distribution panels, and automation setups
Programmable CT ratio for flexible current scaling
Reliable performance in demanding electrical environments
Standard 96x96 mm panel design for smooth installation
Product Specifications
Type
digital ampere meter
model
dja-96t
accuracy
±1%
compliance
iec/en 61010-1, iec/en 61557
ct ratio
programmable (e.g., 5/5a to 5000/5a)
current input
1a or 5a ac (via external ct)
display
4-digit 7-segment led per parameter
enclosure material
flame-retardant abs plastic
frequency
50/60 hz
measurement parameters
3-phase ac voltage (v) and current (a)
mounting
panel mount (96x96 mm cutout)
operating temperature
-10°c to +55°c
power supply
230v ac ±10%
protection class
ip20 (front side)
voltage range
0 – 500v ac (phase-to-phase or phase-to-neutral)
Product Details
Tense Digital 3-Phase AC Volt & Ampere Meter Price in Pakistan Rs 12,150/-. The Tense DJA-96T is a multifunctional digital panel meter designed to accurately measure both voltage and current in three-phase AC systems. With a bright LED display and compact 96x96 mm panel design, it provides real-time readings of all three phases, making it ideal for monitoring power distribution, switchboards, and industrial control panels. This meter supports CT-based current measurement and is built for reliable operation in demanding electrical environments.
